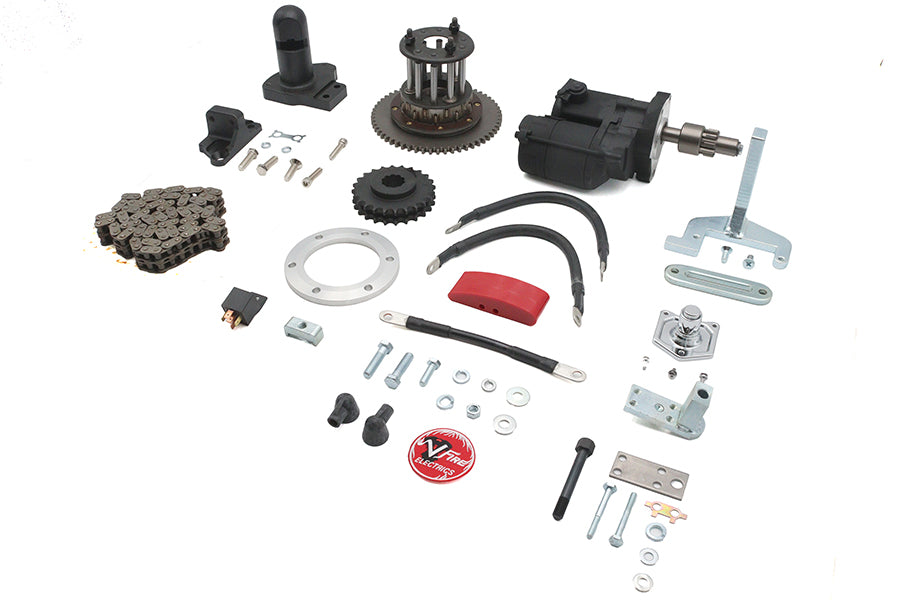

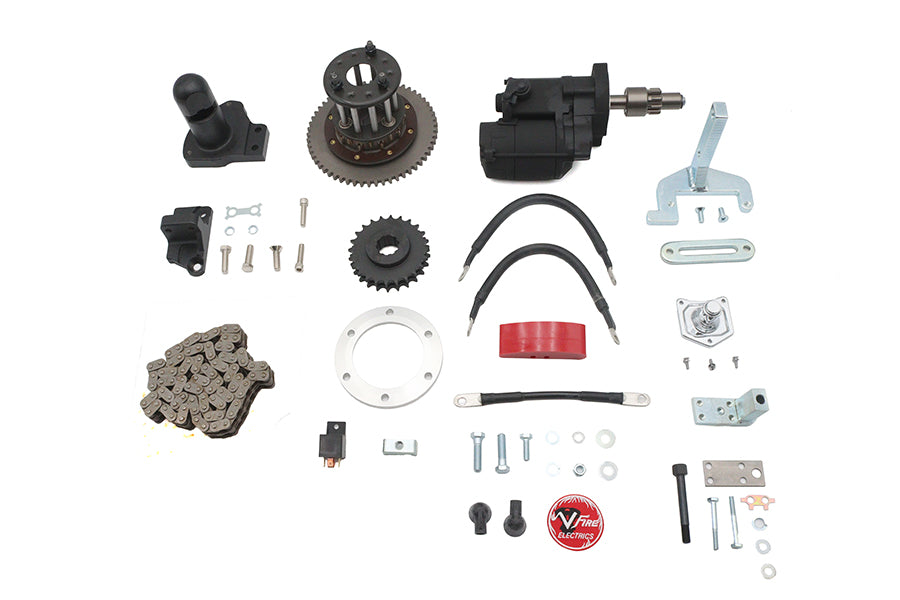

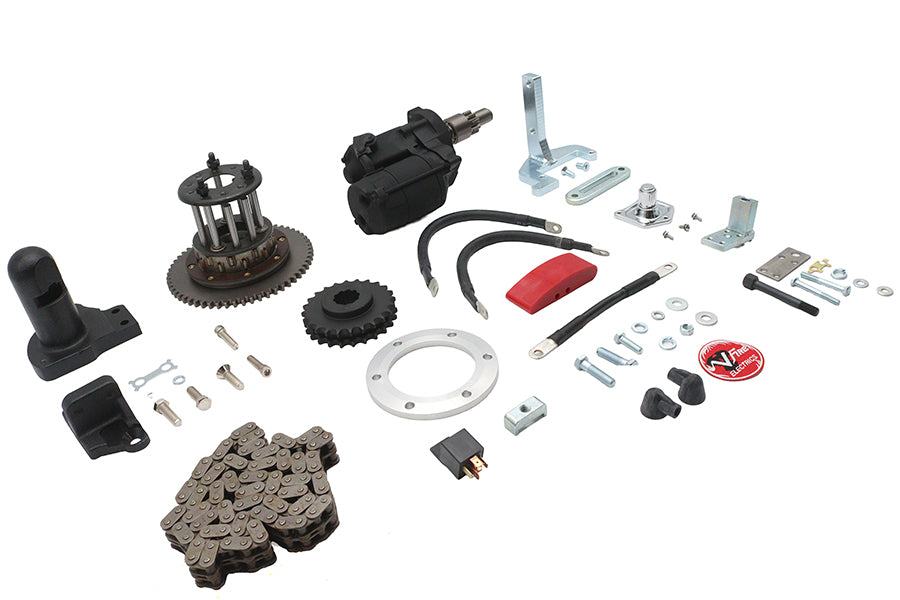

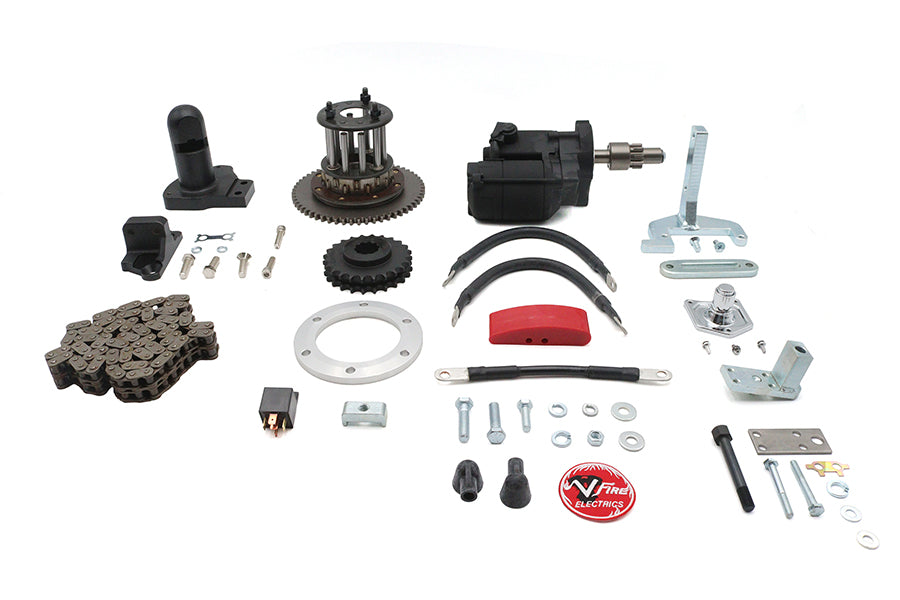

York 32-1503 Electric Starter Kit for 1954-1957 Harley-Davidson FL

York electric start kit is designed exclusively for rigid frame 4 speed models with a splined motor shaft in a generator type motor Knucklehead Flathead Panhead or Shovelhead model.

The York 32-1503 Electric Starter Kit is designed for 1954, 1955, 1956, and 1957 Harley-Davidson FL applications. The kit uses a starter motor mounted to a cast steel housing attached to the transmission mount plate, allowing the starter to drive the starter ring gear on the rear of the clutch hub. A 9-tooth pinion gear is used on the starter drive, and the motor sprocket is offset 1/2 inch for this installation arrangement.

Installation requires a shorter oil tank and includes an oil tank base plate to provide clearance for the starter motor. The original wrap-around oil tank may also be modified by removing the rear bracket and rewelding it in a raised position. The rear fender and tin inner primary require modification for installation. York recommends using the applicable short oil tank and inner primary for the application. A 84-link primary chain is included because the chain tensioner assembly requires the longer chain.

The primary chain tensioner mounts to the two rear motor-mount bolts for a secure installation. The kit includes a splined motor sprocket and spacer. The required battery is an Anti Gravity 12 Volt 16 Cell battery, and the starter spring retainer washer is available separately. Suggested related items include the 32-1508 Starter Shaft Housing, 32-1568 Transmission and Starter Mount Kit Black, 32-1507 12 Volt Starter Assembly, and 18-0781 Big Twin Clutch Hub with Ring Gear.

Features:

• Application: Fits 1954, 1955, 1956, and 1957 Harley-Davidson FL models
• Starter Mounting: Cast steel starter housing mounts to the transmission mount plate
• Drive Arrangement: Starter drives the ring gear on the rear of the clutch hub
• Pinion Gear: 9-tooth pinion gear on the starter drive
• Oil Tank Clearance: Requires a shorter oil tank and includes an oil tank base plate
• Primary Chain: Includes an 84-link primary chain
• Chain Tensioner: Mounts to the two rear motor-mount bolts
• Sprocket Components: Includes a splined motor sprocket and spacer
• Battery Requirement: Requires an Anti Gravity 12 Volt 16 Cell battery
• Installation Requirements: Rear fender and tin inner primary require modification
• Additional Note: Starter spring retainer washer is available separately
• Unit of Measure: Kit
• Country of Origin: Taiwan

Fitment:
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
