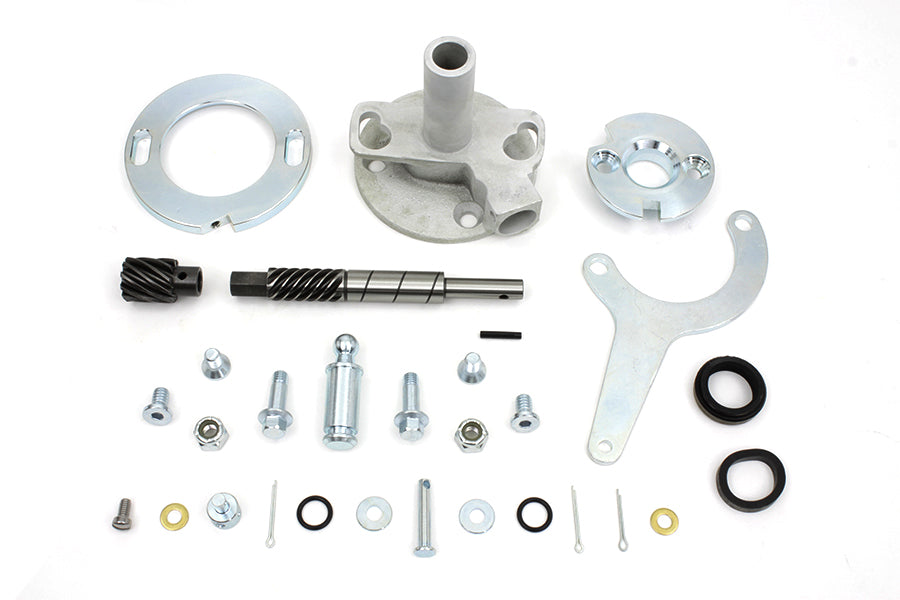

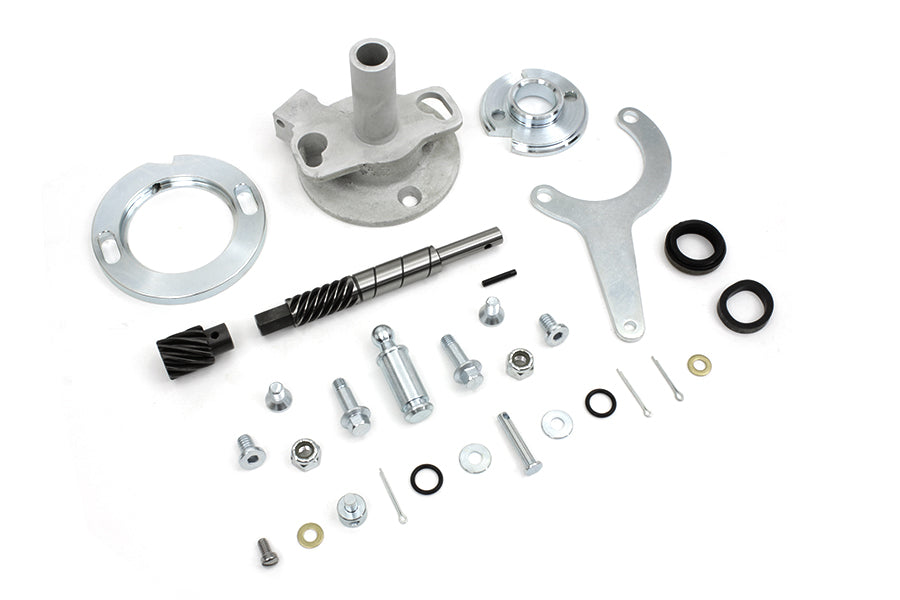

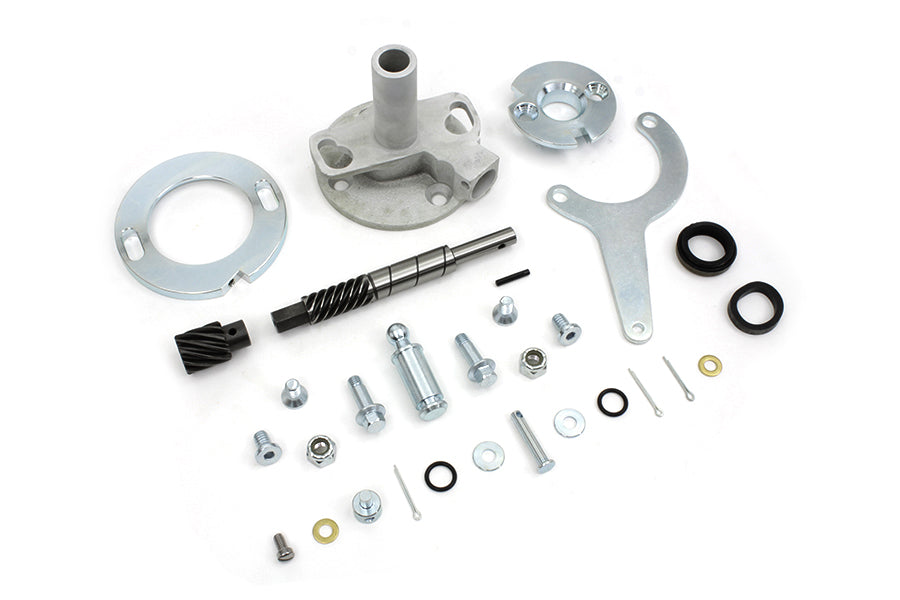

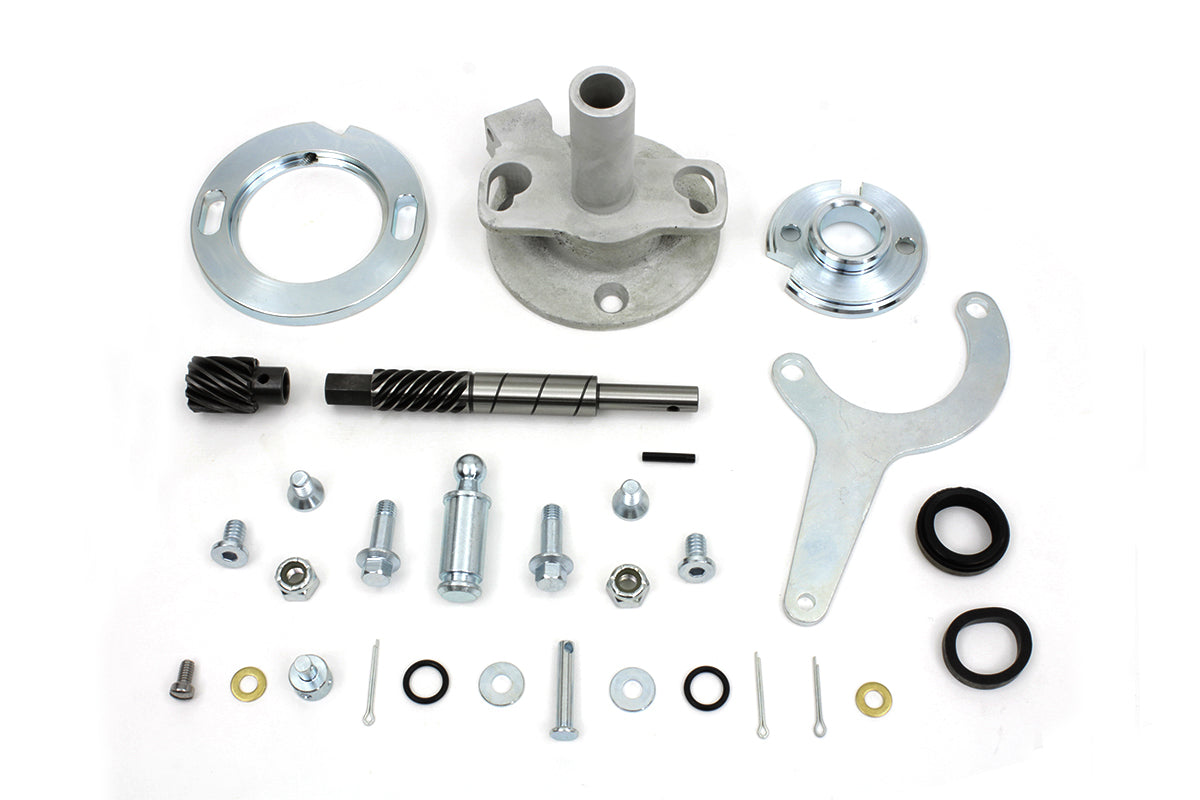

Volt Tech 32-1345 Magneto Base and Drive Kit

Magneto cast base shaft gear and advance mechanism plate assembly with arm. This features an adjustable base with lever.

The Volt Tech 32-1345 Magneto Base and Drive Kit is designed to accept standard Harley-style Fairbanks Morse or Joe Hunt magnetos. The shaft is driven by the existing gear, and the base accepts the #36-0514 tachometer drive gear, #36-0513 cable, and #32-1298 Magneto Assembly.

An integrated arm allows for manual cable advance, while the shaft features a spiral cut for magneto gear installation. The magneto head is ordered separately. Volt Tech suggests using this kit with the #36-0514 Magneto Tachometer Cable Driven Gear and #36-0514 Black Magneto Tachometer Cable.

The Volt Tech 32-1345 kit fits 1957–1966 Harley-Davidson XLH applications, including model years 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, and 1966.

Features:

• Application: Accepts standard Harley-style Fairbanks Morse or Joe Hunt magnetos.
• Drive: Shaft is driven by the existing gear.
• Compatibility: Base accepts the #36-0514 tachometer drive gear, #36-0513 cable, and #32-1298 Magneto Assembly.
• Advance Control: Arm allows for manual cable advance.
• Gear Installation: Shaft has a spiral cut for magneto gear installation.
• Fitment: Fits 1957–1966 Harley-Davidson XLH applications.
• Ordering Note: Magneto head is ordered separately.
• Suggested Use: Recommended with the #36-0514 Magneto Tachometer Cable Driven Gear and #36-0514 Black Magneto Tachometer Cable.

Fitment:
Harley Davidson XL 1965
Harley Davidson XL 1966
Harley Davidson XL 1967
Harley Davidson XL 1968
Harley Davidson XL 1969
Harley Davidson XL 1970
Harley Davidson XLCH 1965
Harley Davidson XLCH 1966
Harley Davidson XLCH 1967
Harley Davidson XLCH 1968
Harley Davidson XLCH 1969
Harley Davidson XLCH 1970
Harley Davidson XLH 1957
Harley Davidson XLH 1958
Harley Davidson XLH 1959
Harley Davidson XLH 1960
Harley Davidson XLH 1961
Harley Davidson XLH 1962
Harley Davidson XLH 1963
Harley Davidson XLH 1964
Harley Davidson XLH 1965
Harley Davidson XLH 1966
Harley Davidson XLH 1967
Harley Davidson XLH 1968
Harley Davidson XLH 1969
Harley Davidson XLH 1970
