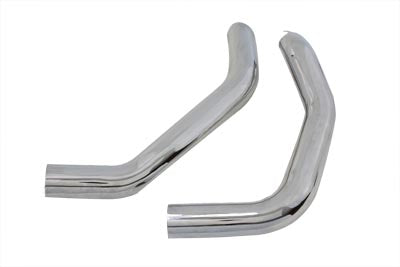

V-Twin 77244 Drag Exhaust Pipe Heat Shield Set

Chrome Heat shield set for 1-3/4 inch drag pipes.

The V-Twin 77244 Drag Exhaust Pipe Heat Shield Set includes two heat shields for compatible 2004–2013 Harley-Davidson XL applications. This set is designed for use with drag-style exhaust pipe configurations and provides coverage along the front and rear sections of the exhaust system.

The front heat shield measures 7 inches from the top to the first bend, 7 inches from the first bend to the second bend, and 8-1/4 inches from the second bend to the end. The rear heat shield measures 5 inches from the top to the first bend, 9 inches from the first bend to the second bend, and 5-1/8 inches from the second bend to the end.

Clamps are not included and must be ordered separately. V-Twin suggests using this set with the #30-0256 Exhaust Pipe Heat Shield Worm Clamp Set. The V-Twin 77244 heat shield set has an OEM cross-reference of 64847-04 and 64846-04.

Features:

• Set Quantity: Includes two exhaust pipe heat shields.
• Application: Fits 2004–2013 Harley-Davidson XL models.
• Front Heat Shield: Measures 7 inches to the first bend, 7 inches to the second bend, and 8-1/4 inches to the end.
• Rear Heat Shield: Measures 5 inches to the first bend, 9 inches to the second bend, and 5-1/8 inches to the end.
• Clamps: Order clamps separately.
• Suggested Accessory: V-Twin #30-0256 Exhaust Pipe Heat Shield Worm Clamp Set.
• OEM Cross Reference: 64847-04 and 64846-04.

Fitment:
Harley Davidson XL 2004
Harley Davidson XL 2005
Harley Davidson XL 2006
Harley Davidson XL 2007
Harley Davidson XL 2008
Harley Davidson XL 2009
Harley Davidson XL 2010
Harley Davidson XL 2011
Harley Davidson XL 2012
Harley Davidson XL 2013
