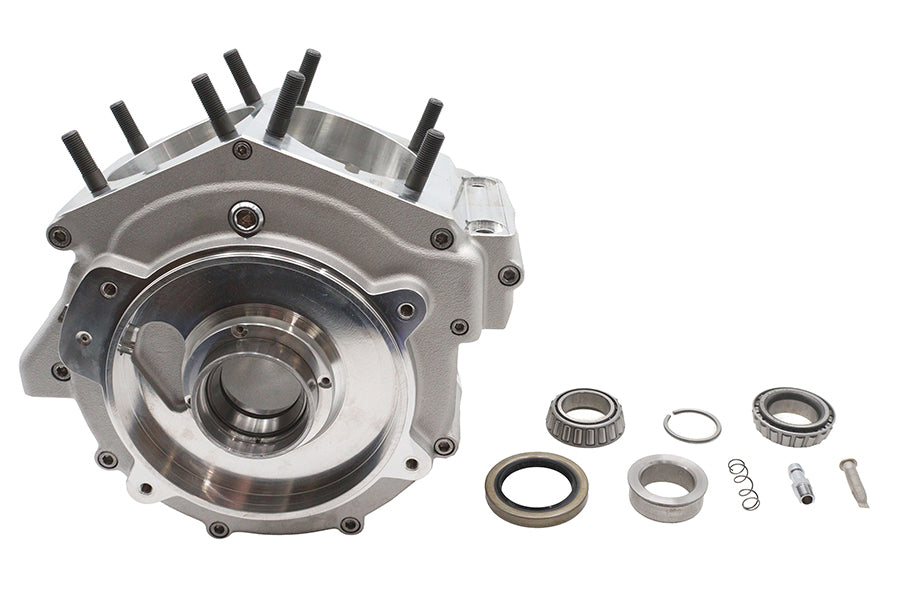

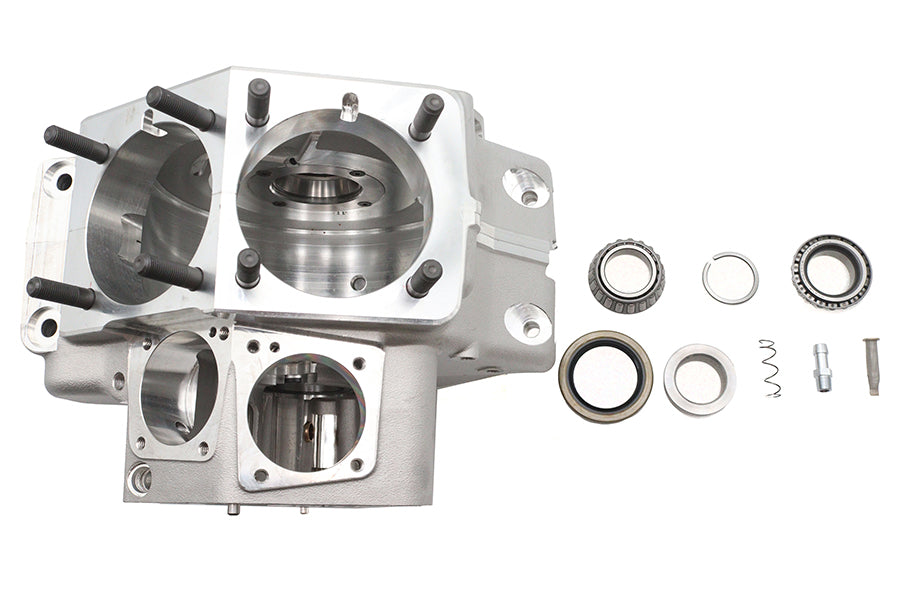

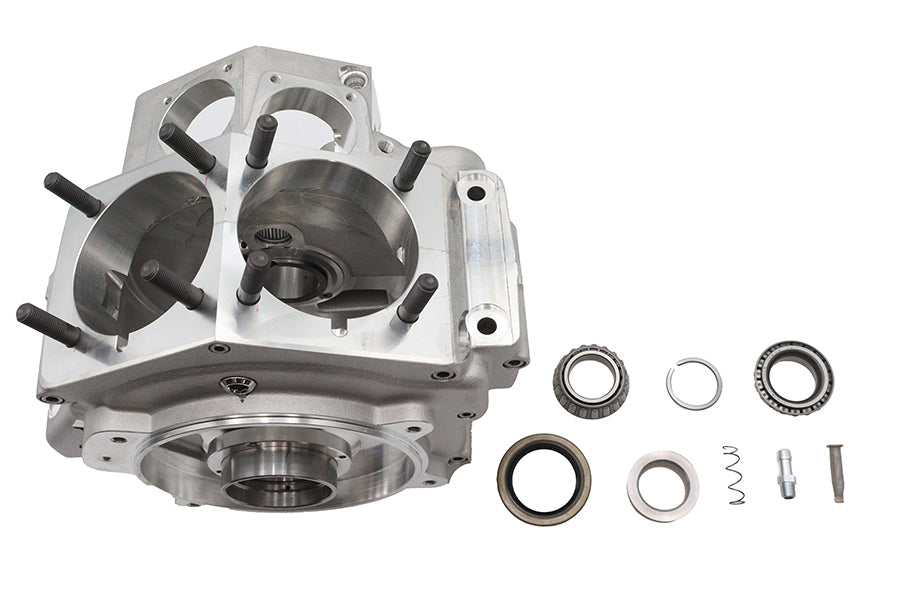

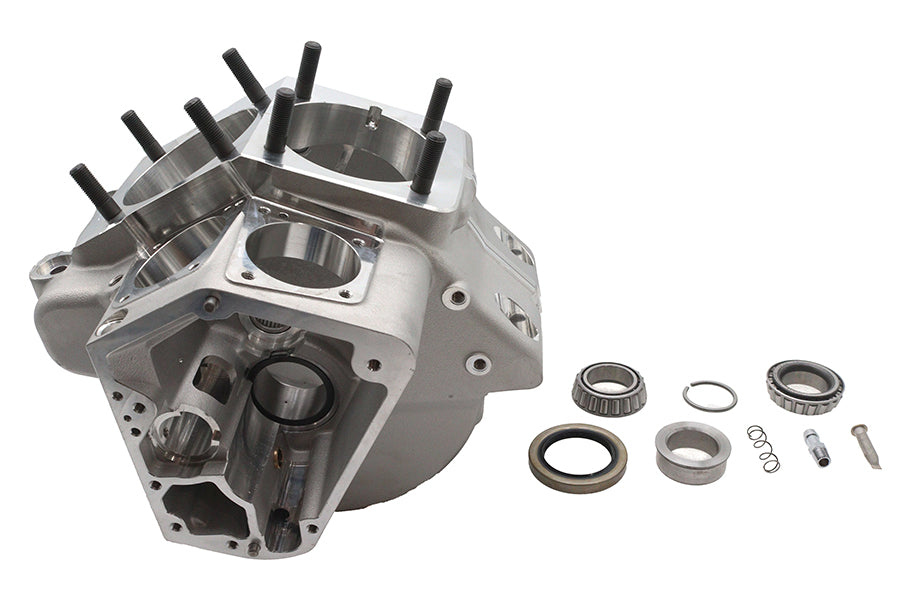

Ultima 206-21 Shovelhead Engine Case Set, Natural

Shovelhead Ultima engine case set features a natural finish and a 5 piece flywheel design. Engine case features large bore breather for increased crank case vacuum and less blow by.

The Ultima 206-21 Shovelhead Engine Case Set is designed with a 3.625-inch bore case and a five-piece wheel design. The pinion race is sized to 1.751 inches and uses the white pinion bearing. This 96-inch big-bore case is intended for use with a 1992-and-up oil pump.

The set includes main bearings, installed chromoly cylinder studs, a main seal spacer, chrome timing hole plug, case counterbores for socket head bolts, stainless socket head case bolts, alignment dowels for a true line bore, a top-end feed screen with spring, and an oil pressure gauge. The Ultima 206-21 is supplied as a natural-finish engine case set.

Features:

• Brand and Part Number: Ultima 206-21
• Product Type: Shovelhead engine case set
• Finish: Natural
• Wheel Design: Five-piece wheel design
• Pinion Race: Sized to 1.751 inches and uses the white pinion bearing
• Bore: 3.625-inch bore case
• Oil Pump Application: 96-inch big-bore case uses a 1992-and-up oil pump
• Included Components: Main bearings, installed chromoly cylinder studs, main seal spacer, chrome timing hole plug, case counterbores for socket head bolts, stainless socket head case bolts, alignment dowels, top-end feed screen with spring, and oil pressure gauge

Fitment:
Harley Davidson FL 1970
Harley Davidson FL 1971
Harley Davidson FL 1972
Harley Davidson FL 1973
Harley Davidson FL 1974
Harley Davidson FL 1975
Harley Davidson FL 1976
Harley Davidson FL 1977
Harley Davidson FL 1978
Harley Davidson FL 1979
Harley Davidson FL 1980
Harley Davidson FL 1981
Harley Davidson FL 1982
Harley Davidson FL 1983
Harley Davidson FL 1984
Harley Davidson Fx 1970
Harley Davidson Fx 1971
Harley Davidson Fx 1972
Harley Davidson Fx 1973
Harley Davidson Fx 1974
Harley Davidson Fx 1975
Harley Davidson Fx 1976
Harley Davidson Fx 1977
Harley Davidson Fx 1978
Harley Davidson Fx 1979
Harley Davidson Fx 1980
Harley Davidson Fx 1981
Harley Davidson Fx 1982
Harley Davidson Fx 1983
Harley Davidson Fx 1984
