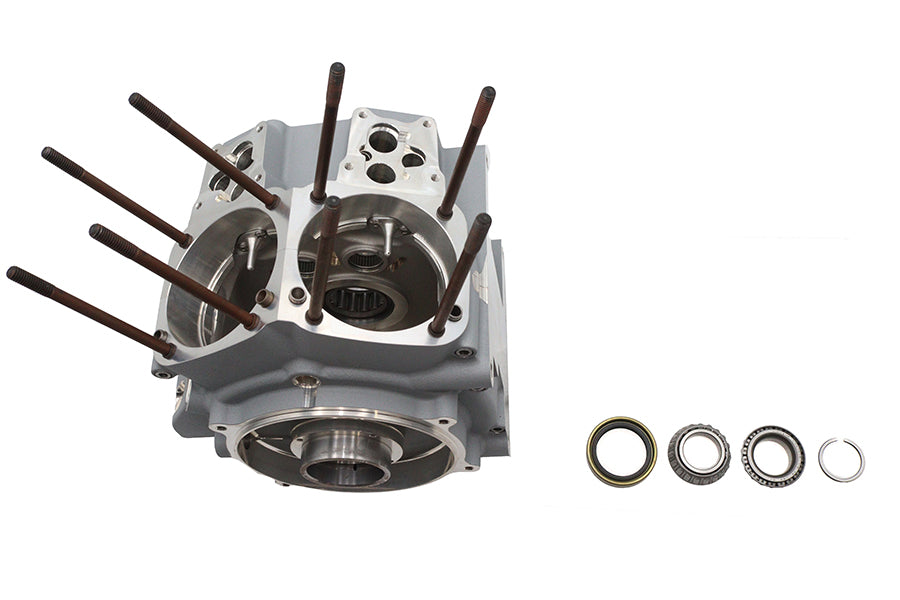

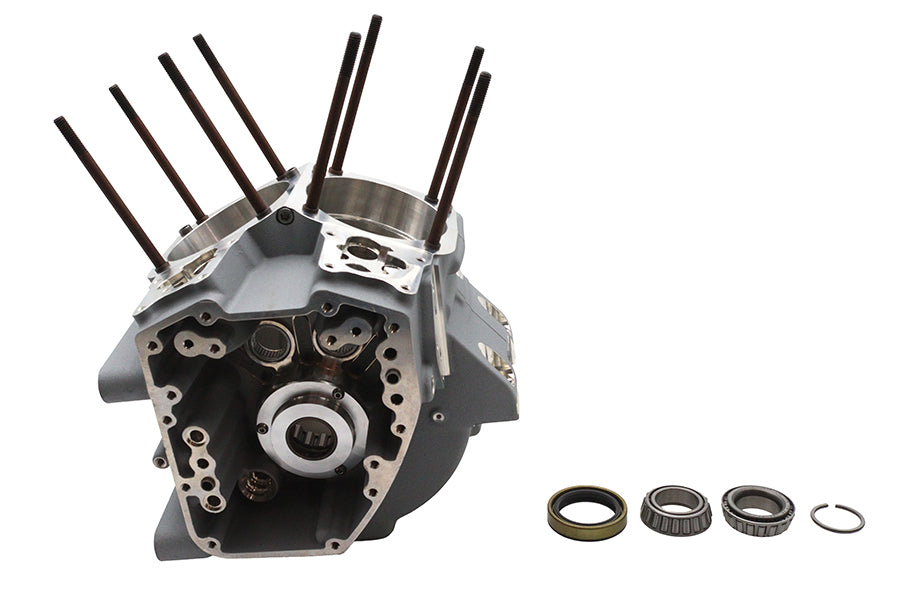

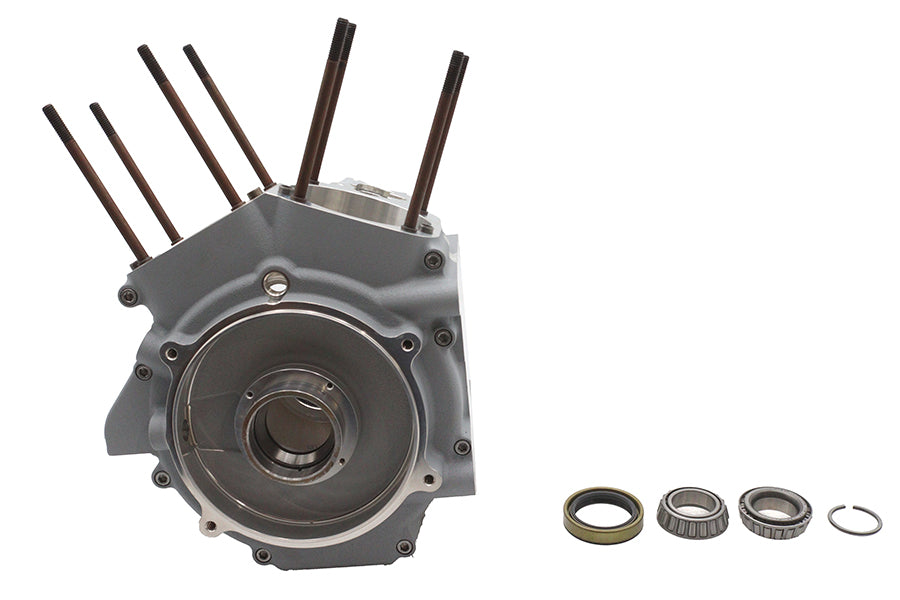

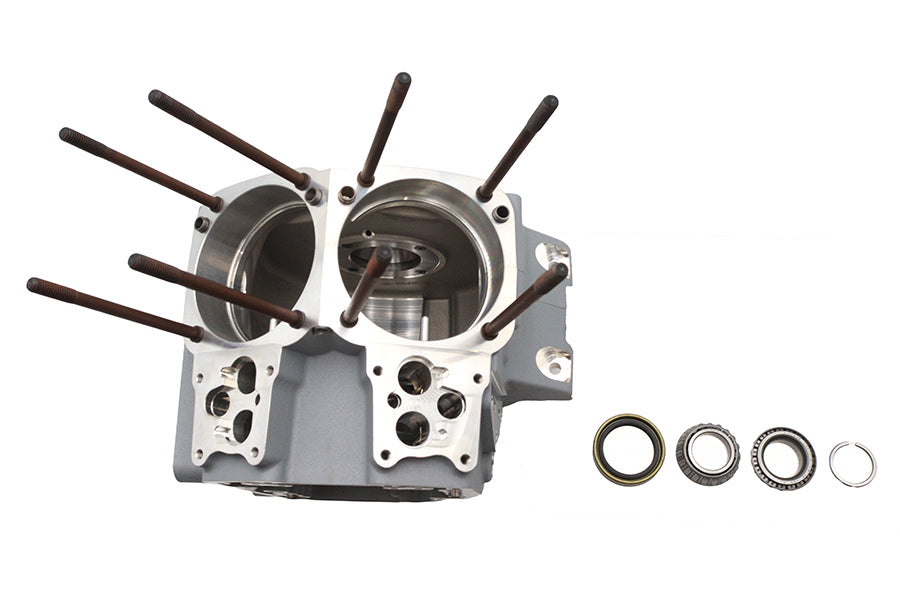

Ultima 206-109 Twin Cam Engine Case Set, Silver

Ultima Twin Cam engine case set features a silver finish with a 4.125 bore 4.320 spigot and 124 C.I. Equiped with sprocket shaft bearing (OEM 9028) late model pinion bearing (OEM 24605-07) and large cam bearing (OEM 9215).

The Ultima 206-109 Twin Cam Engine Case Set is cast from prime A360-T6 aluminum for excellent tappet bore wear resistance. This silver engine case set is designed for engine assembly and includes components intended to support accurate case alignment and secure installation.

The set includes main bearings, full-complement cam bearings, installed chromoly cylinder studs, a main seal, a chrome timing hole plug, case counterbores for socket head bolts, stainless socket head case bolts, and alignment dowels for a true line bore. The supplied components provide key hardware and bearing elements for the case assembly.

Use the Ultima 206-109 as specified for the associated engine application. Accessory items include the 10-0317 Cam Chest Assembly Kit Panhead, 10-1175 Panhead Cylinder Heads with Valves, 11-0480 Rocker Arm Kit, and 10-0954 Panhead Engine Case Set.

Features:

• Construction: Cast from prime A360-T6 aluminum
• Finish: Silver
• Bearings: Includes main bearings and full-complement cam bearings
• Cylinder Studs: Includes installed chromoly cylinder studs
• Sealing: Includes a main seal and chrome timing hole plug
• Case Hardware: Includes stainless socket head case bolts and case counterbores for socket head bolts
• Alignment: Includes alignment dowels for a true line bore
• Unit of Measure: Set
• Accessory Items: 10-0317 - Cam Chest Assembly Kit Panhead, 10-1175 - Panhead Cylinder Heads with Valves, 11-0480 - Rocker Arm Kit, 10-0954 - Panhead Engine Case Set

Fitment:
Harley Davidson FL 1999
Harley Davidson FL 2000
Harley Davidson FL 2001
Harley Davidson FL 2002
Harley Davidson FL 2003
Harley Davidson FL 2004
Harley Davidson FL 2005
Harley Davidson FL 2006
Harley Davidson FLST 1999
Harley Davidson FLST 2000
Harley Davidson FLST 2001
Harley Davidson FLST 2002
Harley Davidson FLST 2003
Harley Davidson FLST 2004
Harley Davidson FLST 2005
Harley Davidson FLST 2006
Harley Davidson FLT 1999
Harley Davidson FLT 2000
Harley Davidson FLT 2001
Harley Davidson FLT 2002
Harley Davidson FLT 2003
Harley Davidson FLT 2004
Harley Davidson FLT 2005
Harley Davidson FLT 2006
Harley Davidson FXD 1999
Harley Davidson FXD 2000
Harley Davidson FXD 2001
Harley Davidson FXD 2002
Harley Davidson FXD 2003
Harley Davidson FXD 2004
Harley Davidson FXD 2005
Harley Davidson FXD 2006
Harley Davidson FXST 1999
Harley Davidson FXST 2000
Harley Davidson FXST 2001
Harley Davidson FXST 2002
Harley Davidson FXST 2003
Harley Davidson FXST 2004
Harley Davidson FXST 2005
Harley Davidson FXST 2006
