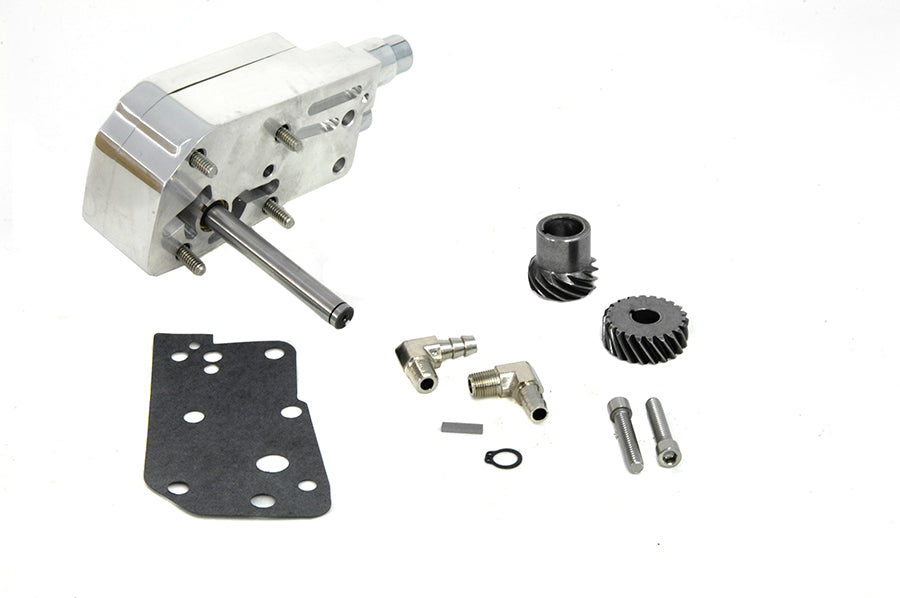

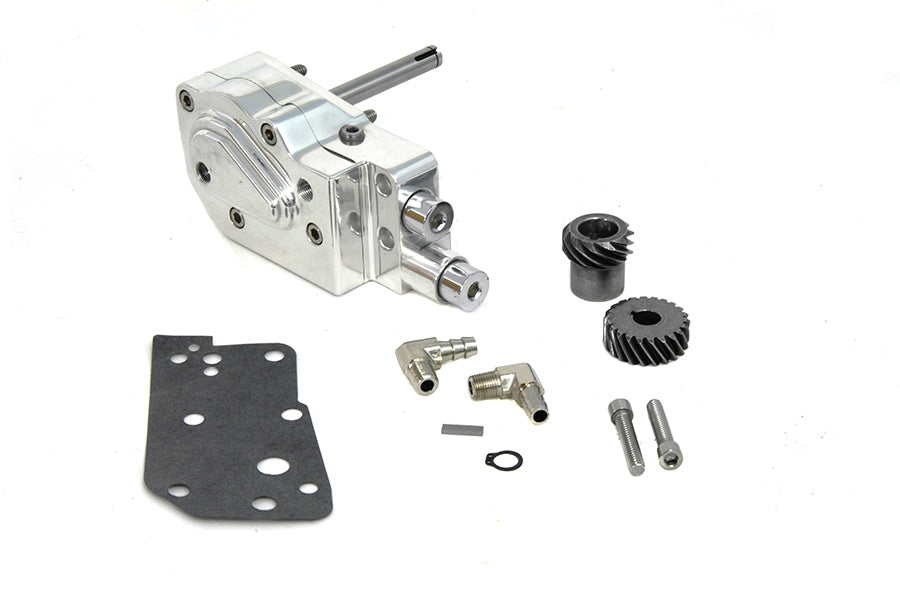

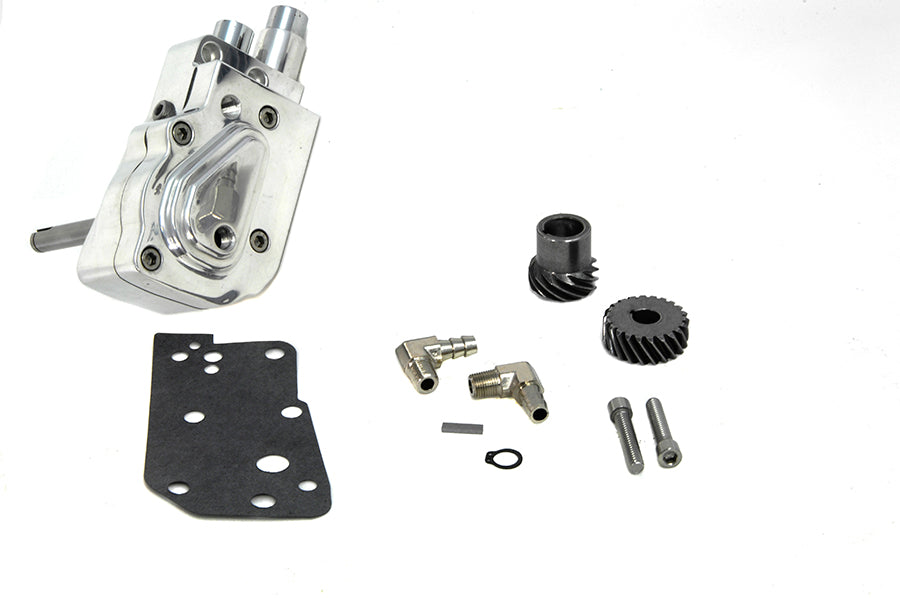

Sifton 301507 High-Performance Gerotor Oil Pump

Sifton oil pump features gerotor compact cad-cam design billet aluminum construction superior scavenging and increased feed flow rate which eliminates wet-sumping in crankcase.

The Sifton 301507 high-performance gerotor oil pump uses inner and outer rotors instead of conventional gears to provide increased oil flow for V-Twin engines. It supplies more than 150% of the oil volume on the pressure side and delivers an increase of up to 450% on the return side compared with conventional gear-style pumps.

The pump produces 100 PSI when cold, is regulated to 23 PSI at 3,000 RPM, and provides 12 PSI at idle at 1,100 RPM. Its gerotor design is intended to maintain oil delivery from idle through 14,000 RPM and help reduce oil starvation associated with conventional or stock oil pumps under hot, high-speed operating conditions.

Machined from 6061 T651 billet aluminum, the Sifton 301507 is individually inspected and polished. The return outlet is positioned on top and the feed is on the bottom. Hardware, a gasket, and fittings for the rubber hose are included. The gasket and fittings are specified for the rubber hose only.

Features:

• Gerotor Design: Uses inner and outer rotors instead of conventional gears.
• Increased Oil Supply: Oil supply rate is 1.6 times greater than the OE rate.
• Enhanced Oil Return: Oil return rate is 4.5 times greater than the OE rate.
• Oil Pressure: Produces 100 PSI when cold, 23 PSI at 3,000 RPM, and 12 PSI at idle at 1,100 RPM.
• High-Speed Oil Delivery: Designed to supply increased oil volume from idle up to 14,000 RPM.
• Construction: Machined from 6061 T651 billet aluminum.
• Port Orientation: Return outlet is on top and feed is on the bottom.
• Included Hardware: Includes hardware, gasket, and fittings for the rubber hose only.
• Shaft Diameter: 0.0425 inches.
• Accessory Items: 12-0901 - Oil Pump Snap Rings, 16-9724 - Oil Pressure Sender Unit Wrench Tool, 16-0889 - Oil Pump Snap Ring Installer, 16-0875 - Tappet Oil Screen Plug Tool for 1970-1999 Big Twin

Fitment:
Harley Davidson FLST 1992
Harley Davidson FLST 1993
Harley Davidson FLST 1994
Harley Davidson FLST 1995
Harley Davidson FLST 1996
Harley Davidson FLST 1997
Harley Davidson FLST 1998
Harley Davidson FLT 1992
Harley Davidson FLT 1993
Harley Davidson FLT 1994
Harley Davidson FLT 1995
Harley Davidson FLT 1996
Harley Davidson FLT 1997
Harley Davidson FLT 1998
Harley Davidson FXD 1992
Harley Davidson FXD 1993
Harley Davidson FXD 1994
Harley Davidson FXD 1995
Harley Davidson FXD 1996
Harley Davidson FXD 1997
Harley Davidson FXD 1998
Harley Davidson FXR 1992
Harley Davidson FXR 1993
Harley Davidson FXR 1994
Harley Davidson FXST 1992
Harley Davidson FXST 1993
Harley Davidson FXST 1994
Harley Davidson FXST 1995
Harley Davidson FXST 1996
Harley Davidson FXST 1997
Harley Davidson FXST 1998
