S&S Cycle 31-0005 Stock Bore Engine Crankcase Set

Crankcase set for V2 type engines comes ready to assemble.

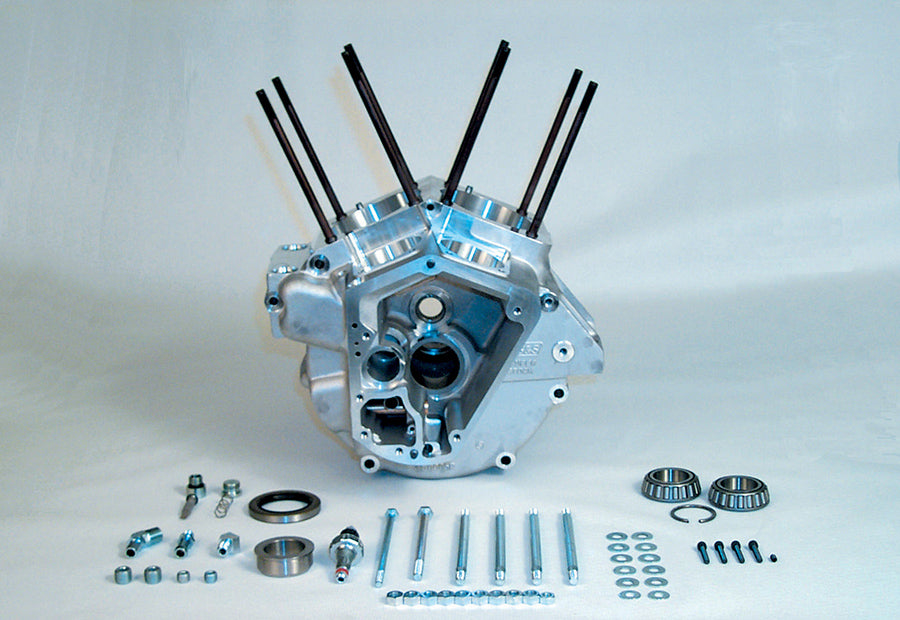

The S&S Cycle 31-0005 Stock Bore Engine Crankcase Set is a ready-to-assemble crankcase solution featuring a stock bore and flywheel capacity up to 8-1/2 inches in diameter. The set includes a Timken left-side bearing race assembly, seal, seal spacer, oil pump drive bushing, needle bearing, and a pressed-in, line-honed right-side pinion race.

Included components also consist of cylinder studs, nickel-plated case bolts, crankcase fittings, a timing plug, and a magnetic drain plug. The flywheel accepts an early-model crank pin, and the rod set can be fitted with an early pin when required for installation. A Manufacturer's Statement of Origin is supplied.

For related assembly planning, S&S Cycle suggests using the 31-0005 with the #12-8002 Oil Pump Assembly and #10-0272 Connecting Rod Assembly H-Beam. Accessory items include the Jims Crank Assembly Removal Tool, TC-88A Engine Stand Tool, and Snap Ring Remover Tool. The set is listed with a UOM of SET and a country of origin of USA.

Features:

• Stock bore crankcase designed to accept flywheels up to 8-1/2 inches in diameter
• Includes Timken left-side bearing race assembly, seal, seal spacer, oil pump drive bushing, and needle bearing
• Right-side pinion race is pressed in and line honed
• Includes cylinder studs, nickel-plated case bolts, crankcase fittings, timing plug, and magnetic drain plug
• Flywheel accepts an early-model crank pin
• Manufacturer's Statement of Origin is supplied
• Suggested for use with #12-8002 Oil Pump Assembly and #10-0272 Connecting Rod Assembly H-Beam
• UOM: SET
• Country of Origin: USA

Fitment:
Harley Davidson FLST 1992
Harley Davidson FLST 1993
Harley Davidson FLST 1994
Harley Davidson FLST 1995
Harley Davidson FLST 1996
Harley Davidson FLST 1997
Harley Davidson FLST 1998
Harley Davidson FLT 1992
Harley Davidson FLT 1993
Harley Davidson FLT 1994
Harley Davidson FLT 1995
Harley Davidson FLT 1996
Harley Davidson FLT 1997
Harley Davidson FLT 1998
Harley Davidson FXD 1992
Harley Davidson FXD 1993
Harley Davidson FXD 1994
Harley Davidson FXD 1995
Harley Davidson FXD 1996
Harley Davidson FXD 1997
Harley Davidson FXD 1998
Harley Davidson FXR 1992
Harley Davidson FXR 1993
Harley Davidson FXR 1994
Harley Davidson FXST 1992
Harley Davidson FXST 1993
Harley Davidson FXST 1994
Harley Davidson FXST 1995
Harley Davidson FXST 1996
Harley Davidson FXST 1997
Harley Davidson FXST 1998
