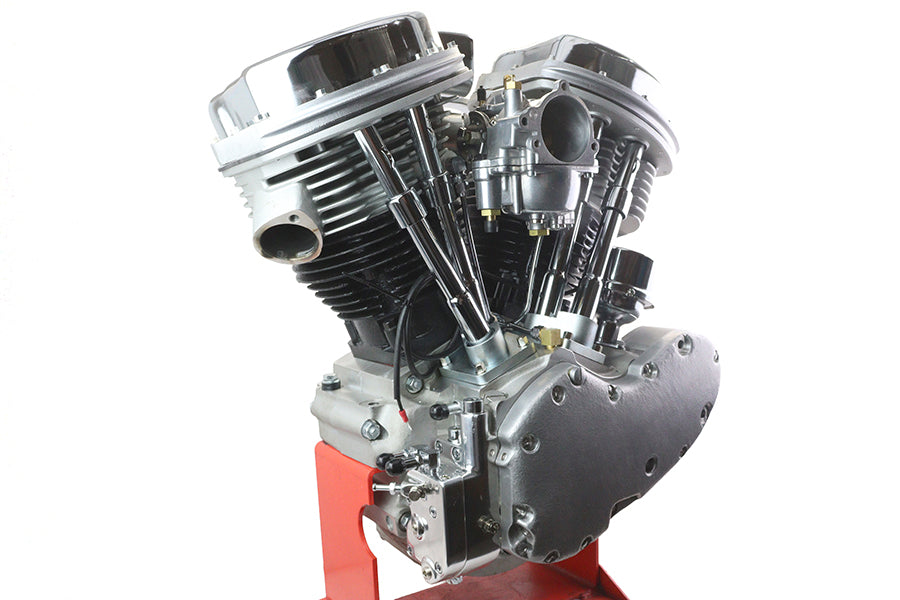

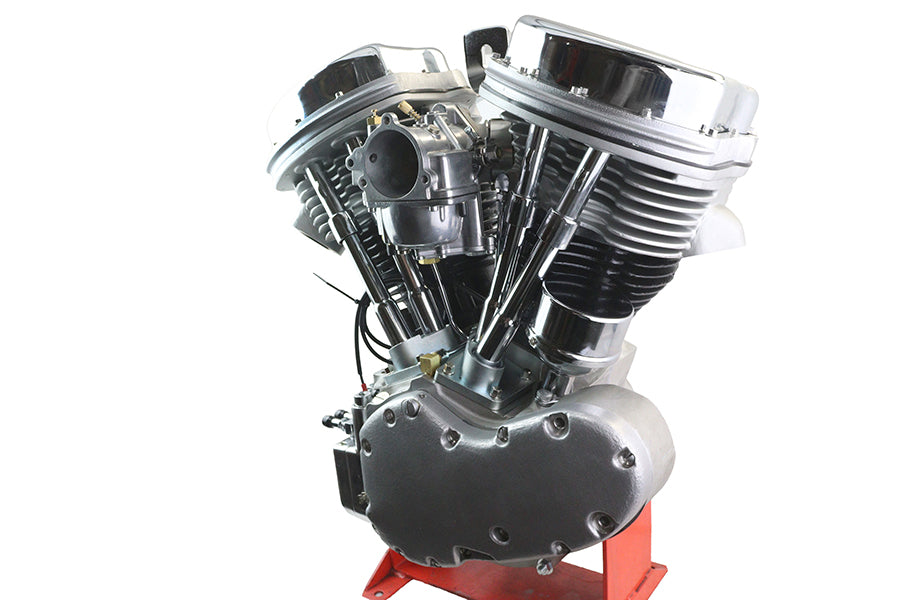

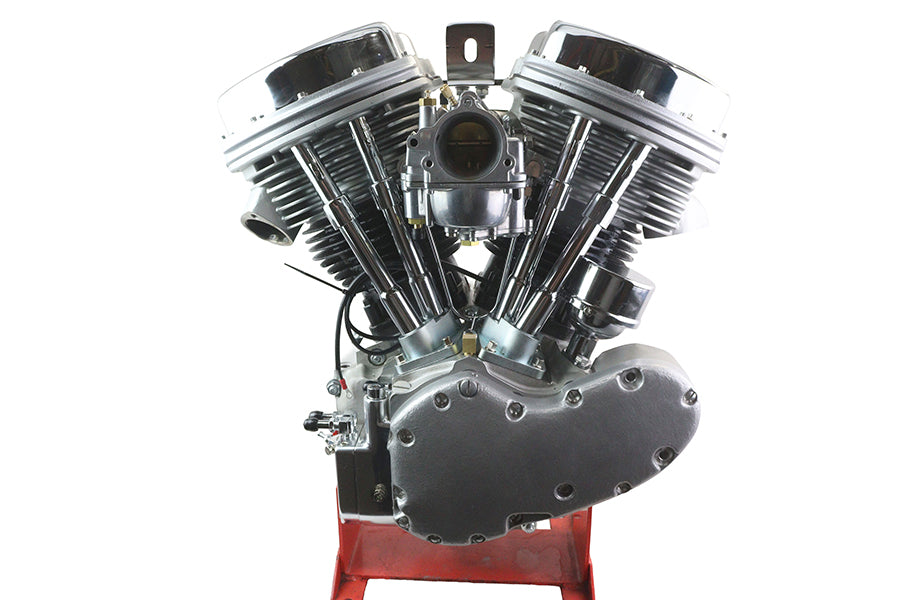

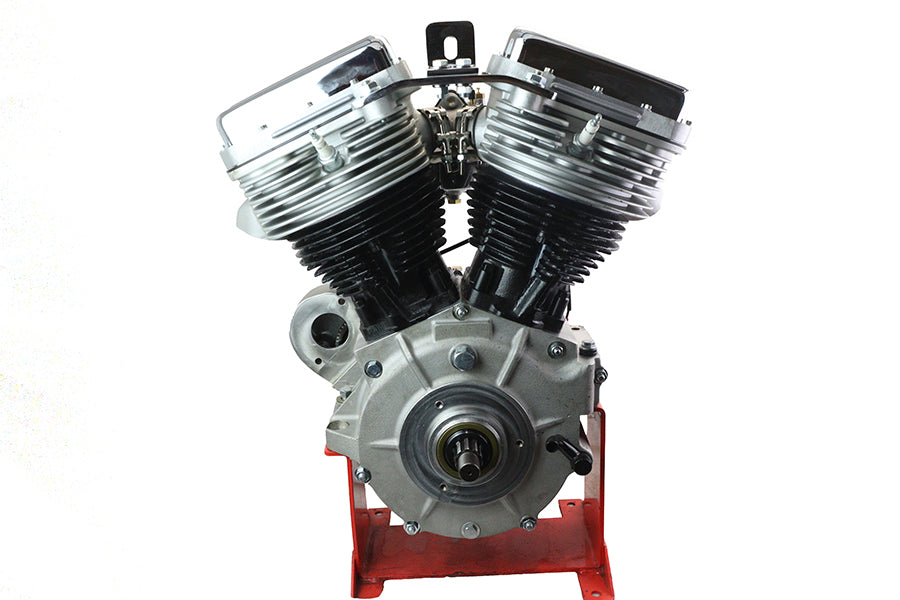

Motorshop Bastardo Panhead Engine Assembly 88 Inch, SKU 10-2449

Bastardo engine assembly is fitted with Shovelhead 3-5/8 inch cylinders with 4-1/4 inch stroke combined to create an 88 cubic inch engine. OKO shorty carburetor is installed and tuned. Dyna tested for oil pressure.

The Motorshop Bastardo Panhead Engine Assembly 88 Inch, SKU 10-2449, combines Panhead styling with Shovelhead power features. It uses Shovelhead intake and exhaust valves, while the exhaust ports are designed for single-bolt Shovelhead flanged headers. Redesigned intake ports accept a Shovelhead O-ring intake manifold, helping the engine breathe and run like a Shovelhead.

This kit includes a carburetor and is supplied with the Manufacturer's Statement of Origin. The assembly features a front saddle for a 3-brush generator strap and accepts the Shovelhead OHO line to the heads. The 3-brush generator saddle may be removed for a 2-brush generator installation.

Case cylinder ports measure 3.875 inches and are machined to fit 3-5/8-inch cylinders. The set does not accept a cast inner cover for 1965-1969 FL models. The Motorshop Bastardo Panhead Engine Assembly is supplied as a kit and has a country of origin listed as the USA.

Features:

• Engine Configuration: Panhead engine assembly with Shovelhead power features
• Valve Design: Uses Shovelhead intake and exhaust valves
• Exhaust Ports: Shovelhead-style ports accept single-bolt Shovelhead flanged headers
• Intake Ports: Redesigned to accept a Shovelhead O-ring intake manifold
• Carburetor: Included
• Documentation: Manufacturer's Statement of Origin supplied
• Generator Saddle: Front saddle supports a 3-brush generator strap and may be removed for 2-brush generator installation
• Head Oil Line: Accepts Shovelhead OHO line to the heads
• Cylinder Ports: 3.875-inch case cylinder ports machined to fit 3-5/8-inch cylinders
• Fitment Note: Set does not accept a cast inner cover for 1965-1969 FL models
• Accessory Items: 10-2115 - Ultima Bastardo Panhead Engine Assembly 88 inch, 10-1622 - Bastardo Panhead 88 inch Short Block, 10-2450 - Bastardo Shovelhead Engine Assembly 88 inch, 10-9685 - Bastardo Shovelhead 88 inch Long Block
