Motorshop 32-1799 Burkhardt Offset Magneto Assembly

Burkhardt offset magneto assembly is for the generators on 1936-1969 Kuncklehead Panhead and Shovelhead engines. The offset drive allows the magneto head to clear the cylinders and lower head fins.

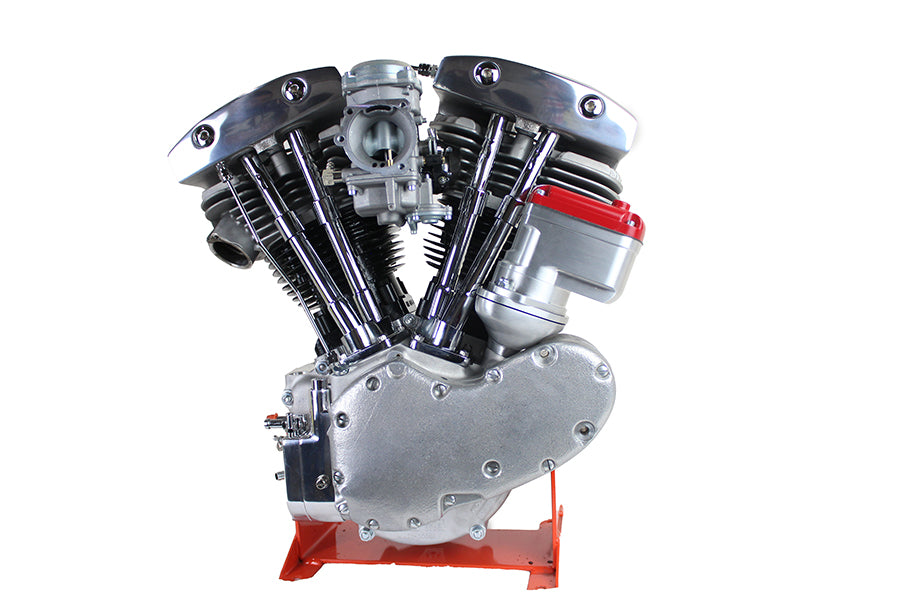

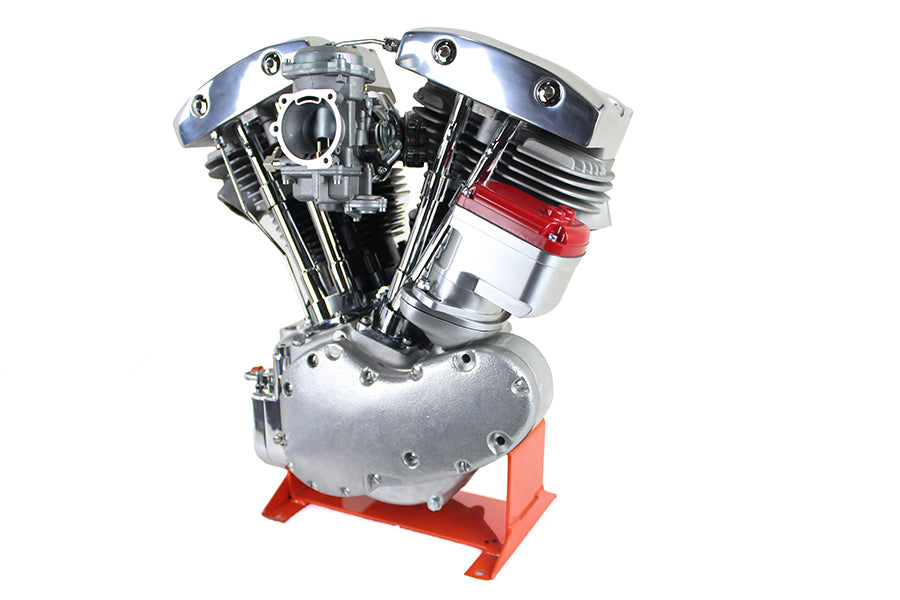

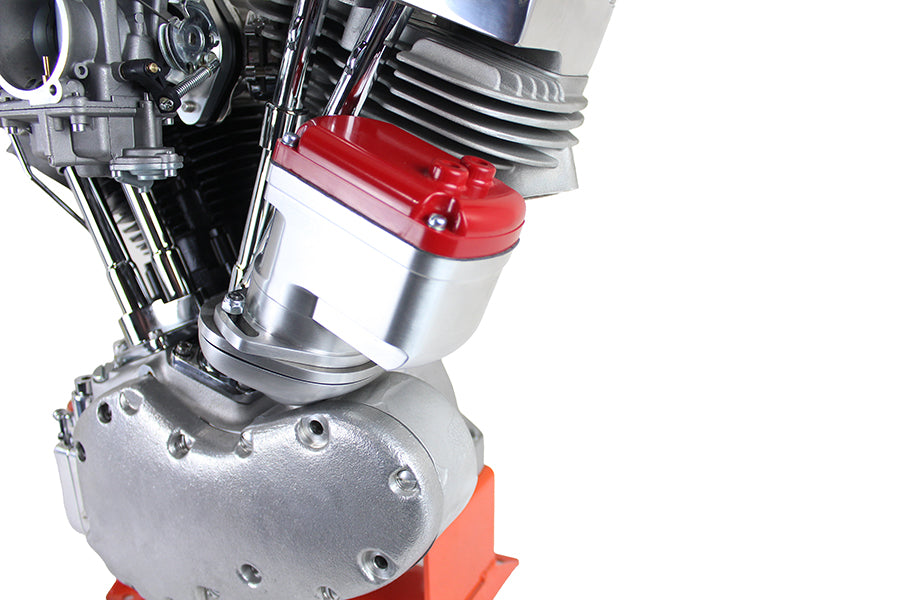

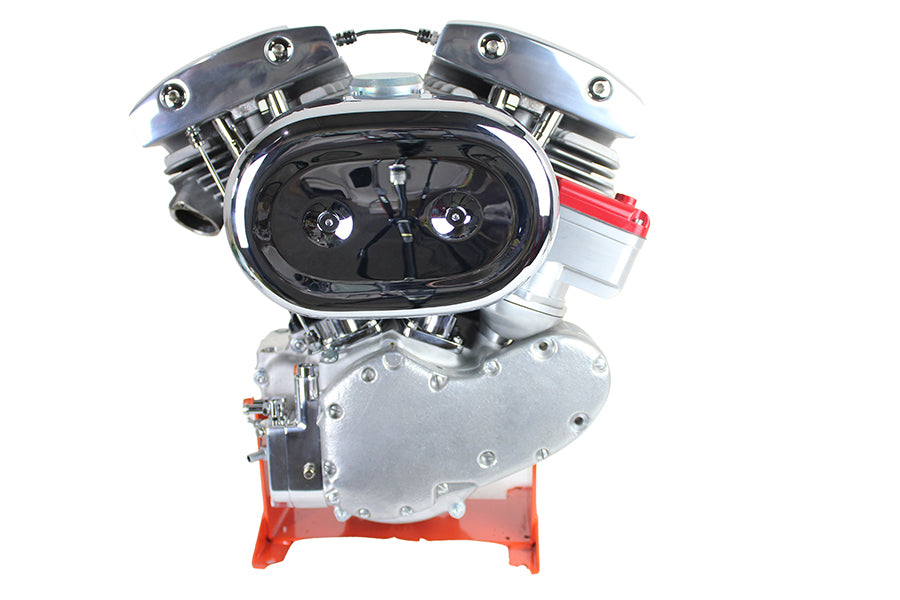

The Motorshop 32-1799 Burkhardt Offset Magneto Assembly features a natural die-cast finish body, red cast magneto cover with cast cap, offset base drive, left-hand magneto head, Burkhardt alloy cover, and retro wire set. The assembly is designed for mounting on generator-model overhead twins, including 1941–1969 Knucklehead, Panhead, and Shovelhead models.

This magneto assembly uses a two-bolt mounting arrangement at the engine case. The 1966–1969 models use a 1/4-inch-20 stud, while 1941–1969 models use a 1/4-inch-24 thread. For 1965–1969 Shovelhead single-stud cases, drilling and tapping a second 1/4-inch-20 hole for the two-bolt mount is advisable. It is also compatible with 1966–1969 cases that use a single-stud distributor mount; remove the existing stud before installation if an additional mounting hole is needed.

The magneto rotates left hand, and the points and point plate holder are also left handed. The cap requires additional clearance in the motor-case-head area near the front cylinder. Check clearance with aftermarket heavy-duty cases, as the magneto aluminum base may interfere with the motor case at the distributor base area. The Burkhardt cast magneto top must be installed before the front head is installed on the motor. Step-by-step installation instructions are available from the manufacturer.

This Motorshop 32-1799 assembly is listed for 1941–1950 Harley-Davidson FL applications in the supplied fitment data.

Features:

• Finish and Components: Natural die-cast finish body, red cast magneto cover with cast cap, offset base drive, Burkhardt alloy cover, and retro wire set.
• Magneto Orientation: Left-hand magneto head with left-hand rotation, points, and point plate holder.
• Mounting: Requires a two-bolt mount to the engine case.
• Model Coverage: Designed for generator-model overhead twins, including 1941–1969 Knucklehead, Panhead, and Shovelhead models.
• Clearance: Cap requires additional clearance near the front cylinder; check aftermarket heavy-duty case clearance before installation.
• Installation Note: Burkhardt cast magneto top must be installed before the front head is installed on the motor.
• Product Reference: Motorshop part number 32-1799.
