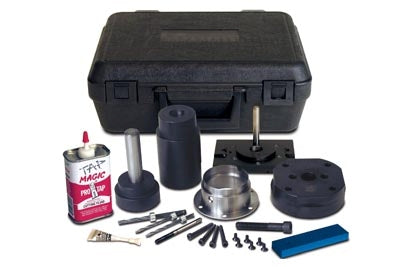

Jims Case Bearing Conversion Tool 959

Using the special Jims precision insert this tool is designed to easily and accurately convert the left side crank roller bearing to the more durable Timken Bearing.

The Jims Case Bearing Conversion Tool 959 includes one bearing insert held under .002 inch TIR (total indicator reading). The bearing is manufactured from aerospace-quality steel, which is several times stronger than the aluminum case material in which the standard bearing rides. A press plate is included to help hold the bearing insert in line with the case bearing bore during installation.

The tool also includes the necessary drill bits for oil feed and return holes, along with hardware. The job can be performed using normal hand tools, a hand drill, and a 2-ton press. This tool is intended for big late-model Twin Cam 88 and 96 cubic-inch engines. Installation requires the Jims #16-0688 Swingarm Bearing Puller Tool for race installation.

Timken bearings and any additional bearing inserts must be ordered separately. The product has a USA country of origin and is supplied as one each. Refer to the manufacturer’s installation instructions for application and procedure details.

Features:

• Bearing Insert: Includes one bearing insert held under .002 inch TIR.
• Bearing Material: Manufactured from aerospace-quality steel.
• Press Plate: Holds the bearing insert in line with the case bearing bore during pressing.
• Drill Bits: Includes the necessary drill bits for oil feed and return holes.
• Hardware: Includes installation hardware.
• Installation Requirements: Can be used with normal hand tools, a hand drill, and a 2-ton press.
• Required Tool: Requires Jims #16-0688 Swingarm Bearing Puller Tool for race installation.
• Separate Components: Timken bearings and additional bearing inserts are ordered separately.
• Accessory Items: 16-0529 - Mini Motorcycle Lift Tool, 41-0151 - Gasoila Red Varnish Sealant, 41-0168 - Gasgacinch Gasket Sealer

Fitment:
Harley Davidson FLST 2003
Harley Davidson FLST 2004
Harley Davidson FLST 2005
Harley Davidson FLST 2006
Harley Davidson FLST 2007
Harley Davidson FLST 2008
Harley Davidson FLST 2009
Harley Davidson FLST 2010
Harley Davidson FLST 2011
Harley Davidson FLST 2012
Harley Davidson FLST 2013
Harley Davidson FLST 2014
Harley Davidson FLST 2015
Harley Davidson FLST 2016
Harley Davidson FLST 2017
Harley Davidson FLT 2003
Harley Davidson FLT 2004
Harley Davidson FLT 2005
Harley Davidson FLT 2006
Harley Davidson FLT 2007
Harley Davidson FLT 2008
Harley Davidson FLT 2009
Harley Davidson FLT 2010
Harley Davidson FLT 2011
Harley Davidson FLT 2012
Harley Davidson FLT 2013
Harley Davidson FLT 2014
Harley Davidson FLT 2015
Harley Davidson FLT 2016
Harley Davidson FXD 2003
Harley Davidson FXD 2004
Harley Davidson FXD 2005
Harley Davidson FXD 2006
Harley Davidson FXD 2007
Harley Davidson FXD 2008
Harley Davidson FXD 2009
Harley Davidson FXD 2010
Harley Davidson FXD 2011
Harley Davidson FXD 2012
Harley Davidson FXD 2013
Harley Davidson FXD 2014
Harley Davidson FXD 2015
Harley Davidson FXD 2016
Harley Davidson FXD 2017
Harley Davidson FXST 2003
Harley Davidson FXST 2004
Harley Davidson FXST 2005
Harley Davidson FXST 2006
Harley Davidson FXST 2007
Harley Davidson FXST 2008
Harley Davidson FXST 2009
Harley Davidson FXST 2010
Harley Davidson FXST 2011
Harley Davidson FXST 2012
Harley Davidson FXST 2013
Harley Davidson FXST 2014
Harley Davidson FXST 2015
Harley Davidson FXST 2016
Harley Davidson FXST 2017
