Jims 5838 M8 Oil Pump Alignment Tool, SKU 16-1079

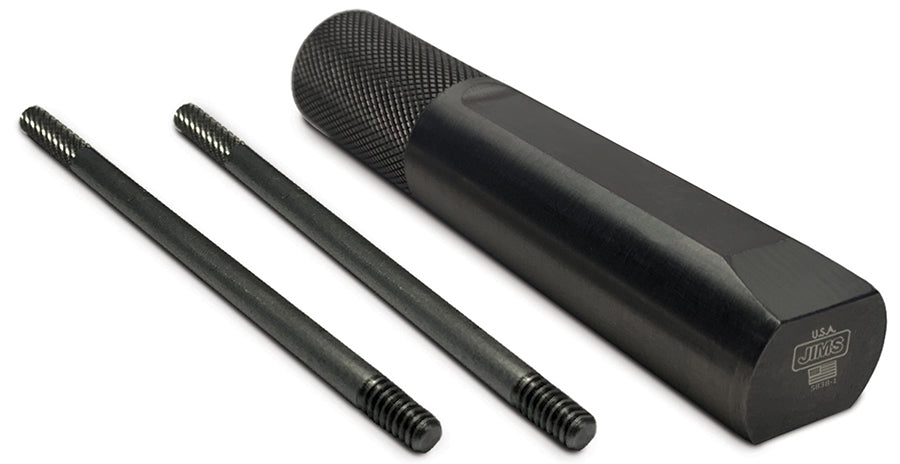

Jims oil pump alignment tool is the perfect aid for the technician to either assemble as individual components with supplied studs or as an assembly with the alignment dowel.

The Jims 5838 M8 Oil Pump Alignment Tool, SKU 16-1079, is designed to help align the cam support plate, oil pump gerotors, and pump cover with the pinion shaft flat. It also assists with properly sealing the oil pump O-ring in the crankcase, helping simplify an alignment and sealing task that can be challenging with one set of hands.

This tool is intended for use with the components described in the product data and is listed for 2018–2024 Harley-Davidson FLST models and 2019–2021 Harley-Davidson FXST models. The unit of measure is each, and the country of origin is the USA.

Use the Jims 5838 M8 Oil Pump Alignment Tool when servicing the oil pump assembly and seeking accurate component alignment during installation. Refer to applicable service information for proper procedures.

Features:

• Alignment Tool: Helps align the cam support plate, oil pump gerotors, and pump cover with the pinion shaft flat.
• O-Ring Sealing Assistance: Helps properly seal the oil pump O-ring in the crankcase.
• Listed Fitment: Fits 2018–2024 Harley-Davidson FLST models and 2019–2021 Harley-Davidson FXST models.
• Unit of Measure: EA.
• Country of Origin: USA.
