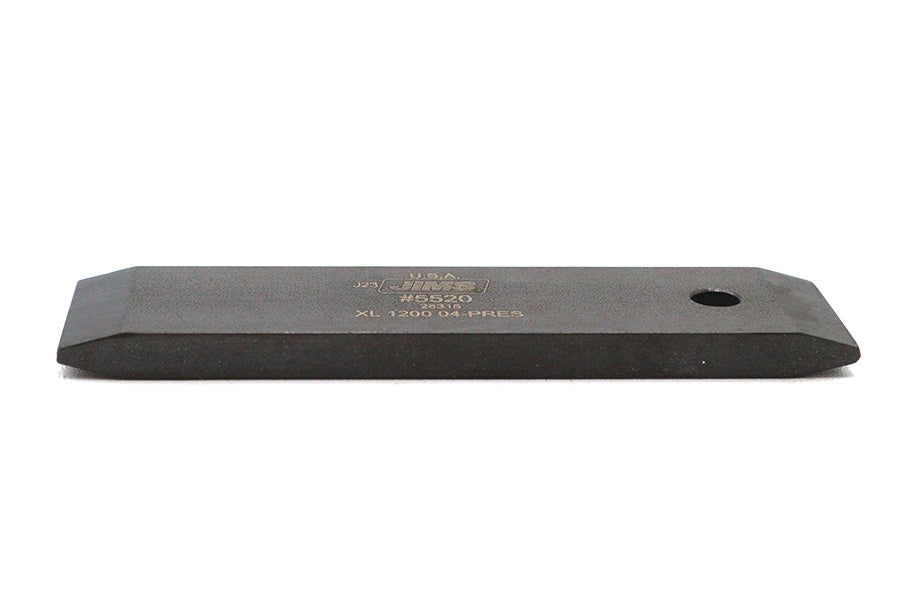

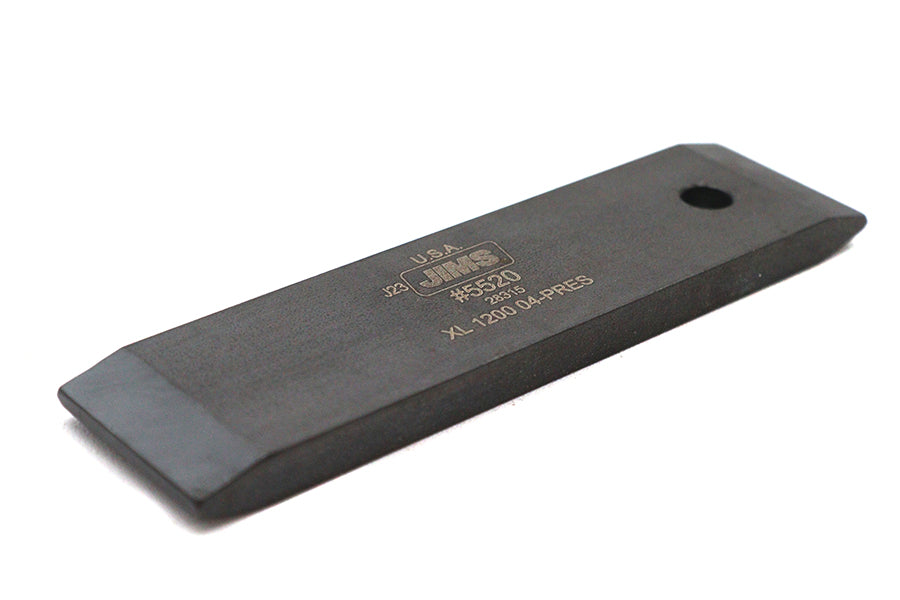

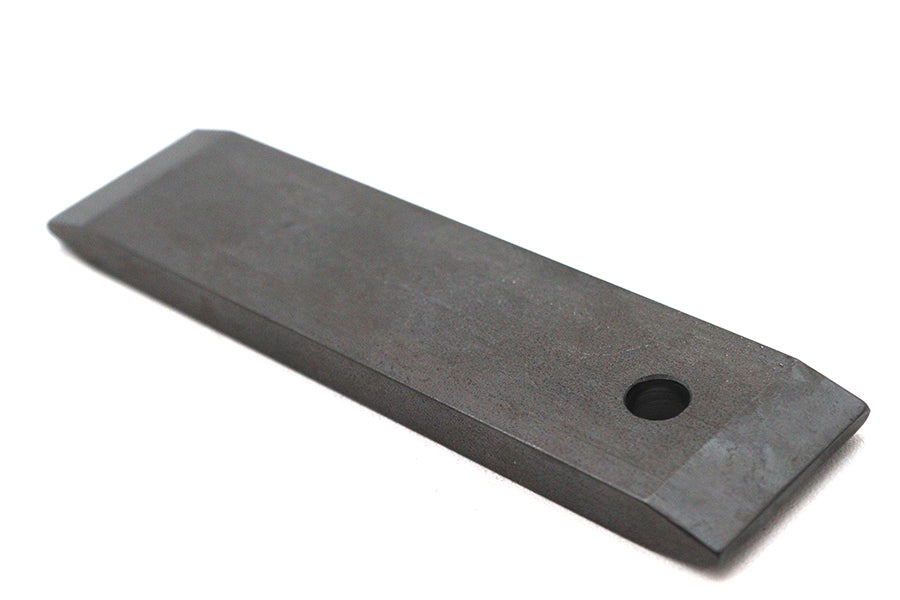

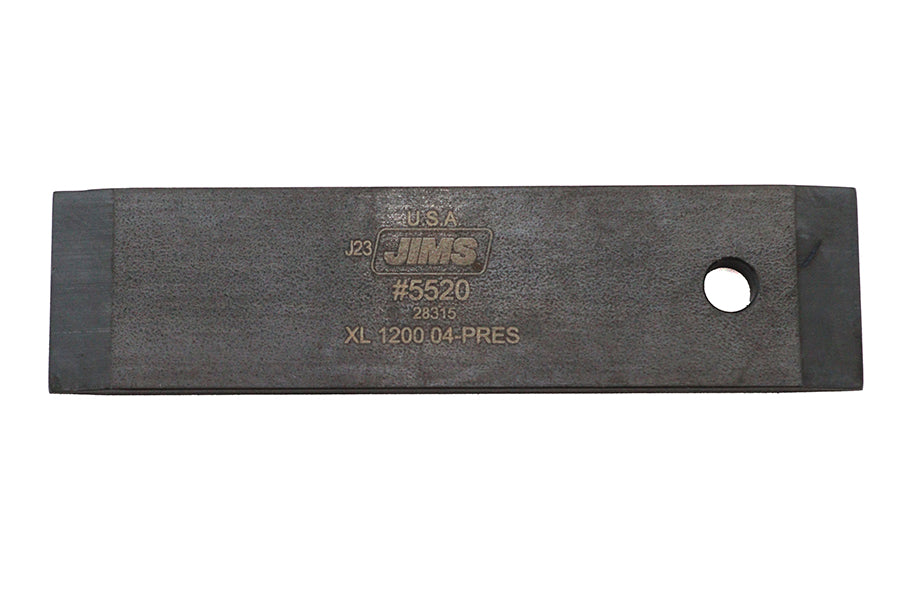

Jims 5520 XL Primary Locking Bar, SKU 16-1202

Jims primary locking bar tool locks the primary drive on XL models to facilitate crankshaft sprocket nut removal and installation along with clutch service.

The Jims 5520 XL Primary Locking Bar, SKU 16-1202, is designed to shift the transmission into top gear, or direct drive, during final drive front sprocket or pulley nut service. This helps secure the drivetrain for removal and installation while supporting accurate torque application when tightening the nut.

Designed for use with 2004–2013 Harley-Davidson XL models, this primary locking bar is intended for service applications involving the final drive front sprocket or pulley nut. Its focused design provides a straightforward way to hold the transmission in the required position during maintenance.

The Jims 5520 XL Primary Locking Bar is supplied as an individual unit. Product details identify the country of origin as the USA. Compatible accessory items listed for this product include the Sifton Hydraulic Tappet Unit, Nickel Plated Tappet Block Screw Kit, Solid Tappet Adapter Four Piece Kit, and Nickel Plated Tappet Block Screw Set.

Features:

• Primary locking bar: Shifts the transmission into top gear, or direct drive, for final drive front sprocket or pulley nut service.
• Service support: Helps with removal, installation, and accurate torque application when tightening the final drive front sprocket or pulley nut.
• Fitment: Fits 2004–2013 Harley-Davidson XL models.
• Brand and part number: Jims 5520.
• Country of origin: USA.

Fitment:
Harley Davidson XL 2004
Harley Davidson XL 2005
Harley Davidson XL 2006
Harley Davidson XL 2007
Harley Davidson XL 2008
Harley Davidson XL 2009
Harley Davidson XL 2010
Harley Davidson XL 2011
Harley Davidson XL 2012
Harley Davidson XL 2013
Harley Davidson XL 2014
Harley Davidson XL 2015
Harley Davidson XL 2016
Harley Davidson XL 2017
Harley Davidson XL 2018
Harley Davidson XL 2019
Harley Davidson XL 2020
Harley Davidson XL 2021
Harley Davidson XL 2022
Harley Davidson XL 2023
Harley Davidson XL 2024
Harley Davidson XL 2025
Harley Davidson XL 2026
