Jims 3200 Piston Ring End Gap Tool

Tool makes measuring ring end gap faster and more accurate.

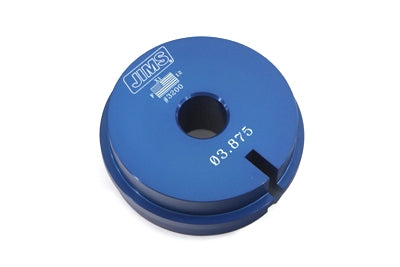

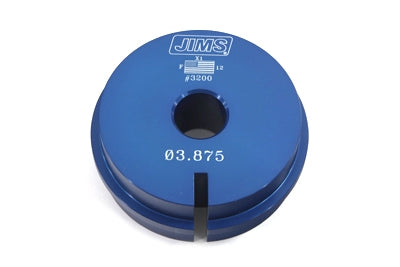

The Jims 3200 Piston Ring End Gap Tool makes measuring piston ring end gaps faster and more accurate. Its flanged design helps the piston ring sit squarely in the cylinder bore, reducing guesswork during measurement. The tool is designed for checking top rings, second rings and oil control rails.

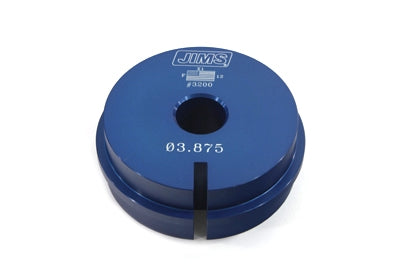

A proprietary cutout feature allows oil ring gaps to be tested. Install the ring on the tool, place the tool into the cylinder bore and view the ring end gap through the key slot. Use a feeler gauge to obtain the end gap measurement.

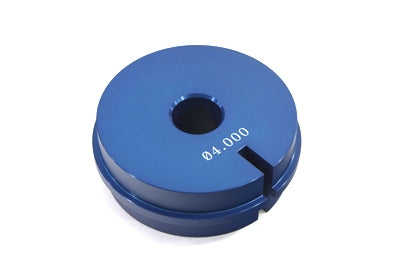

Each side of the Jims 3200 is made for checking standard-size piston rings. It fits Twin Cam standard-size pistons for 95, 103 and 110 cubic-inch applications with 3.875-inch or 4.00-inch bores. The tool is listed for 1999–2008 Harley-Davidson FXST applications. Brand: Jims. Part number: 3200.

Features:

• Ring End Gap Measurement: Helps make piston ring end gap measurement faster and more accurate.
• Flanged Design: Positions the piston ring squarely in the cylinder bore.
• Oil Ring Testing: Proprietary cutout feature allows oil control rail gaps to be checked.
• Key Slot Viewing: View the ring end gap through the key slot before measuring with a feeler gauge.
• Ring Compatibility: Designed for top rings, second rings and oil control rails.
• Twin Cam Applications: Fits standard-size pistons for 95, 103 and 110 cubic-inch applications with 3.875-inch or 4.00-inch bores.
• Listed Fitment: 1999–2008 Harley-Davidson FXST applications.
