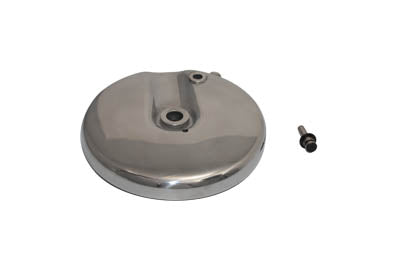

Edart 70323A Polished Left-Side Brake Backing Plate

Backing plate with shield includes brake cam lever stud for for left side brake.

The Edart 70323A Polished Left-Side Brake Backing Plate is designed for specified 1948–1957 Harley-Davidson FL applications. Its pivot stud hole is oversize to allow a 7/16-inch stud with the locking washer’s locking face toward the backing plate to be inset when adjusting the brake shoes.

For service and installation reference, the supplier suggests using this backing plate with the Edart 48-0835 Factory Service Manual for 1958–1969 FL models, the 24-0127 Backing Plate Pivot Stud with Washer, and the 24-0128 Backing Plate Locating Washer for Pivot Stud. The OEM cross-reference listed for this product is 44141-50.

This product is supplied as one each. Brand: Edart. Part number: 70323A.

Features:

• Product Type: Brake backing plate
• Side: Left side
• Finish: Polished
• Fitment: 1948–1957 Harley-Davidson FL
• Pivot Stud Hole: Oversize design for a 7/16-inch stud with locking washer during brake shoe adjustment
• OEM Cross Reference: 44141-50
• Service Reference: Suggested for use with the 48-0835 Factory Service Manual for 1958–1969 FL models
• Suggested Companion Parts: 24-0127 Backing Plate Pivot Stud with Washer and 24-0128 Backing Plate Locating Washer for Pivot Stud

Fitment:
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson FL 1965
Harley Davidson FL 1966
