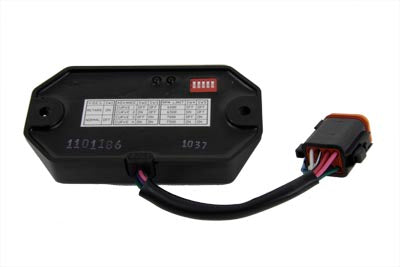

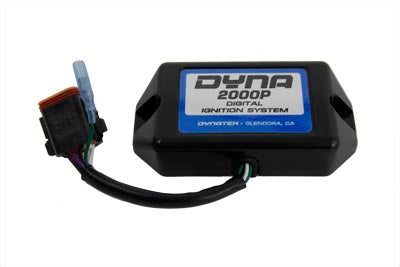

Dyna Tek 53-420 Dyna 2000 Ignition Module, Dual or Single Fire, 8-Pin

Features a wide open throttle curve part throttle curve rear cylinder offset dead cranking REV's single or dual fire option and retard mode.

The Dyna Tek 53-420 Dyna 2000 Ignition Module is designed for dual- or single-fire ignition applications and includes an 8-pin harness with a single-line USB port. Its advance curve function supports vacuum advance compensation, while the retard mode provides selectable retard input of 5, 7, or 10 degrees.

A built-in rev limiter offers four settings from 6,000 to 7,500 RPM. Programming software is ordered separately; the suggested programming software is Dyna Tek part number 32-9118. This module fits select 1996–1999 Harley-Davidson FLT, FLST, FXD, and FXST applications. Not for sale in California.

Brand: Dyna Tek. Part Number: 53-420.

Features:

• Ignition Configuration: Supports dual-fire or single-fire ignition applications.
• Harness: Includes an 8-pin harness.
• USB Port: Features a single-line USB port.
• Advance Curve: Allows use of vacuum advance compensation.
• Retard Mode: Provides retard input settings of 5, 7, or 10 degrees.
• Rev Limiter: Offers four settings from 6,000 to 7,500 RPM.
• Programming Software: Programming software is ordered separately; Dyna Tek part number 32-9118 is suggested.
• Fitment: Fits select 1996–1999 Harley-Davidson FLT, FLST, FXD, and FXST applications.
• California Sales Restriction: Not for sale in California.

Fitment:
Harley Davidson FLST 1996
Harley Davidson FLST 1997
Harley Davidson FLST 1998
Harley Davidson FLST 1999
Harley Davidson FLT 1996
Harley Davidson FLT 1997
Harley Davidson FLT 1998
Harley Davidson FLT 1999
Harley Davidson FXD 1996
Harley Davidson FXD 1997
Harley Davidson FXD 1998
Harley Davidson FXD 1999
Harley Davidson FXST 1996
Harley Davidson FXST 1997
Harley Davidson FXST 1998
Harley Davidson FXST 1999
