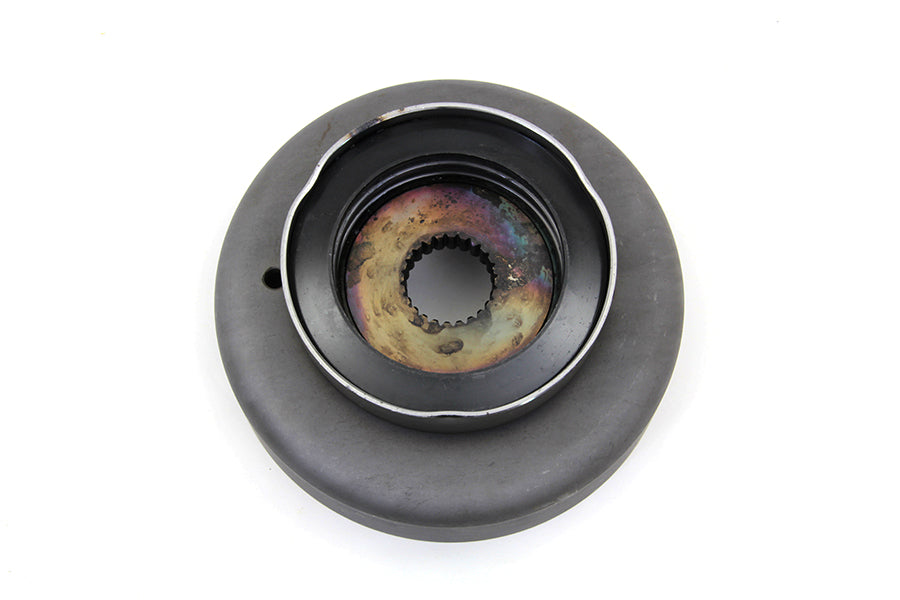

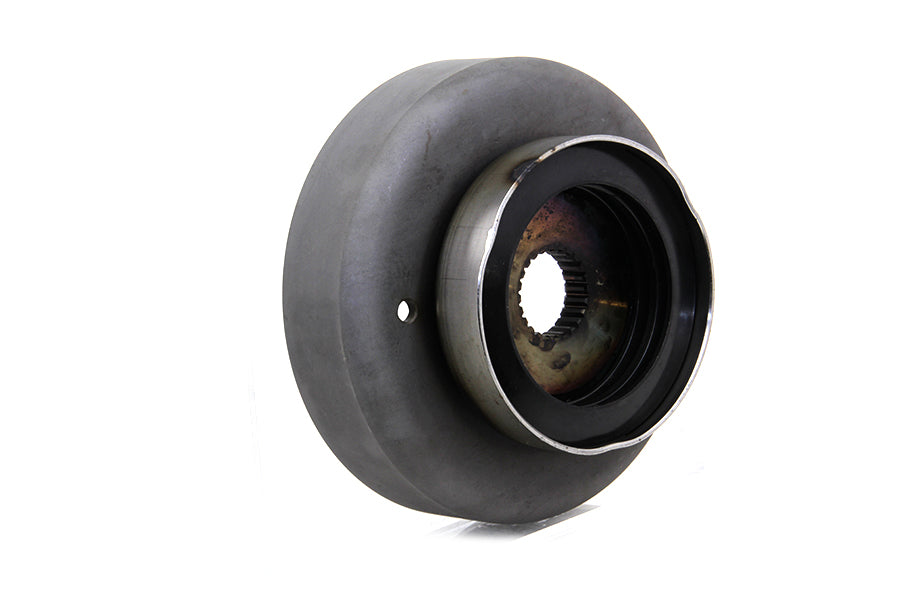

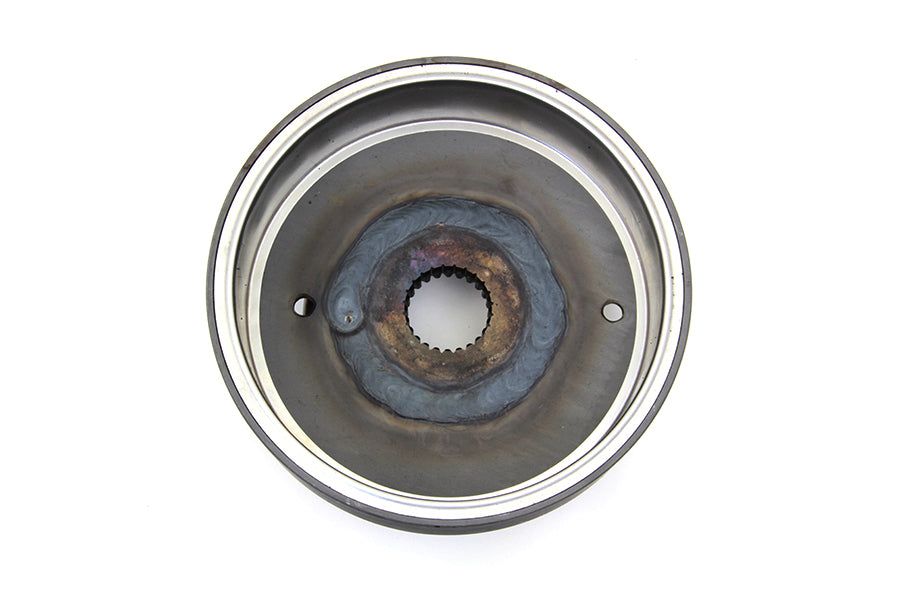

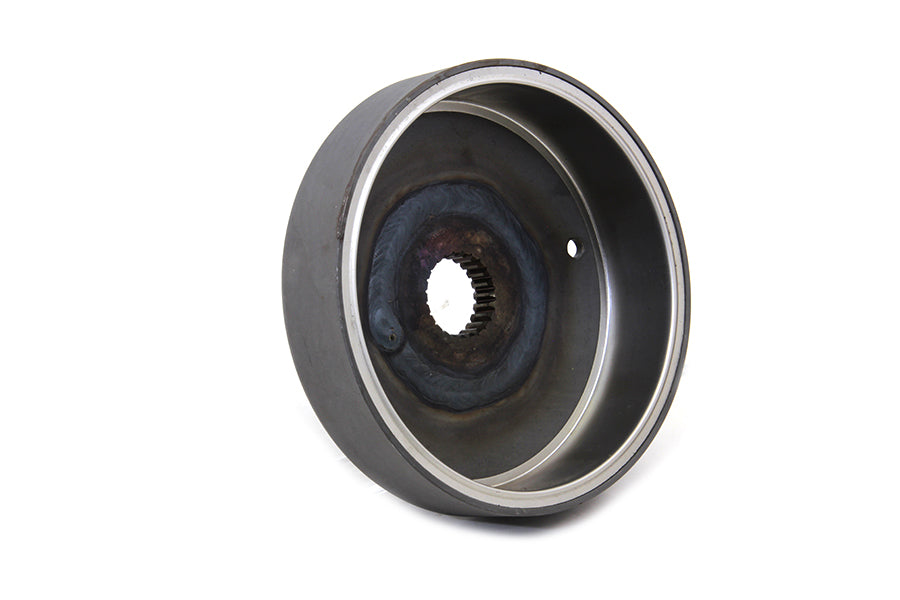

Volt Tech 32-0951 Alternator Rotor Assembly

Alternator rotor spring plate with sealed magnets.

The Volt Tech 32-0951 Alternator Rotor Assembly includes a spring plate and splined hub. This alternator rotor is designed to work with a 50 amp stator and has a rotor inner diameter of approximately 5.72 inches.

The two pieces of this rotor are welded together rather than bolted together like the original OEM factory components. Volt Tech suggests using this rotor with part number 32-0948 Alternator Stator Unmolded 50 Amp 3 Phase. The OEM cross reference is 40356-07.

This alternator rotor assembly is listed for 2007–2011 Harley-Davidson FXD and FXST applications. Verify the application and system requirements before installation. The product is supplied as one assembly.

Features:

• Assembly: Includes spring plate and splined hub
• Application: Works with a 50 amp stator
• Construction: Rotor components are welded together
• Rotor Inner Diameter: Approximately 5.72 inches
• OEM Cross Reference: 40356-07
• Suggested Stator: Volt Tech 32-0948 Alternator Stator Unmolded 50 Amp 3 Phase
• Fitment: 2007–2011 Harley-Davidson FXD and FXST models

Fitment:
Harley Davidson FLST 2007
Harley Davidson FLST 2008
Harley Davidson FLST 2009
Harley Davidson FLST 2010
Harley Davidson FLST 2011
Harley Davidson FLT 2007
Harley Davidson FLT 2008
Harley Davidson FLT 2009
Harley Davidson FLT 2010
Harley Davidson FXD 2007
Harley Davidson FXD 2008
Harley Davidson FXD 2009
Harley Davidson FXD 2010
Harley Davidson FXD 2011
Harley Davidson FXST 2007
Harley Davidson FXST 2008
Harley Davidson FXST 2009
Harley Davidson FXST 2010
Harley Davidson FXST 2011
