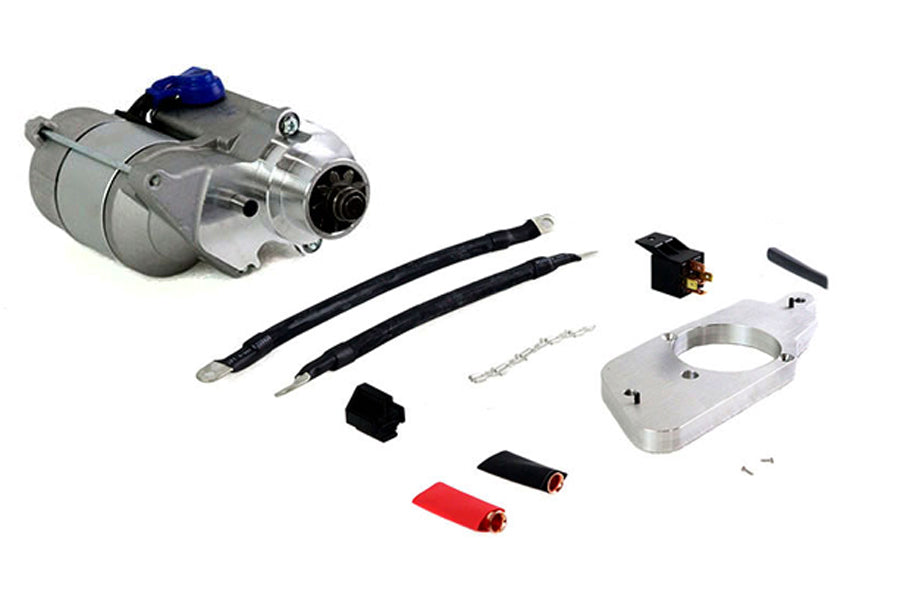

V-Twin 78647A XL York Electric Start Kit

Electric starter kit includes a 1.4kw compact starter with integral Bendix solenoid and gear reduction. Kit also includes mount plate and 2 gauge cable set.

The V-Twin 78647A XL York Electric Start Kit features a natural-finish starter and starter housing designed to bolt directly to the original starter drive port. The starter motor accepts a direct push button, and the kit includes mounting bolts for attaching the alloy mount plate: two 5/16-inch x 18 hex bolts with washers.

Installation requires two M5.08 x 2-inch countersunk flathead screws. Clearance must be checked between the sprocket cover, oil tank, and battery tray, as well as around the clutch drum, motor case, sprocket case, and rear cylinder. The clutch drum must have a 62-tooth ring gear installed; the required 62-tooth clutch drum with starter ring gear welded on is available separately as V-Twin part 18-3640. Existing clutch drums must have the OEM ring gear welded in place.

The V-Twin 78647A kit fits 1967-1976 Harley-Davidson XL models listed by the manufacturer. Installation may require a die grinder or 4-inch Makita-type disc grinder. The starter button may be used with a starter button relay, and the remote starter button should be installed before installation. Refer to the manufacturer’s installation instructions for application and clearance details.

Features:

• Product Type: XL York electric start kit
• Brand: V-Twin
• Part Number: 78647A
• Finish: Natural
• Starter Housing: Bolts directly to the original starter drive port
• Starter Control: Starter motor accepts a direct push button
• Mounting Hardware: Includes two 5/16-inch x 18 hex mount bolts with washers for attaching the alloy mount plate
• Clutch Requirement: Requires a 62-tooth clutch drum with starter ring gear welded on
• Required Fasteners: Requires two M5.08 x 2-inch countersunk flathead screws
• Fitment: Fits 1967-1976 Harley-Davidson XL models listed by the manufacturer
• Installation Notes: Clearance checks and possible grinding are required during installation
• Accessory Items: 18-3640 - 62 Tooth Clutch Drum Starter Ring Gear Welded-On, 32-1845 - Ultima V-Fire 1.4kW Starter Motor, 18-3166 - 1971-1980 XL Clutch Drum with Ring Gear, 32-1806 - York Electric Start Kit

Fitment:
Harley Davidson XL 1967
Harley Davidson XL 1968
Harley Davidson XL 1969
Harley Davidson XL 1970
Harley Davidson XL 1971
Harley Davidson XL 1972
Harley Davidson XL 1973
Harley Davidson XL 1974
Harley Davidson XL 1975
Harley Davidson XL 1976
Harley Davidson XL 1977
Harley Davidson XL 1978
Harley Davidson XL 1979
Harley Davidson XL 1980
