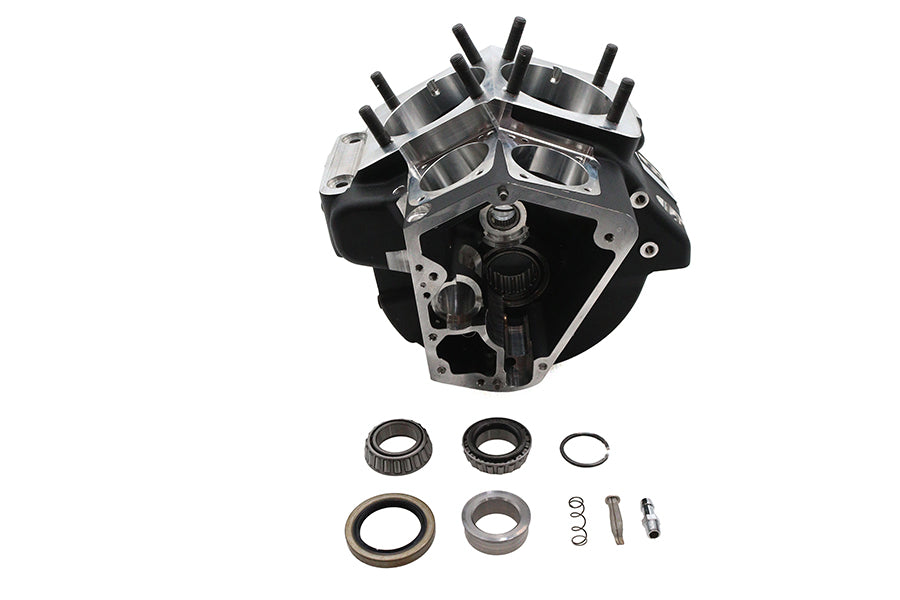

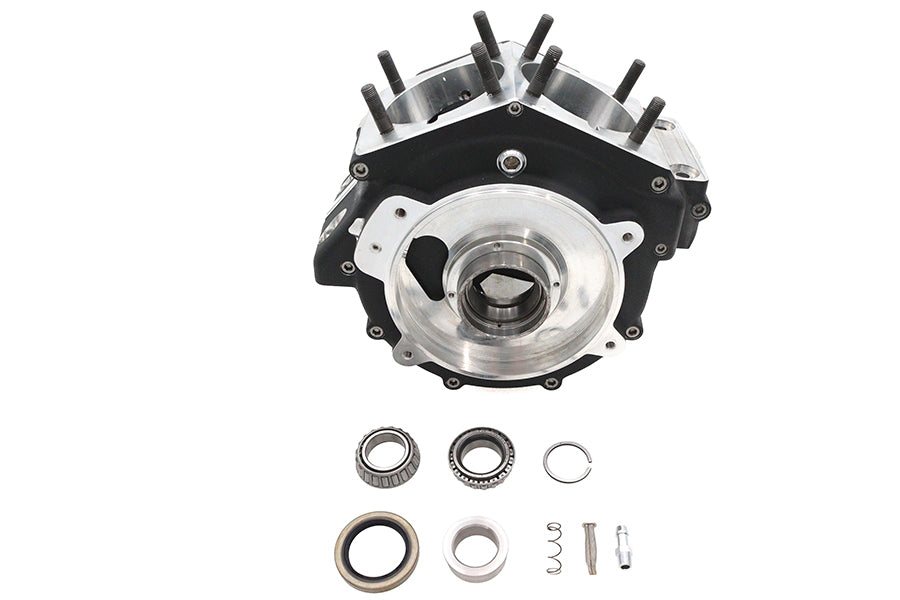

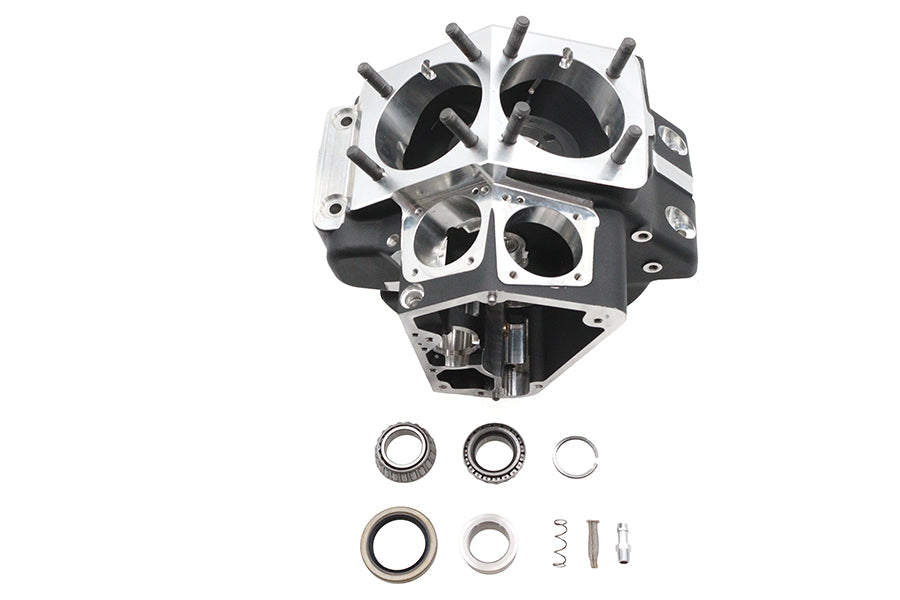

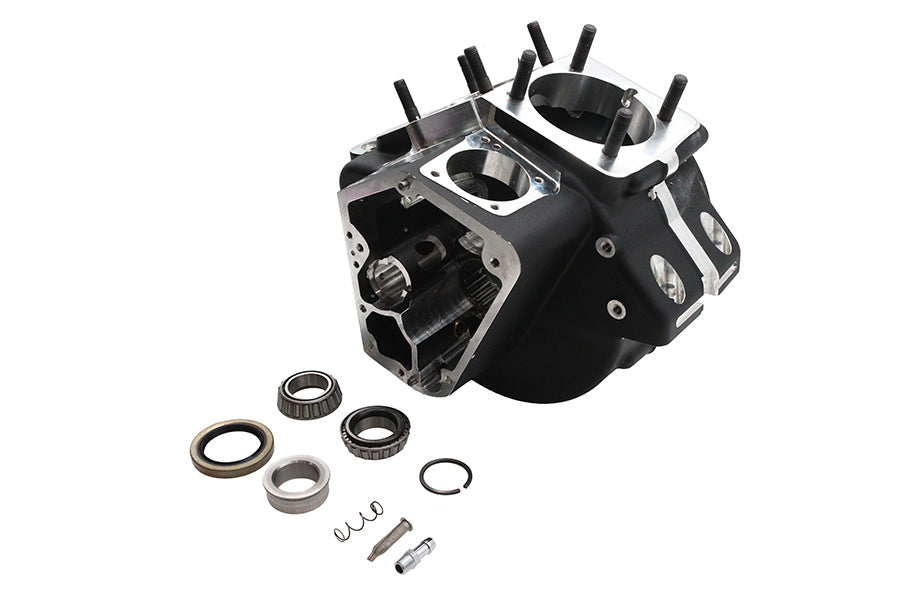

Ultima 206-27 Shovelhead Engine Case Set, Black

Shovelhead Ultima engine case set features a black finish and a 3 piece flywheel design. Engine case features large bore breather for increased crank case vacuum and less blow by.

The Ultima 206-27 Shovelhead Engine Case Set is designed for engine builds using a 3.625-inch bore and a 1992-up oil pump. This set includes main bearings, installed chromoly cylinder studs, a main seal spacer, a chrome timing hole plug, and case counterbores for socket head bolts.

Additional components include stainless socket head case bolts, alignment dowels for a true line bore, a top-end feed screen with spring, and an oil pressure gauge. The engine case set is supplied in black and is sold as a set.

Further machining may be required. Check fitment with all related parts before installation. This Ultima 206-27 set is listed for select Harley-Davidson FX and FL applications, including models from 1970 through 1984.

Features:

• Engine Case Type: Shovelhead engine case set
• Brand and Part Number: Ultima 206-27
• Finish: Black
• Bore: 3.625 inches
• Oil Pump: Features a 1992-up oil pump
• Included Components: Main bearings, installed chromoly cylinder studs, main seal spacer, chrome timing hole plug, case counterbores for socket head bolts, stainless socket head case bolts, alignment dowels for true line bore, top-end feed screen with spring, and oil pressure gauge
• Machining Note: May require further machining; check fit on all related parts
• Unit of Measure: Set
• Listed Fitment: Select 1970-1984 Harley-Davidson FX and FL models

Fitment:
Harley Davidson FL 1970
Harley Davidson FL 1971
Harley Davidson FL 1972
Harley Davidson FL 1973
Harley Davidson FL 1974
Harley Davidson FL 1975
Harley Davidson FL 1976
Harley Davidson FL 1977
Harley Davidson FL 1978
Harley Davidson FL 1979
Harley Davidson FL 1980
Harley Davidson FL 1981
Harley Davidson FL 1982
Harley Davidson FL 1983
Harley Davidson FL 1984
Harley Davidson Fx 1970
Harley Davidson Fx 1971
Harley Davidson Fx 1972
Harley Davidson Fx 1973
Harley Davidson Fx 1974
Harley Davidson Fx 1975
Harley Davidson Fx 1976
Harley Davidson Fx 1977
Harley Davidson Fx 1978
Harley Davidson Fx 1979
Harley Davidson Fx 1980
Harley Davidson Fx 1981
Harley Davidson Fx 1982
Harley Davidson Fx 1983
Harley Davidson Fx 1984
