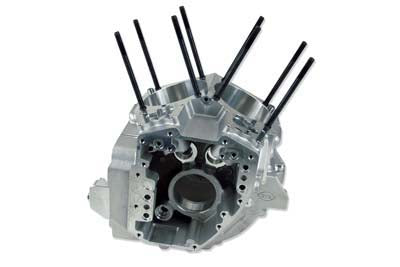

S&S Cycle 106-4039 Engine Crankcase Set

Crankcase set for 2000-2006 TC-88A engine with stock bore engine with stock bore and comes ready to assemble.

The S&S Cycle 106-4039 Engine Crankcase Set is a ready-to-assemble crankcase assembly with a stock crankcase bore. The set includes a Timken left-side bearing race assembly, seal, seal spacer, oil pump drive bushing, needle bearing, and a pressed-in, line-honed pinion race for the right side.

Additional components include cylinder studs, nickel-plated case bolts, crankcase fittings, a timing plug, and a magnetic drain plug. The crankcase accepts flywheels up to 8-1/2 inches in diameter and is compatible with the stock primary and charging system. A stock oil pump is required for assembly.

This S&S Cycle crankcase set fits select 2000–2005 Harley-Davidson FXD models and select 2000–2003 Harley-Davidson FXST models. A Manufacturer's Statement of Origin is supplied. The kit is made in the USA.

Features:

• Bearing and Race Components: Includes a Timken left-side bearing race assembly, seal, seal spacer, oil pump drive bushing, needle bearing, and right-side pinion race.
• Ready for Assembly: The right-side pinion race is pressed in and line honed.
• Flywheel Capacity: Stock crankcase bore accepts flywheels up to 8-1/2 inches in diameter.
• System Compatibility: Compatible with the stock primary and charging system.
• Included Hardware: Includes cylinder studs, nickel-plated case bolts, crankcase fittings, timing plug, and magnetic drain plug.
• Assembly Requirement: Stock oil pump required for assembly.
• Fitment: Fits select 2000–2005 Harley-Davidson FXD and 2000–2003 Harley-Davidson FXST models.
• Country of Origin: USA.
• Accessory Items: 16-1839 - Jims Crank Assembly Removal Tool, 16-0526 - TC-88A Engine Stand Tool, 16-0705 - Snap Ring Remover Tool

Fitment:
Harley Davidson FLST 2000
Harley Davidson FLST 2001
Harley Davidson FLST 2002
Harley Davidson FLST 2003
Harley Davidson FLST 2004
Harley Davidson FLST 2005
Harley Davidson FLST 2006
Harley Davidson FLT 2000
Harley Davidson FLT 2001
Harley Davidson FLT 2002
Harley Davidson FLT 2003
Harley Davidson FLT 2004
Harley Davidson FLT 2005
Harley Davidson FLT 2006
Harley Davidson FXD 2000
Harley Davidson FXD 2001
Harley Davidson FXD 2002
Harley Davidson FXD 2003
Harley Davidson FXD 2004
Harley Davidson FXD 2005
Harley Davidson FXST 2000
Harley Davidson FXST 2001
Harley Davidson FXST 2002
Harley Davidson FXST 2003
Harley Davidson FXST 2004
Harley Davidson FXST 2005
Harley Davidson FXST 2006
