LEGEND AXEO FORK KITS 39MM HARLEY DYNA/XL (+2 LENGTH)

LEGEND AXEO FORK KITS 39MM HARLEY DYNA/XL (+2 LENGTH)

99-05 AND 88-92 (DOES NOT COME WITH OIL)

• Innovative through shaft design is first of its kind in front fork application, not like others offering spring drop in or nitrogen
• Easily installs in few simple steps

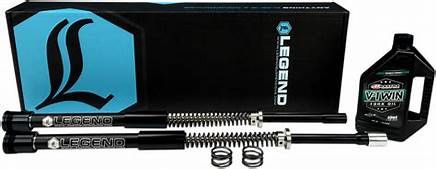

• Includes TWO mono-tube, damper cartridges
• Unique through-shaft technology so there is no pressure at end of stroke
• Utilizes a two-stage management system controlling fluid flow and high pressure
• Compression and rebound flow rate is managed via high-flow damper piston and deflective disc set
• Secondary high pressure control system, using precision load rated wave springs, allowing spike over pressure to bypass, protecting the deflective disc’s precision valve opening limits
• Through shaft eliminates the rod pressure in-and-out issues plus piston rod is always in fluid
• Two precision linear bearings support both sides of the rod and piston assembly
• Proprietary performance main spring
• Machined 303 stainless threaded preload adjuster
• Increased pre-load range allows fine tuning for various riding styles and weights
• 5” of travel
• Ride quality is smooth and controlled
• Improves stability, cornering and traction
• Eliminates front-end dive during aggressive braking and maneuvering
• Firm feel for high-speed sweeping turns
• Eliminates bottoming out on large bumps or potholes
• Reduces dragging pegs
• Designed for optimum performance with Legend rear suspension system
• Maintains stock hydraulic bump stop
• Lifetime Warranty
• Made by hand in Sturgis, SD USA
