Jims Pinion Shaft 24007-39

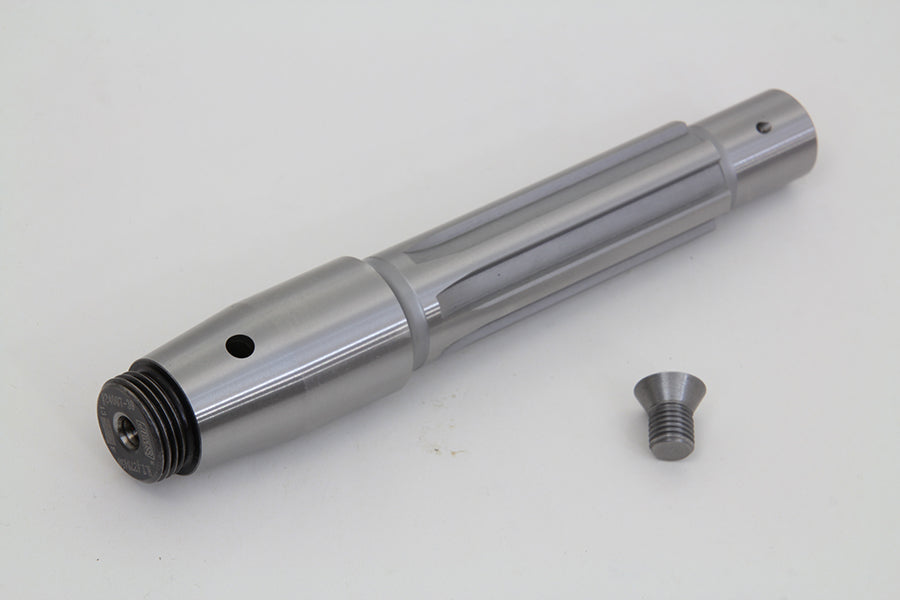

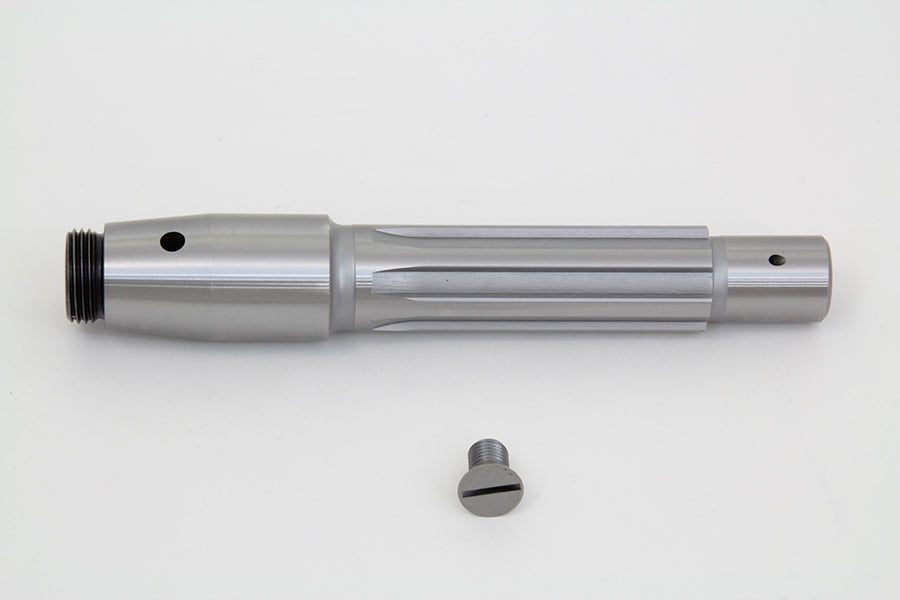

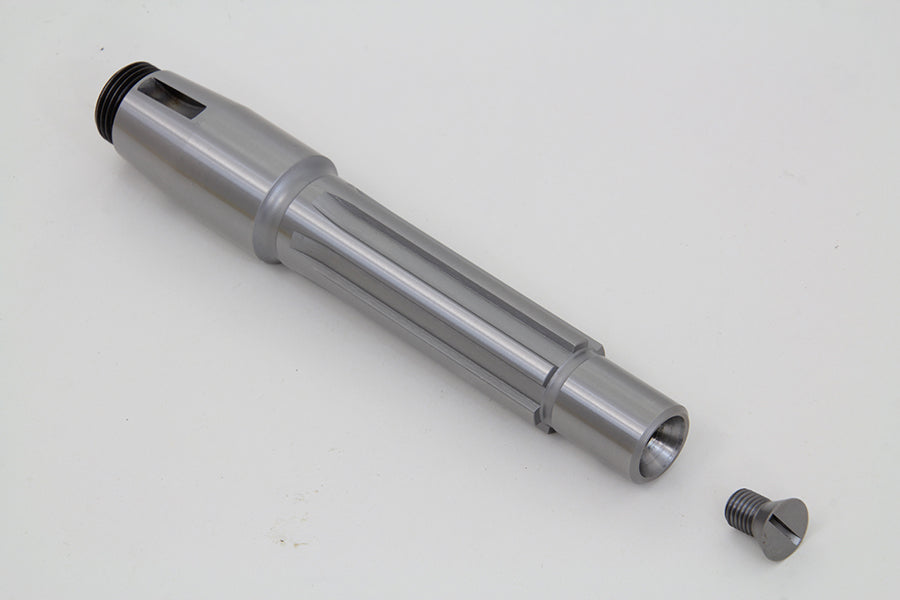

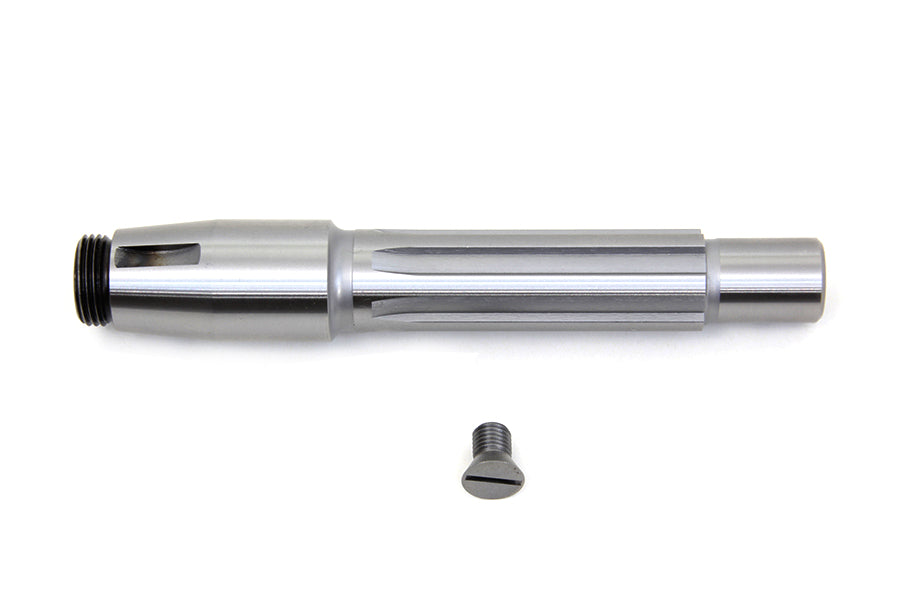

Jims pinion shaft has an outer diameter of 1.000 inch. Shaft includes screws.

The Jims Pinion Shaft, SKU 10-8323 and part number 24007-39, is designed for specified Harley-Davidson EL and FL applications from 1939 through 1948. It is listed for 1939 and 1940 Harley-Davidson EL models and 1941 through 1948 Harley-Davidson FL models.

Before final flywheel assembly, check the spline timing in relation to the keyway slot. Position the shaft with the keyway slot at the 12 o’clock position. The oil hole and large spline should be positioned at 3 o’clock before installation in the flywheel.

This pinion shaft is supplied as one each and has a country of origin of the USA. The OEM cross-reference number is 24007-39.

Features:

• Brand: Jims
• Product Type: Pinion shaft
• SKU: 10-8323
• Part Number: 24007-39
• Fitment: 1939–1940 Harley-Davidson EL and 1941–1948 Harley-Davidson FL
• Installation Note: Position the keyway slot at 12 o’clock, with the oil hole and large spline at 3 o’clock, before final flywheel assembly
• Unit of Measure: Each
• Country of Origin: USA
• OEM Cross Reference: 24007-39

Fitment:
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
