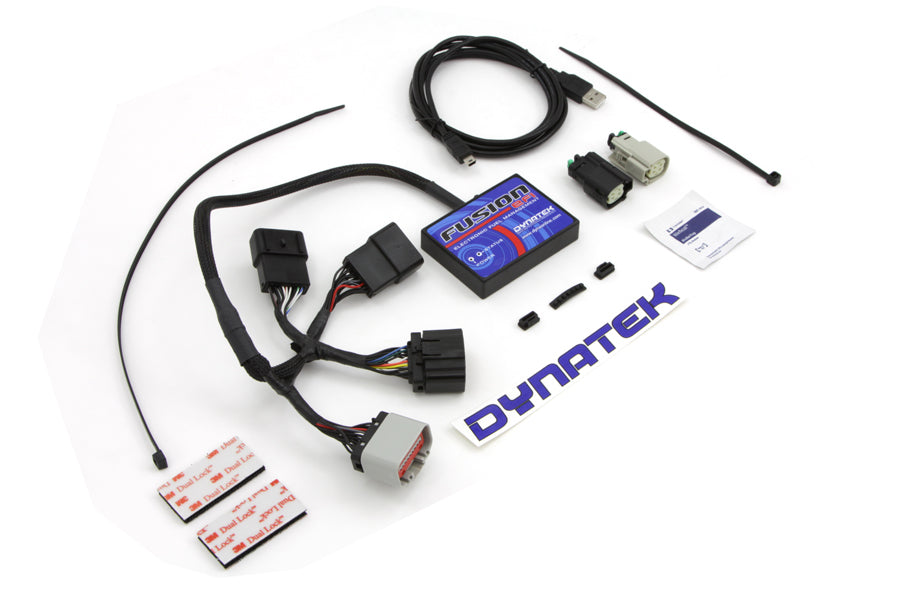

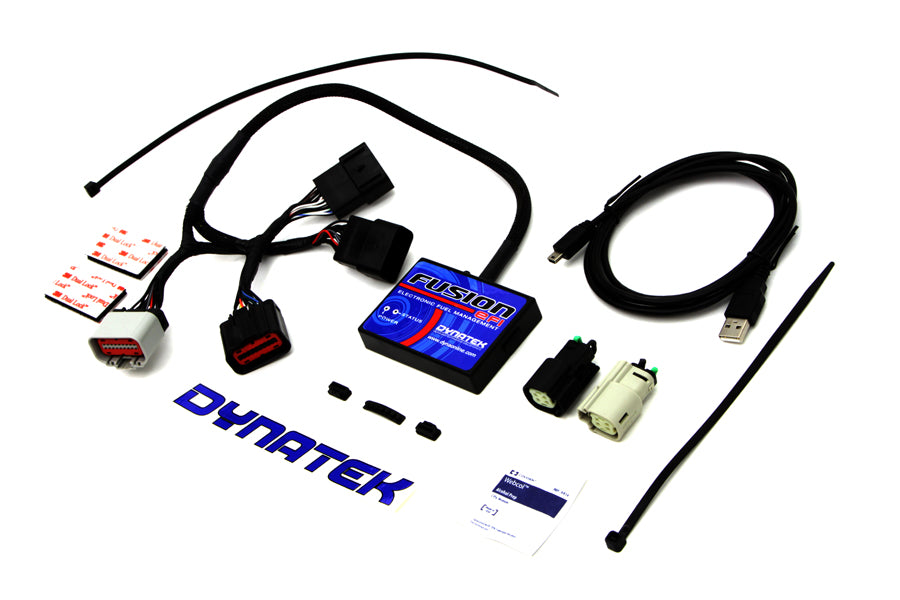

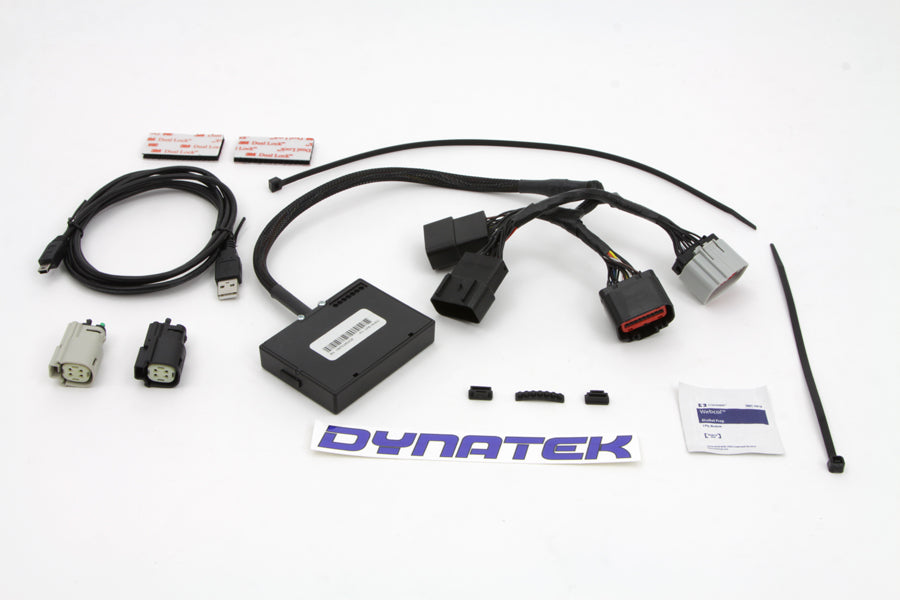

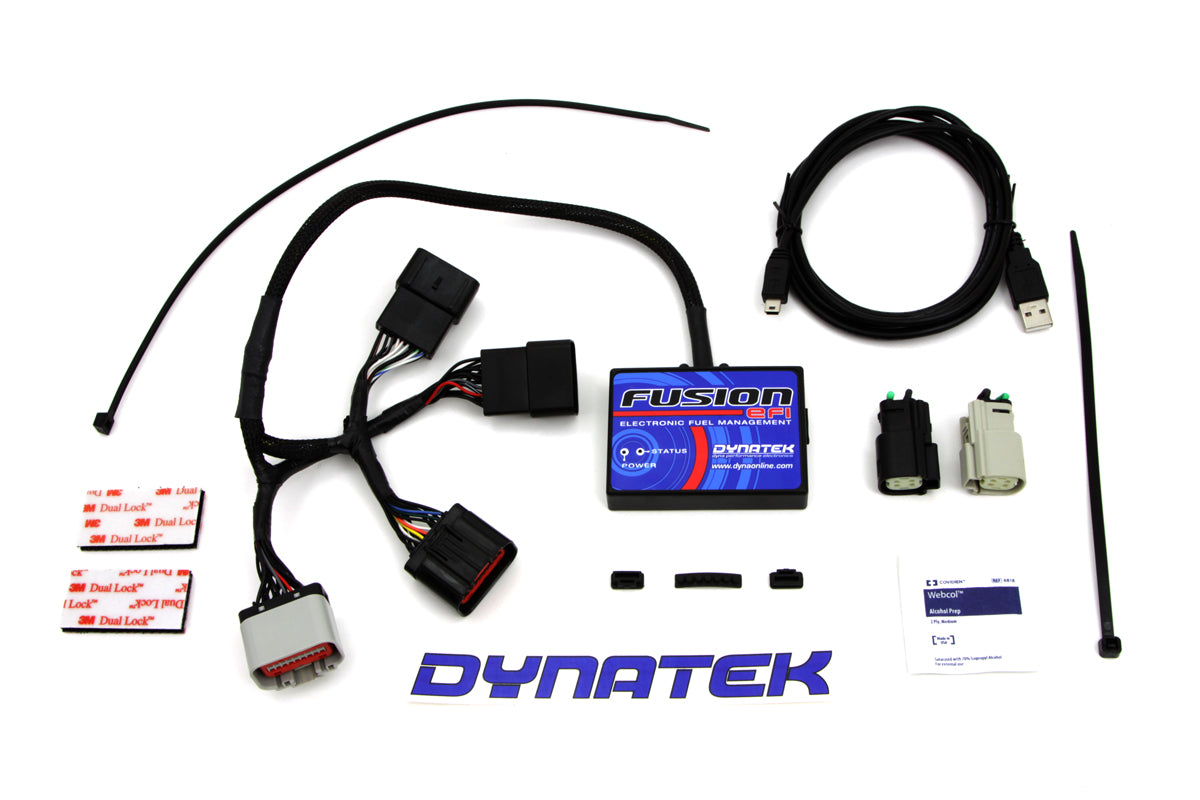

Dyna Tek DFE-15-022 Dynatek Fusion EFI Ignition Module

Dyna Fusion EFI module with fuel and ignition control is available for most models. The new Dynatek Fusion EFI bases fuel adjustments on input from RPM and throttle positions.

The Dyna Tek Dynatek Fusion EFI Ignition Module, part number DFE-15-022, provides adjustable fuel delivery and spark advance control for supported motorcycles. With 250 RPM resolution and 10 throttle-position columns, the module offers up to 640 mapping points for fuel and an equal number of mapping points for ignition timing.

The DFE-15-022 supports individual-cylinder and gear-position mapping, along with built-in two-position map switching. Warm-up fuel adjustments can be based on engine temperature, while the enhanced accelerator-pump utility provides additional fuel adjustment control. The module is USB powered from a computer and allows timing adjustments of up to plus or minus 20 degrees per cylinder or per gear.

This Dyna Tek Dynatek Fusion EFI Ignition Module fits 2012–2017 Harley Davidson FXD models. It is not for sale in California. Part number: DFE-15-022.

Features:

• Fuel and spark advance adjustment: Enables adjustment of fuel delivery and ignition timing.
• Mapping resolution: Provides 250 RPM resolution and 10 throttle-position columns.
• Mapping points: Offers up to 640 mapping points for fuel and an equal number for ignition timing.
• Individual-cylinder mapping: Supports separate mapping adjustments by cylinder.
• Gear-position mapping: Supports mapping adjustments by gear position.
• Map switching: Includes a built-in two-position map switching function.
• Warm-up fuel adjustment: Allows fuel adjustments based on engine temperature.
• Accelerator-pump utility: Includes an enhanced accelerator-pump adjustment utility.
• Timing adjustment range: Allows plus or minus 20 degrees of timing adjustment per cylinder or per gear.
• Computer connection: USB powered from a computer.
• Fitment: Fits 2012–2017 Harley Davidson FXD models.
• California sales restriction: Not for sale in California.

Fitment:
Harley Davidson FXD 2012
Harley Davidson FXD 2013
Harley Davidson FXD 2014
Harley Davidson FXD 2015
Harley Davidson FXD 2016
Harley Davidson FXD 2017
