York 19-0587 Compensator Sprocket Kit, 34 Tooth

Premium high performance compensator kit is engineered for increased travel. New premium design will support the high torque output associated with high compression and large displacement engines.

The York 19-0587 Compensator Sprocket Kit is designed with improved oil passages and a needle bearing thrust washer to outperform original compensators. This kit is identified as original equipment for 2014–2017 Dyna and Softail models and 2014–2016 Touring models. The listed fitment includes 2006–2015 Harley-Davidson FXD models.

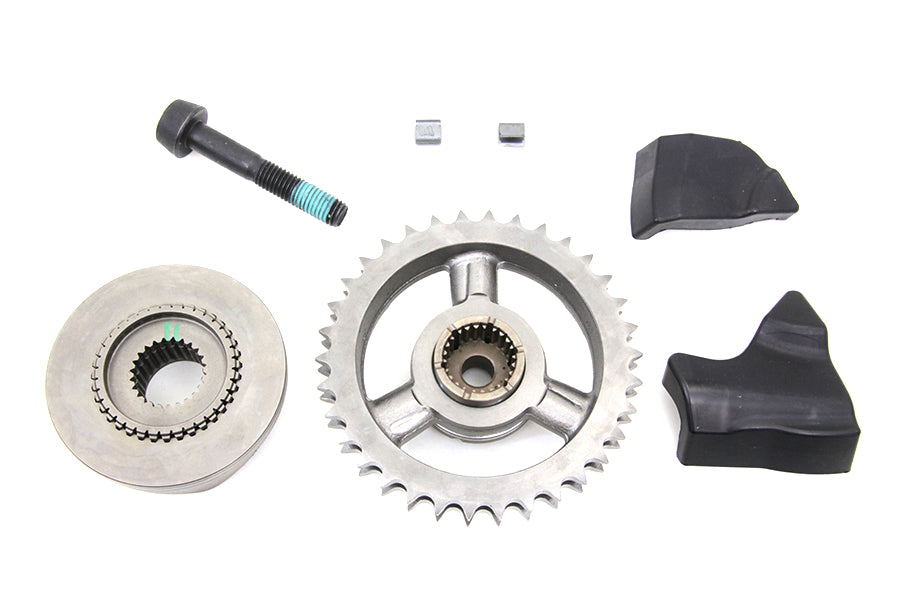

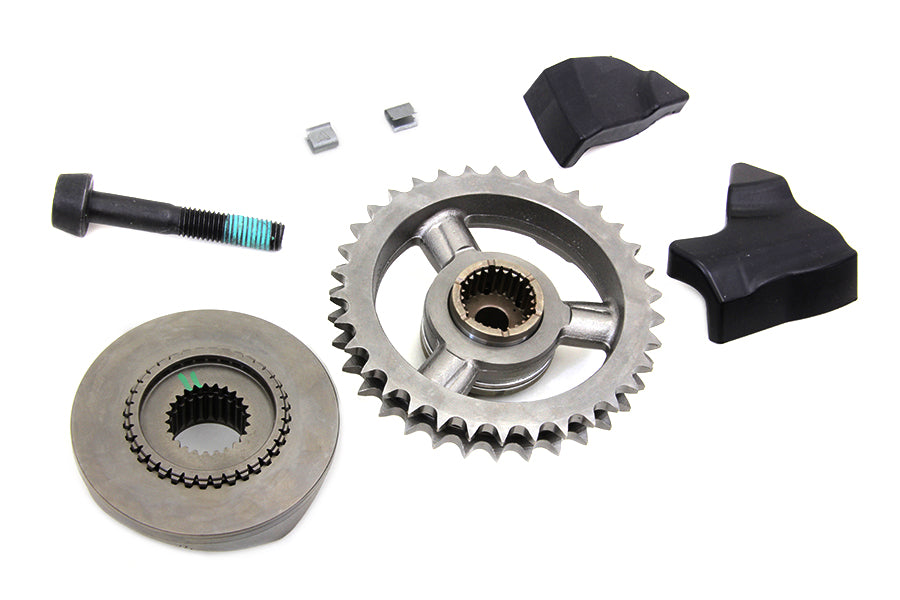

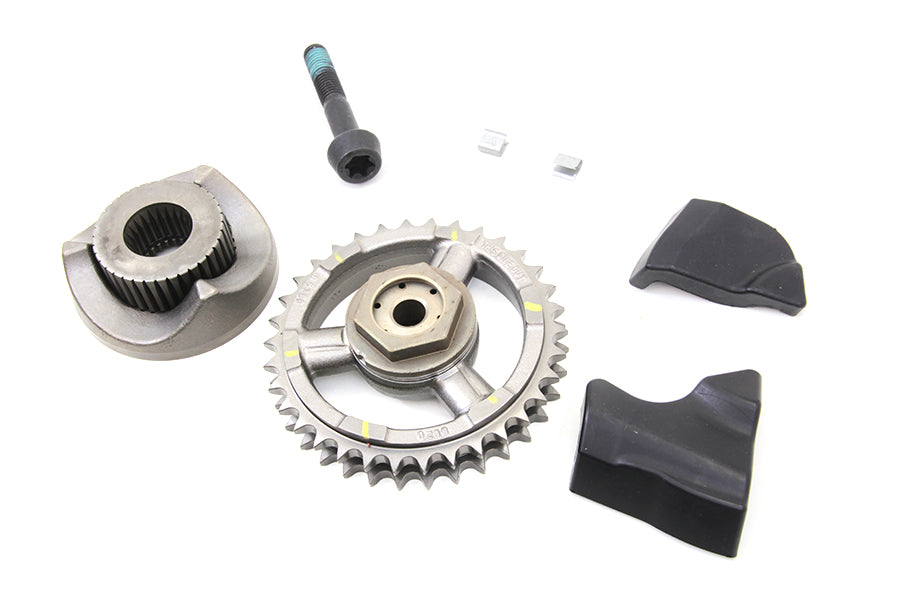

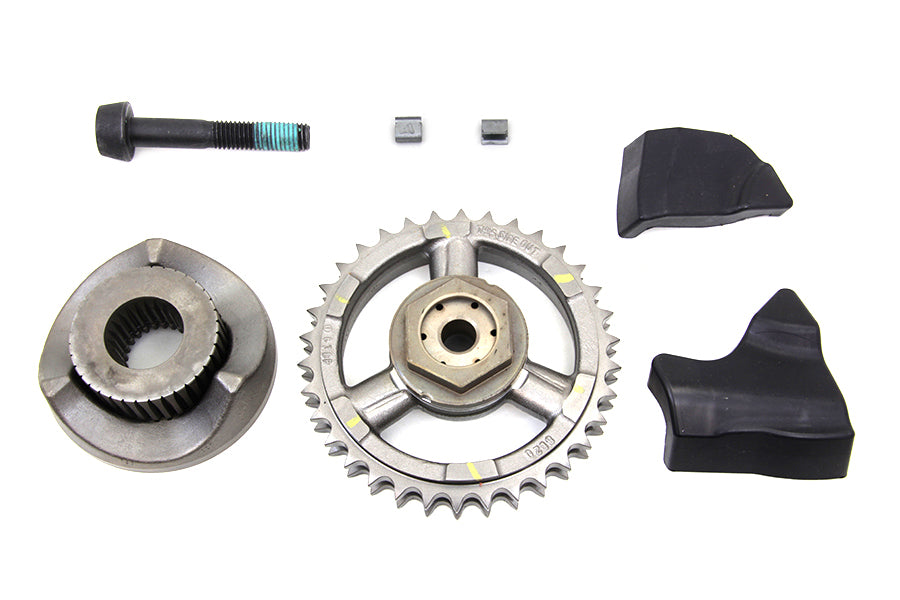

The kit includes a shaft extension, sliding cam, compensating sprocket, thrust washers, thrust bearing, sprocket retainer, Torx screw, two oil deflectors, and a retainer clip. One oil deflector is intended for Touring models, while the other is intended for Dyna and Softail models. Components are shipped with raw and oiled finishes.

All models require separate purchase of the Compensator Sprocket Spring Pack Kit and Installation Adhesive Kit. Some models may also require two 0.031-inch-thick rear washer shims. A new primary cover gasket must be ordered separately for proper installation. The kit is required to be used with the #13-0871 Compensator Sprocket Spring Pack Kit and OEM #11100088 Installation Adhesive Kit. Additional technical requirements apply to certain model applications, including specified Volt Tech alternators and the #12-0001 Rear Washer Shim.

York part number 19-0587 is supplied as a kit. Installation instructions are available at the manufacturer’s instruction document.

Features:

• 34-Tooth Design: Compensator sprocket kit with a 34-tooth configuration.
• Improved Oil Passages: Designed with improved oil passages.
• Needle Bearing Thrust Washer: Includes a needle bearing thrust washer.
• Kit Components: Includes the shaft extension, sliding cam, compensating sprocket, thrust washers, thrust bearing, sprocket retainer, Torx screw, two oil deflectors, and retainer clip.
• Oil Deflectors: Includes separate oil deflectors for Touring and Dyna/Softail applications.
• Finish: Components are shipped with raw and oiled finishes.
• Installation Requirements: Requires separate purchase of the Compensator Sprocket Spring Pack Kit, Installation Adhesive Kit, and a new primary cover gasket; some models may require two 0.031-inch rear washer shims.
• Application Notes: Required technical components vary by model and include specified Volt Tech alternators, the #13-0871 Compensator Sprocket Spring Pack Kit, OEM #11100088 Installation Adhesive Kit, and #12-0001 Rear Washer Shim.

Fitment:
Harley Davidson FLH 2007
Harley Davidson FLH 2008
Harley Davidson FLH 2009
Harley Davidson FLH 2010
Harley Davidson FLH 2011
Harley Davidson FLH 2012
Harley Davidson FLH 2013
Harley Davidson FLH 2014
Harley Davidson FLH 2015
Harley Davidson FLH 2016
Harley Davidson FLHXXX 2009
Harley Davidson FLHXXX 2010
Harley Davidson FLHXXX 2011
Harley Davidson FLHXXX 2012
Harley Davidson FLHXXX 2013
Harley Davidson FLST 2006
Harley Davidson FLST 2007
Harley Davidson FLST 2008
Harley Davidson FLST 2009
Harley Davidson FLST 2010
Harley Davidson FLST 2011
Harley Davidson FLST 2012
Harley Davidson FLST 2013
Harley Davidson FLST 2014
Harley Davidson FLST 2015
Harley Davidson FLST 2016
Harley Davidson FLST 2017
Harley Davidson FLT 2007
Harley Davidson FLT 2008
Harley Davidson FLT 2009
Harley Davidson FLT 2010
Harley Davidson FLT 2011
Harley Davidson FLT 2012
Harley Davidson FLT 2013
Harley Davidson FLT 2014
Harley Davidson FLT 2015
Harley Davidson FLT 2016
Harley Davidson FXD 2006
Harley Davidson FXD 2007
Harley Davidson FXD 2008
Harley Davidson FXD 2009
Harley Davidson FXD 2010
Harley Davidson FXD 2011
Harley Davidson FXD 2012
Harley Davidson FXD 2013
Harley Davidson FXD 2014
Harley Davidson FXD 2015
Harley Davidson FXD 2016
Harley Davidson FXD 2017
Harley Davidson FXST 2007
Harley Davidson FXST 2008
Harley Davidson FXST 2009
Harley Davidson FXST 2010
Harley Davidson FXST 2011
Harley Davidson FXST 2012
Harley Davidson FXST 2013
Harley Davidson FXST 2014
Harley Davidson FXST 2015
Harley Davidson FXST 2016
Harley Davidson FXST 2017
