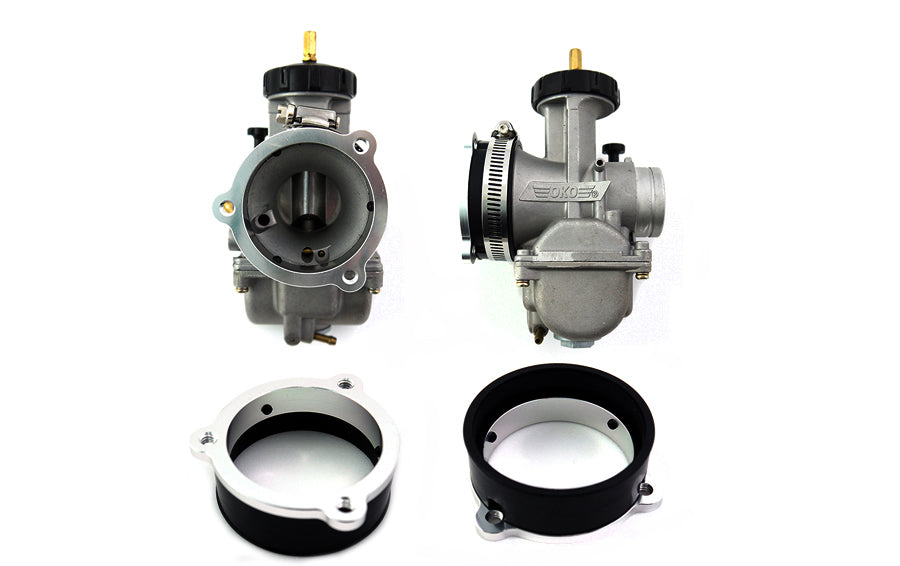

Wyatt Gatling 30007A Air Cleaner Adapter Flange

Air cleaner adapter for OKO 34mm and 38mm and 42mm and 45mm flat side carburetors. The adapter will mount CV type air cleaners to said carburetors. Installation is by clamp on rubber to spigot and inch3 inch set screws for added support.

The Wyatt Gatling 30007A Air Cleaner Adapter Flange is constructed of hard rubber and made to accept CV pattern air cleaners. Its flange features 3-1/4-inch tapped holes that are bonded to a rubber coupling for attachment to the carburetor spigot.

This adapter installs by clamping onto the carburetor inlet and mounts to the carburetor spigot with a set of screws. The carburetor must be supported by a breather combination bracket on 1993–2017 models or by a steel support strap on pre-1993 Big Twins.

Designed for use with compatible carburetor and air cleaner configurations, this adapter provides a direct mounting solution for CV pattern air cleaners. It is supplied as one unit and is manufactured in Taiwan.

Features:

• Construction: Made from hard rubber.
• Air Cleaner Compatibility: Made to accept CV pattern air cleaners.
• Flange: Features 3-1/4-inch tapped holes bonded to the rubber coupling.
• Installation: Clamps onto the carburetor inlet and mounts to the carburetor spigot with a set of screws.
• Support Requirement: Carburetor support is required with a breather combination bracket on 1993–2017 models or a steel support strap on pre-1993 Big Twins.
• Unit of Measure: Each.
• Country of Origin: Taiwan.
