Volt Tech XL Replica Magneto Driveshaft Assembly 32-1680

XL Replica magneto driveshaft assembly comes assembled with hex top gear and cast iron base with white zinc finish.

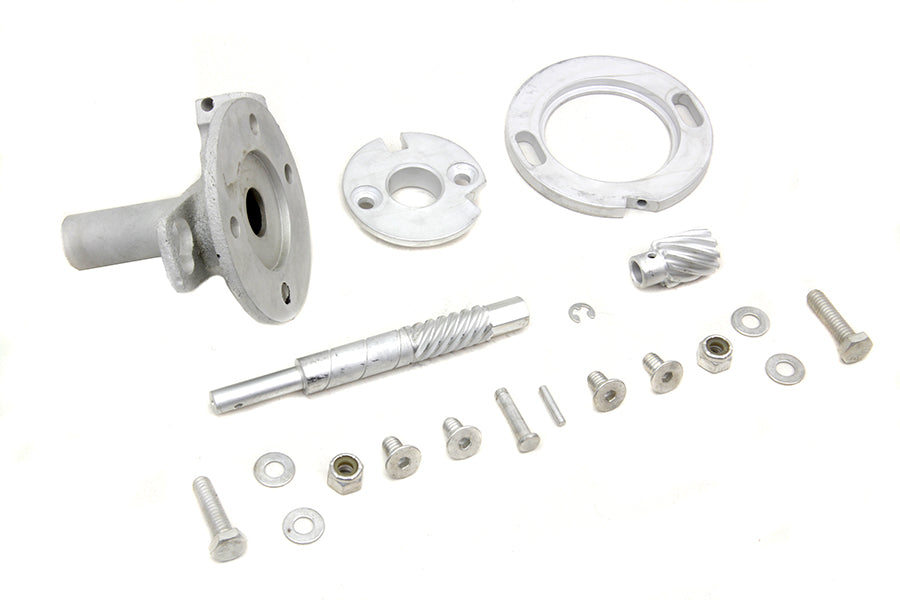

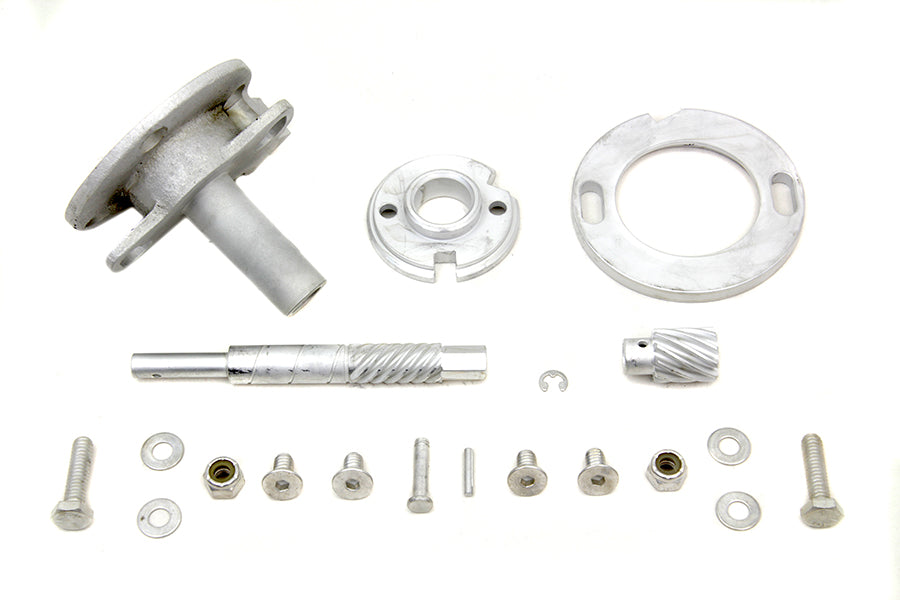

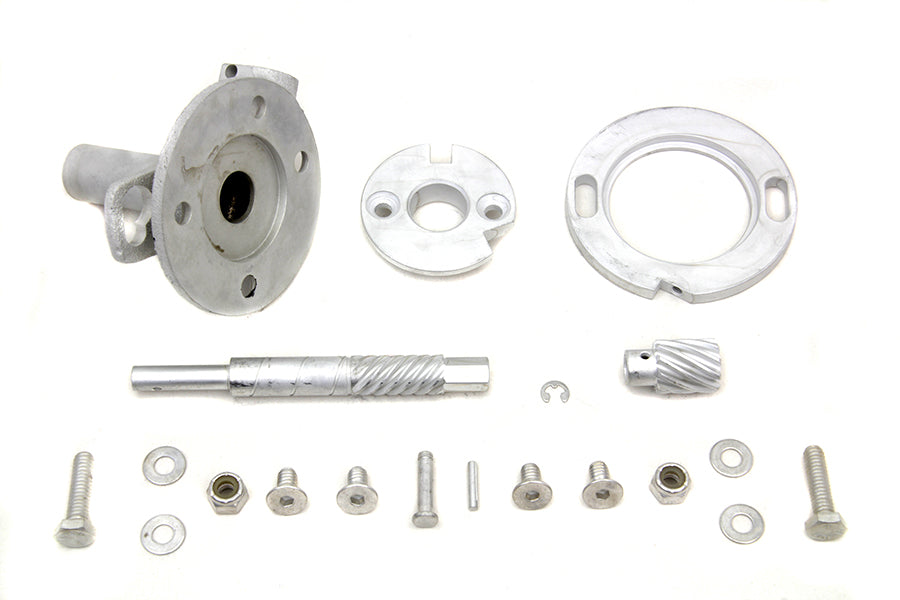

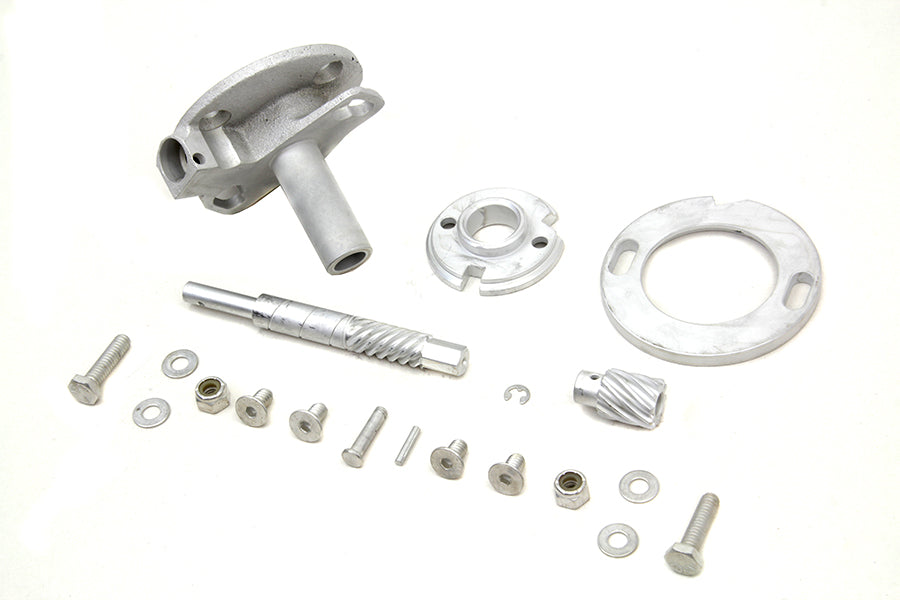

The Volt Tech XL Replica Magneto Driveshaft Assembly, SKU 32-1680, recreates the Sportster advance mechanism factory supplied from 1965 through 1970 on XLCH models. This kit includes a cast iron base with pre-installed bushings, drive ring, and center hub, all finished in cadmium white zinc. The assembly also includes the spiral drive tachometer component as original.

The drive gear must be installed with a drive gear pin. During installation, press the pin into place and grind off any excess length. The base accepts an EX drive magneto unit, cable-driven gear, and a 34 1/4-inch tachometer cable. The tachometer drive gear and cable are available separately, and the magneto head must be ordered separately.

For related components, the manufacturer suggests using this assembly with the Volt Tech 32-1298 Magneto Assembly without Shaft, 36-0514 Magneto Tachometer Cable Driven Gear, and 36-0513 Black Magneto Tachometer Cable. The kit is listed for 1957 through 1966 Harley-Davidson XL models.

Features:

• Construction: Cast iron base with pre-installed bushings, drive ring, and center hub
• Finish: Cadmium white zinc finish on the assembly components
• Design: XL replica Sportster advance mechanism based on the factory-supplied XLCH design
• Drive Components: Includes the spiral drive tachometer component as original
• Installation: Drive gear requires a drive gear pin; press the pin into place and grind off excess length
• Tachometer Support: Base accepts a cable-driven gear and a 34 1/4-inch tachometer cable
• Service Notes: Tachometer drive gear and cable are available separately; magneto head must be ordered separately
• Suggested Use: Manufacturer suggests use with Volt Tech 32-1298 Magneto Assembly without Shaft, 36-0514 Magneto Tachometer Cable Driven Gear, and 36-0513 Black Magneto Tachometer Cable
• Fitment: Listed for 1957 through 1966 Harley-Davidson XL models

Fitment:
Harley Davidson K 1952
Harley Davidson K 1953
Harley Davidson K 1954
Harley Davidson K 1955
Harley Davidson K 1956
Harley Davidson XL 1957
Harley Davidson XL 1958
Harley Davidson XL 1959
Harley Davidson XL 1960
Harley Davidson XL 1961
Harley Davidson XL 1962
Harley Davidson XL 1963
Harley Davidson XL 1964
Harley Davidson XL 1965
Harley Davidson XL 1966
Harley Davidson XL 1967
Harley Davidson XL 1968
Harley Davidson XL 1969
Harley Davidson XL 1970
