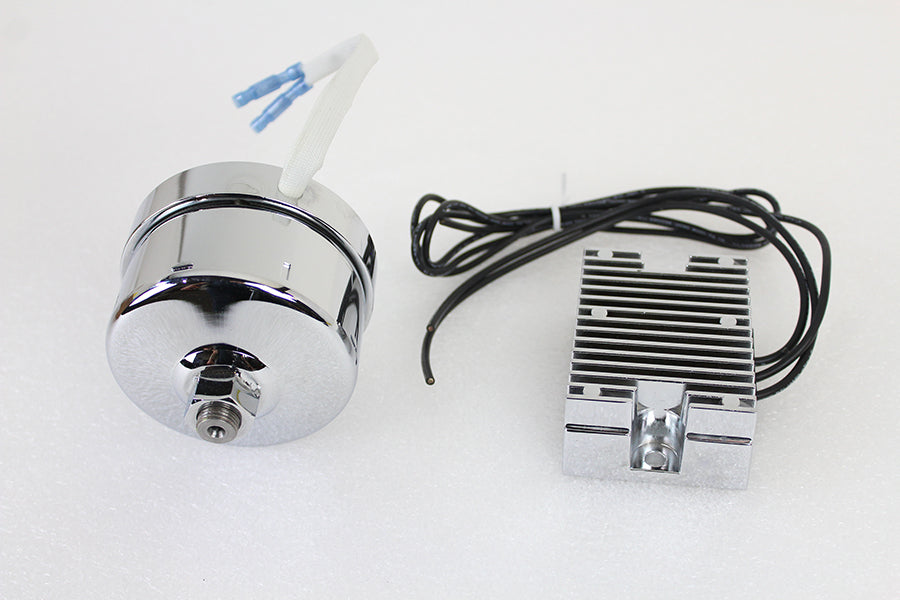

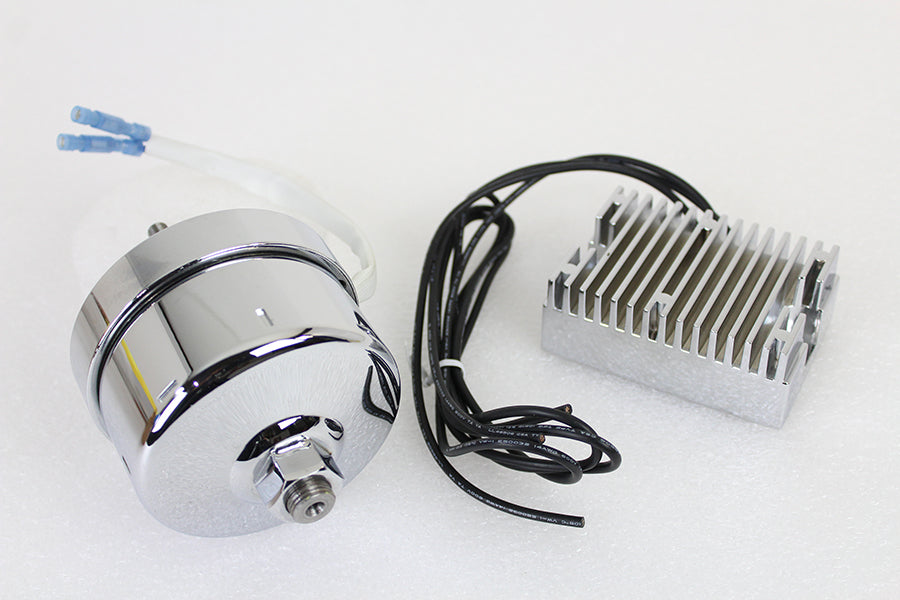

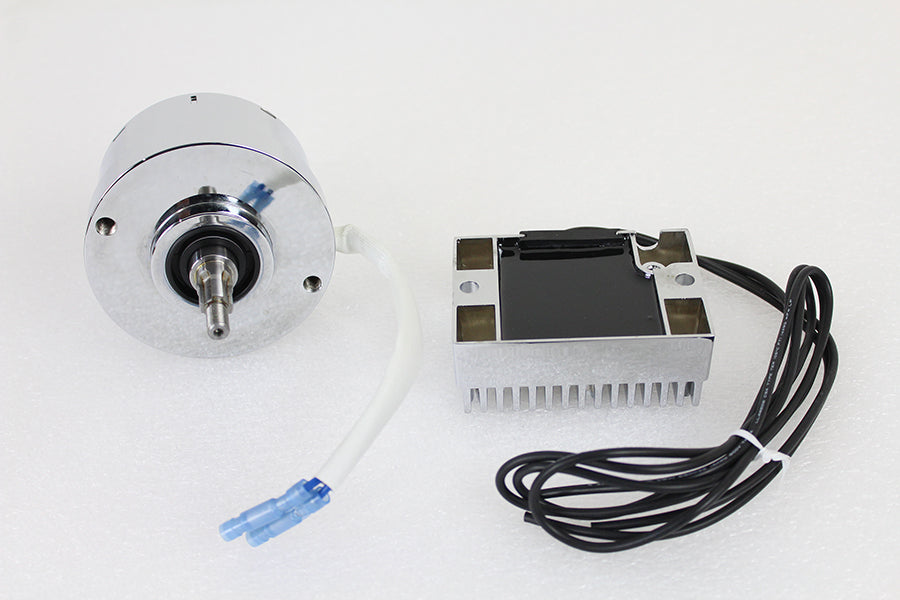

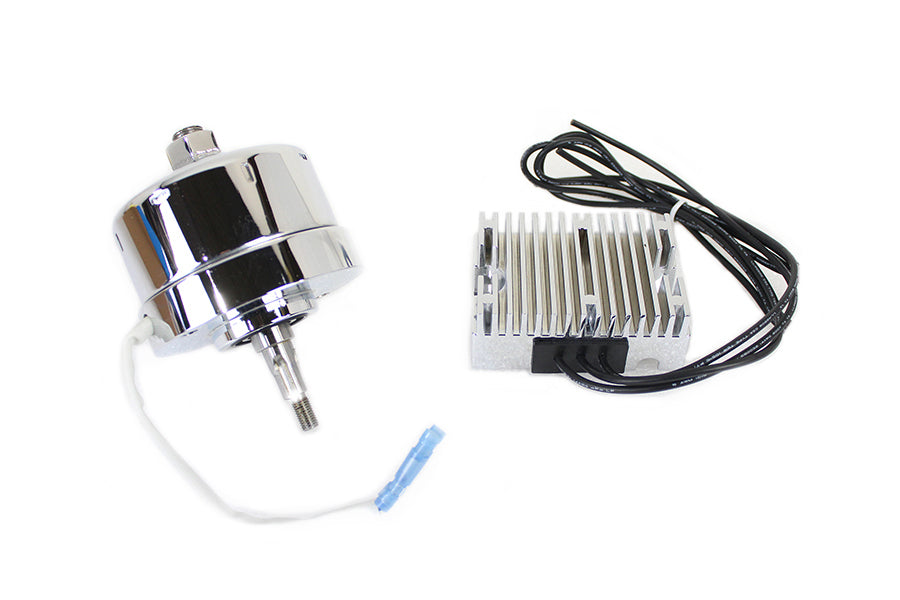

Volt Tech 32-0372 Chrome 17 Amp Alternator Generator Conversion Kit

Compact generator alternator conversion kit replaces original generator and regulator. The 2 short wires from the regulators go to alternator termincals long wire. Includes chrome alternator and regulator.

The Volt Tech 32-0372 Chrome 17 Amp Alternator Generator Conversion Kit is designed as a stronger-than-stock charging solution featuring a billet housing for accurate alignment and a stress-resistant shaft. It produces 17 amps at 1,000 rpm and uses 5/16-24 mounting holes for screws. The kit includes a 13-tooth drive gear configuration for Big Twin applications and a 14-tooth configuration for Sportster applications.

This kit can be used on 1957-1983 XL and 1941-1969 FL models when the generator bolt holes in the cases are drilled to 5/16-24. A HeliCoil kit can be used to convert 12-volt generators with 5/16-24 threads to 1/4-24 threads for early mounting bolt sets. On pre-1958 FL and G models, the holes may need to be enlarged to 5/16 inch to accept the larger screws.

The black finned regulator is not built in and must be mounted remotely. The kit cannot be used with a mini battery identified as 12N55A-3B. The outer cover with the large hex nut houses the rotor magnets in a stainless steel shell. Mounting screws, gasket and gear kit should be ordered for the specific application. Suggested supporting items include Volt Tech gear kits 32-0204 and 32-0983, manufacturer replacement seal PHLE TC1835 and Thread Repair Kit 16-0920.

Features:

• Construction: Billet housing for accurate alignment and a stress-resistant shaft.
• Output: Produces 17 amps at 1,000 rpm.
• Mounting: Alternators have 5/16-24 mounting holes for screws.
• Drive Gears: 13-tooth drive gears are for Big Twin applications, while 14-tooth drive gears are for Sportster applications.
• Application: Can be used on 1957-1983 XL and 1941-1969 FL models when the generator case bolt holes are drilled to 5/16-24.
• Regulator: Black finned regulator is not built in and must be mounted remotely.
• Battery Limitation: Cannot be used with a 12N55A-3B mini battery.
• Weight: 3 lbs.

Fitment:
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson FL 1965
Harley Davidson FL 1966
Harley Davidson FL 1967
Harley Davidson FL 1968
Harley Davidson FL 1969
Harley Davidson G 1936
Harley Davidson G 1937
Harley Davidson G 1938
Harley Davidson G 1939
Harley Davidson G 1940
Harley Davidson G 1941
Harley Davidson G 1942
Harley Davidson G 1943
Harley Davidson G 1944
Harley Davidson G 1945
Harley Davidson G 1946
Harley Davidson G 1947
Harley Davidson G 1948
Harley Davidson G 1949
Harley Davidson G 1950
Harley Davidson G 1951
Harley Davidson G 1952
Harley Davidson G 1953
Harley Davidson G 1954
Harley Davidson G 1955
Harley Davidson G 1956
Harley Davidson G 1957
Harley Davidson G 1958
Harley Davidson G 1959
Harley Davidson G 1960
Harley Davidson G 1961
Harley Davidson G 1962
Harley Davidson G 1963
Harley Davidson G 1964
Harley Davidson G 1965
Harley Davidson G 1966
Harley Davidson G 1967
Harley Davidson G 1968
Harley Davidson G 1969
Harley Davidson G 1970
Harley Davidson G 1971
Harley Davidson G 1972
Harley Davidson G 1973
Harley Davidson W 1936
Harley Davidson W 1937
Harley Davidson W 1938
Harley Davidson W 1939
Harley Davidson W 1940
Harley Davidson W 1941
Harley Davidson W 1942
Harley Davidson W 1943
Harley Davidson W 1944
Harley Davidson W 1945
Harley Davidson W 1946
Harley Davidson W 1947
Harley Davidson W 1948
Harley Davidson W 1949
Harley Davidson W 1950
Harley Davidson W 1951
Harley Davidson W 1952
Harley Davidson XL 1958
Harley Davidson XL 1959
Harley Davidson XL 1960
Harley Davidson XL 1961
Harley Davidson XL 1962
Harley Davidson XL 1963
Harley Davidson XL 1964
Harley Davidson XL 1965
Harley Davidson XL 1966
Harley Davidson XL 1967
Harley Davidson XL 1968
Harley Davidson XL 1969
Harley Davidson XL 1970
Harley Davidson XL 1971
Harley Davidson XL 1972
Harley Davidson XL 1973
Harley Davidson XL 1974
Harley Davidson XL 1975
Harley Davidson XL 1976
Harley Davidson XL 1977
Harley Davidson XL 1978
Harley Davidson XL 1979
Harley Davidson XL 1980
Harley Davidson XL 1981
Harley Davidson XL 1982
