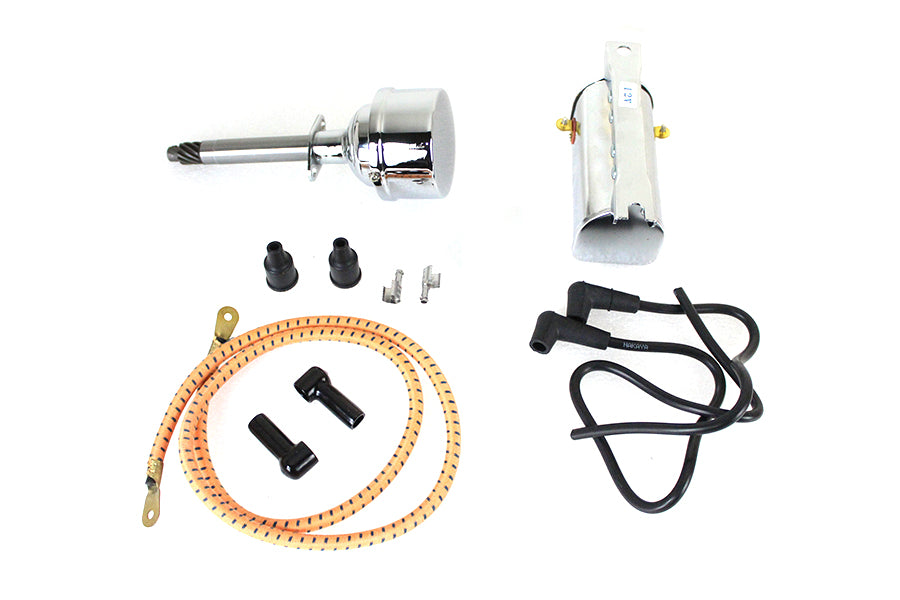

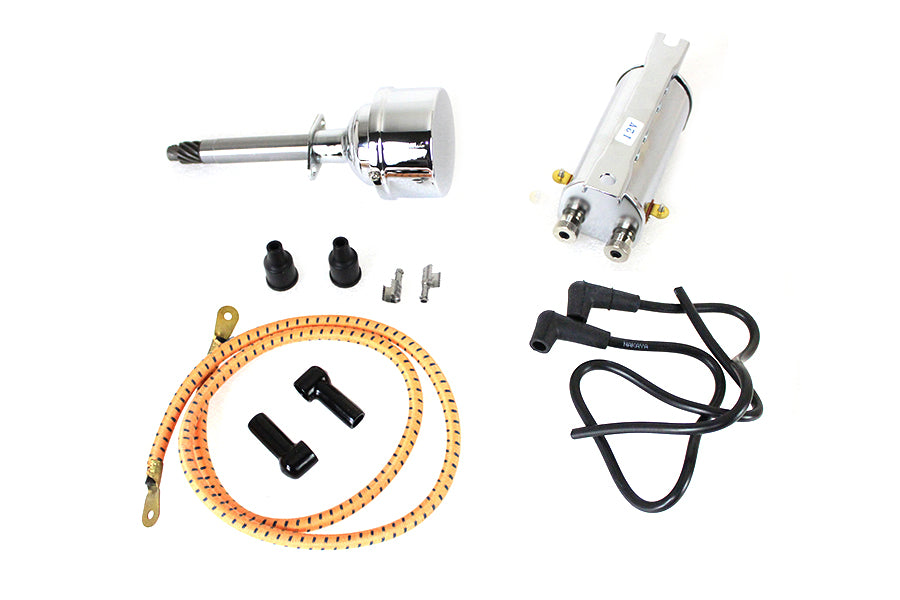

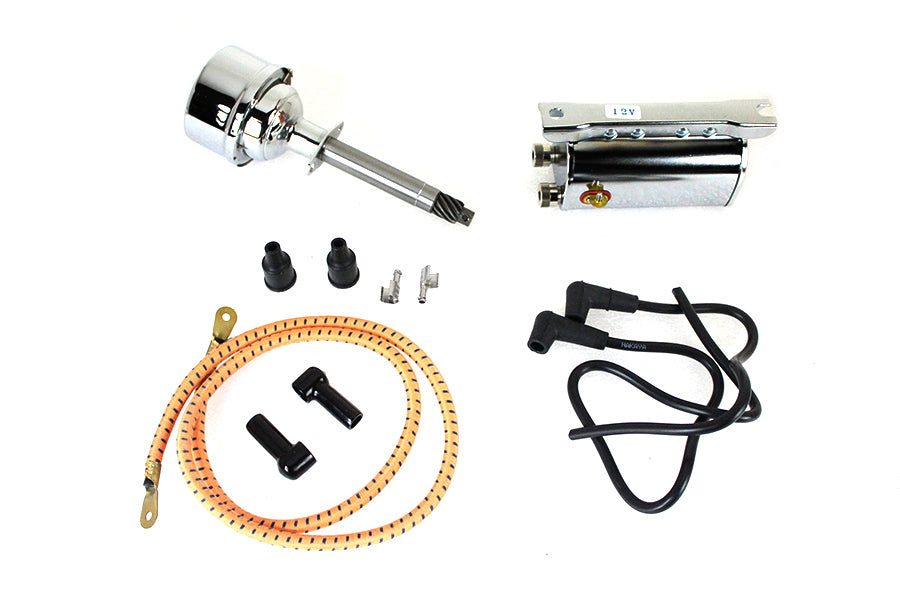

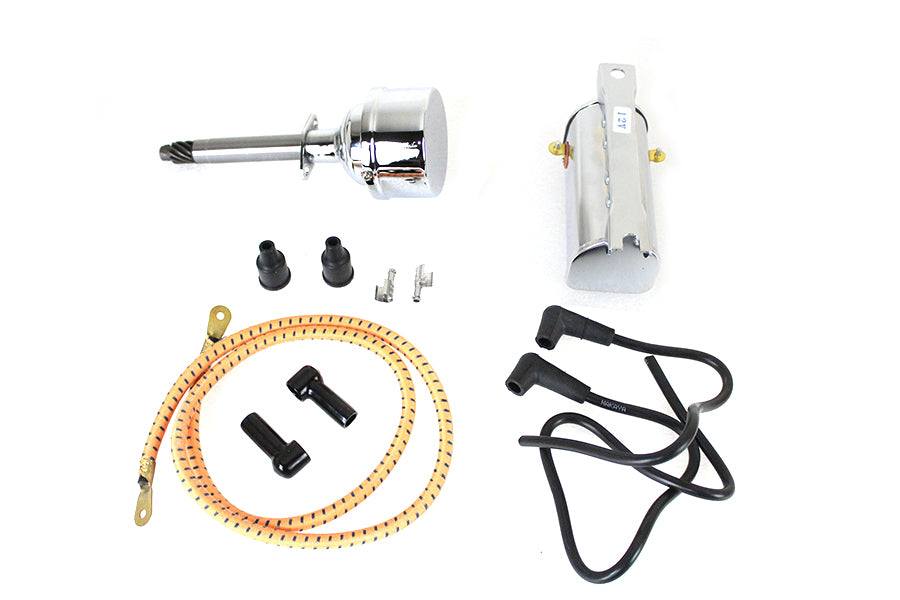

Volt Tech 12 Volt Distributor and Coil Kit, SKU 32-1504

12 volt distributor and coil kit features a chrome automatic advance distributor a metal jacketed chrome coil and vintage wire set with boots

The Volt Tech 12 Volt Distributor and Coil Kit, SKU 32-1504, is designed for listed 1948–1957 Harley-Davidson FL applications. This kit is supplied as a 12-volt distributor and coil kit for ignition system service and installation.

Installation requires removal of the front head. A hole drilled in the plate can help set advance during timing. The unit must be timed with the cylinder at top dead center, and the cam has no timing mark. Both lobes should open and close the points; the skinny lobe times the front cylinder. Refer to the service manual for timing information.

The points are positioned on the front side for easier adjustment. The manufacturer suggests using this kit with the Volt Tech 32-7797 Ignition Advance with Points Plate Assembly and 42-0340 Chrome Distributor Cover. Suggested related items include the 32-7520 Chrome 12 Volt Ignition Coil with 3.0 Ohms, 32-8072 V-Fire Overhead Valve Auto Advance Distributor Chrome, 32-0973 9mm Vintage Cloth Spark Plug Wire Kit, and 8146-10 Cadmium Circuit Breaker Screws.

SKU 32-1504 is supplied as a kit. Installation instructions are referenced by the manufacturer at http://www.vtwinmfg.com/Instructions/32/32-1504.pdf.

Features:

• Brand: Volt Tech
• Part Number: 32-1504
• Voltage: 12 volt
• Product Type: Distributor and coil kit
• Fitment: 1948–1957 Harley-Davidson FL
• Timing: Must be timed with the cylinder at top dead center
• Installation Note: Requires removal of the front head
• Adjustment: Points are positioned on the front side for easier adjustment
• Timing Note: The cam has no timing mark
• Suggested Pairing: 32-7797 Ignition Advance with Points Plate Assembly and 42-0340 Chrome Distributor Cover

Fitment:
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
