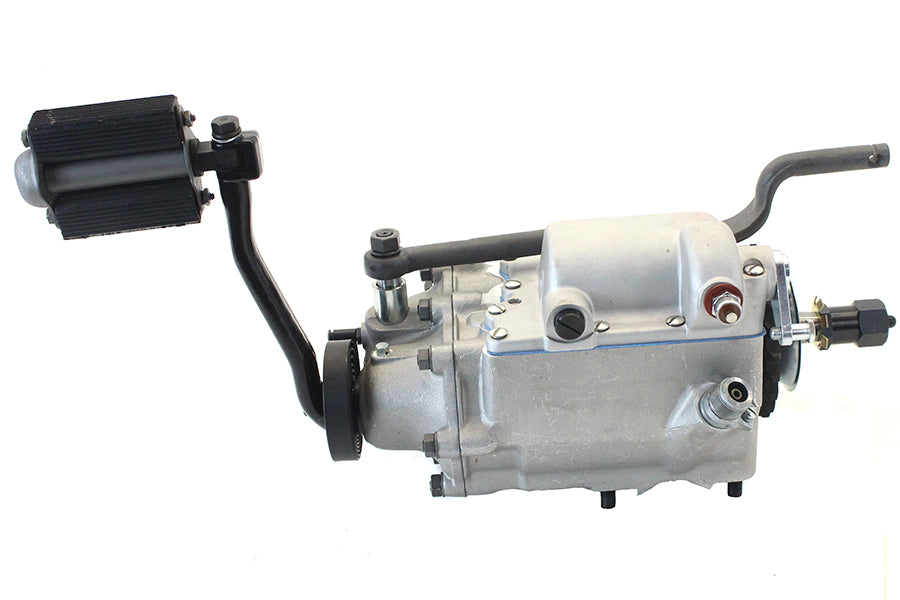

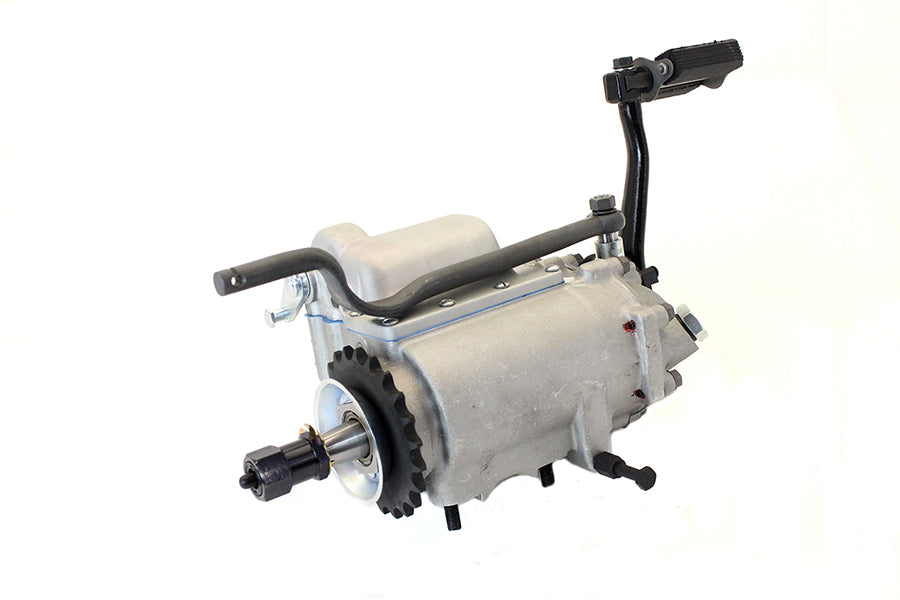

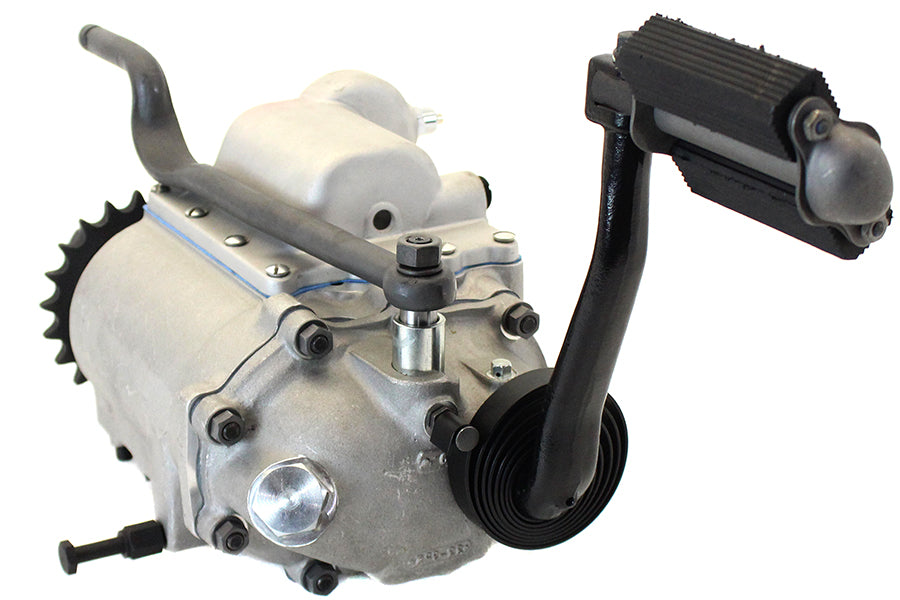

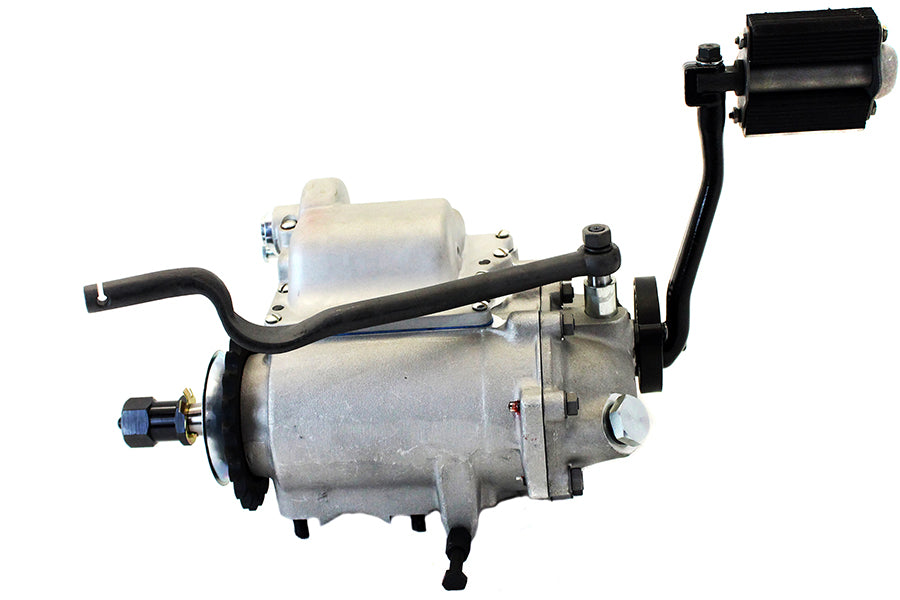

Motorshop 17-2500 Replica 4-Speed Jockey Transmission for 1941-1950 Harley-Davidson FL

Replica 4-speed transmission is jockey type with kicker cover. Aluminum kick starter cover features a natural finish. Kicker arm and spring features a gloss black painted finish.

The Motorshop 17-2500 Replica 4-Speed Jockey Transmission is a fully assembled kick-starter-only transmission designed for 1941 through 1950 Harley-Davidson FL applications. It features an FL-style 3.00:1.00 first gear ratio, a 2:1 ratio speedometer drive gear, and a handshift pattern that shifts one gear back and three gears forward.

This assembly includes an original cast case with an early-style main drive gear, 44 rollers, neutral switch, internal parts, original-style aluminum kicker cover and components, clutch rod, throwout bearing, and a natural-finish ratchet top with chrome dust cover. The included one-piece black kicker arm, mount studs, hub nut, 23-tooth drive sprocket, seal, and key provide the listed transmission components in one assembled unit.

The Motorshop 17-2500 is supplied with a bill of sale only, and no Manufacturer's Statement of Origin is required. Suggested related items include the 4-Speed Jockey Top Assembly, Replica Kick Starter Kit, and Parkerized Clutch Release Arm. Accessory items are listed below for reference.

Features:

• Application: Fits 1941 through 1950 Harley-Davidson FL models.
• Transmission Type: Fully assembled, kick-starter-only transmission.
• Gear Ratio: FL-style 3.00:1.00 first gear ratio.
• Shifting Pattern: Handshift transmission shifts one gear back and three gears forward.
• Speedometer Drive: Includes a 2:1 ratio speedometer drive gear.
• Case and Gearing: Original cast case with early-style main drive gear and 23-tooth drive sprocket.
• Included Components: Includes 44 rollers, neutral switch, internal parts, original-style aluminum kicker cover and components, clutch rod, throwout bearing, natural-finish ratchet top with chrome dust cover, one-piece black kicker arm, mount studs, hub nut, seal, and key.
• Documentation: Bill of Sale only; no Manufacturer's Statement of Origin is required.

Fitment:
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson UL 1937
Harley Davidson UL 1938
Harley Davidson UL 1939
Harley Davidson UL 1940
Harley Davidson UL 1941
Harley Davidson UL 1942
Harley Davidson UL 1943
Harley Davidson UL 1944
Harley Davidson UL 1945
Harley Davidson UL 1946
Harley Davidson UL 1947
Harley Davidson UL 1948
