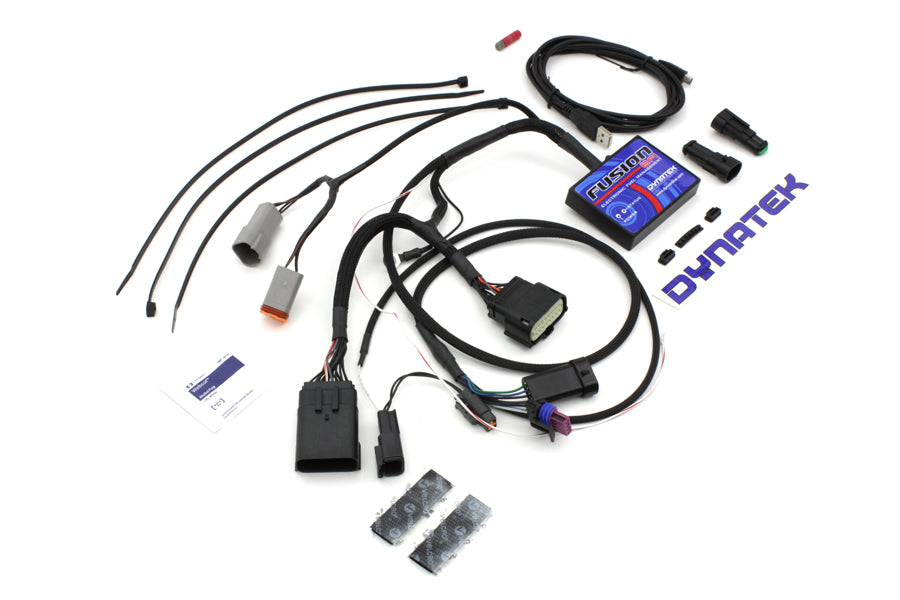

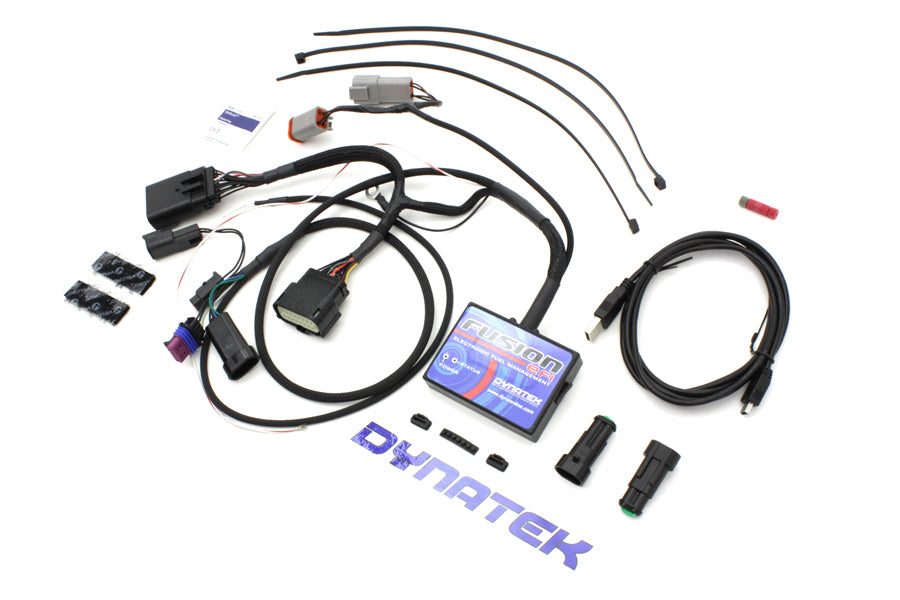

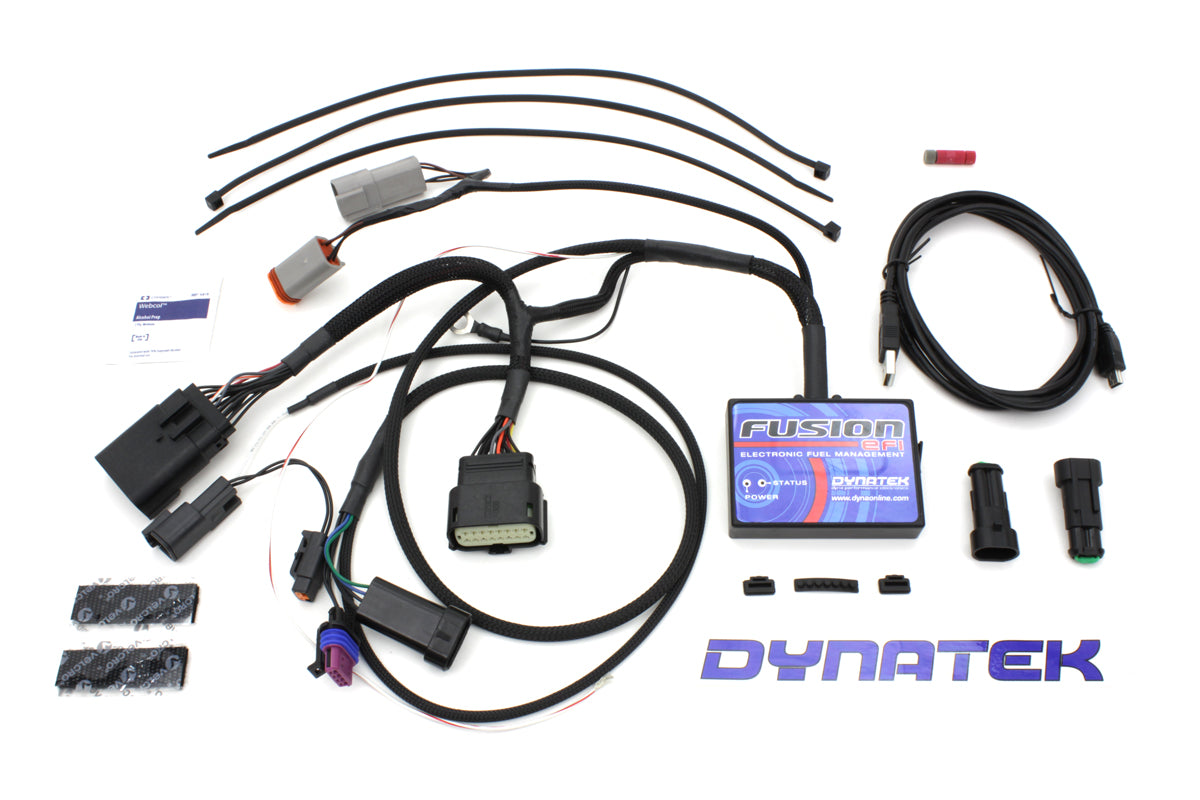

Dyna Tek Dynatek Fusion EFI Ignition Module DFE-15-009

Dyna Fusion EFI module with fuel and ignition control is for XL 883 models. The new Dynatek Fusion EFI bases fuel adjustments on input from RPM and throttle positions.

The Dyna Tek Dynatek Fusion EFI Ignition Module, part number DFE-15-009, provides adjustable fuel delivery and spark advance control for supported motorcycles. Its mapping system uses 250 RPM resolution and 10 throttle-position columns, providing up to 640 mapping points for fuel and an equal number for ignition timing.

The module supports individual-cylinder and gear-position mapping, along with a built-in two-position map-switching function. Warm-up fuel adjustments can be based on engine temperature, while the enhanced accelerator-pump utility helps refine fuel delivery during throttle changes. The unit is USB powered from a computer for setup and adjustment.

Timing adjustments of up to plus or minus 20 degrees are available per cylinder or per gear. The Dyna Tek Dynatek Fusion EFI Ignition Module DFE-15-009 fits 2010, 2011, 2012 and 2013 Harley-Davidson XL applications.

Features:

• Fuel and Spark Mapping: Adjusts fuel delivery and spark advance with 250 RPM resolution and 10 throttle-position columns.
• Mapping Points: Provides up to 640 individual mapping points for fuel and an equal amount for ignition timing.
• Cylinder and Gear Mapping: Supports individual-cylinder and gear-position mapping.
• Map Switching: Includes a built-in two-position map-switching function.
• Warm-Up Fuel Adjustment: Supports fuel adjustments based on engine temperature.
• Accelerator-Pump Utility: Includes an enhanced accelerator-pump utility.
• Timing Adjustment: Allows plus or minus 20 degrees of timing adjustment per cylinder or per gear.
• Computer Connection: USB powered from a computer.
• Fitment: Fits 2010, 2011, 2012 and 2013 Harley-Davidson XL applications.

Fitment:
Harley Davidson XL 2010
Harley Davidson XL 2011
Harley Davidson XL 2012
Harley Davidson XL 2013
