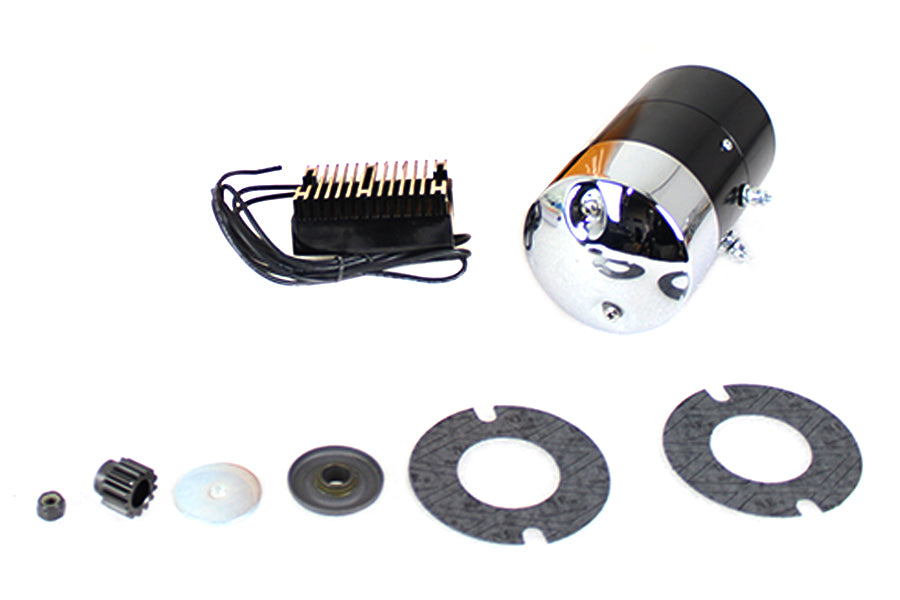

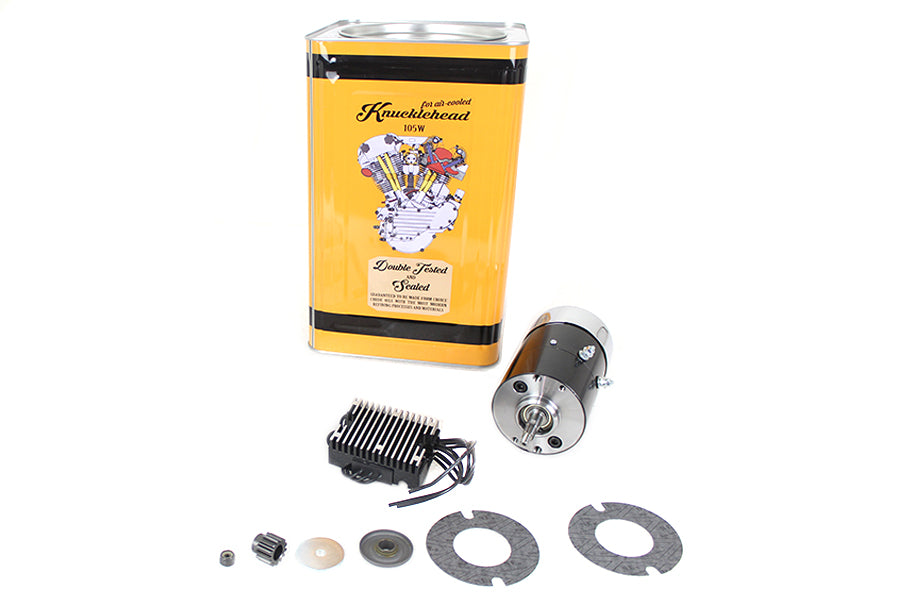

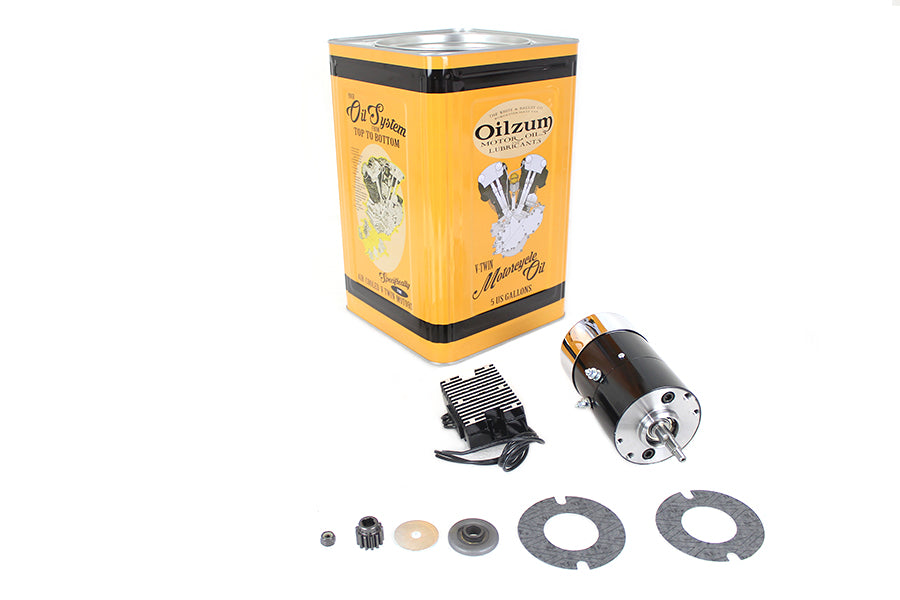

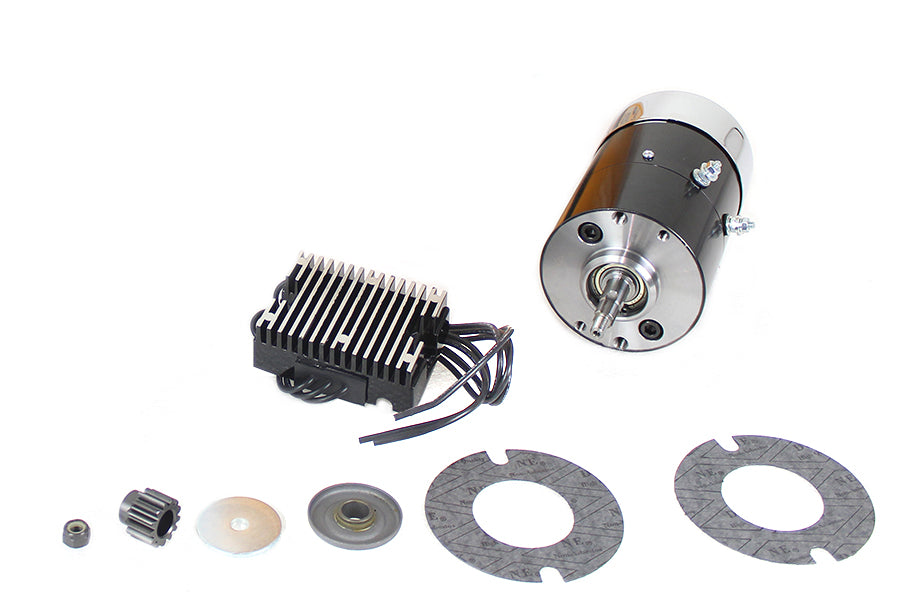

Volt Tech 32-1873 Big Twin 12 Volt Alternator Kit

This 32E Knucklehead Panhead and flat side Shovelhead includes a black 12 volt alternator with a chrome end cover. Kit also includes black finned solid state regulator and gear kit.

The Volt Tech 32-1873 Big Twin 12 Volt Alternator Kit replaces 1936–1957 three-brush and 1958–1969 two-brush generators with an alternator featuring the original 32E shape. It fits 1941–1950 Harley-Davidson FL models and can be installed on 1958–1969 FL or 1958–1985 XL models using 5/16-inch mounting screws.

The alternator includes a chrome end cover. A finned regulator must be relocated from the original relay position on the right side of the cam cover. The 32E alternator kit can also be fitted with 1/4-inch-24 screws, a generator strap and a shim kit for an original-look installation. Mount bolts and mounting screws are required separately, and the mounting flange and generator body accommodate 1/4-inch-24 or 5/16-inch-24 mounting screws. On pre-1958 FL and G models, enlarging the mounting holes to 5/16 inch is recommended for the larger screws.

Output is rated at 3 amps at 750 RPM, 5 amps at 1,000 RPM, 7.8 amps at 2,000 RPM, 8.5 amps at 3,000 RPM and 8.9 amps at 4,000 RPM. The supplier suggests using this kit with the #42-0438 Black Generator 3-Brush End Cover. The kit is supplied as a complete alternator kit and is manufactured in Taiwan.

Features:

• Replacement: Replaces 1936–1957 three-brush and 1958–1969 two-brush generators.
• Shape: Features the original 32E alternator shape.
• Fitment: Fits 1941–1950 Harley-Davidson FL models and can be installed on 1958–1969 FL or 1958–1985 XL models using 5/16-inch mounting screws.
• Output: Produces 3 amps at 750 RPM, 5 amps at 1,000 RPM, 7.8 amps at 2,000 RPM, 8.5 amps at 3,000 RPM and 8.9 amps at 4,000 RPM.
• End Cover: Includes a chrome end cover.
• Mounting: Mounting bolts and screws are required separately; mounting holes accommodate 1/4-inch-24 or 5/16-inch-24 mounting screws.
• Regulator: The finned regulator must be relocated from the original relay position on the right side of the cam cover.
• Suggested Use: Suggested for use with #42-0438 Black Generator 3-Brush End Cover.
• Accessory Items: 32-0305 - 12 Volt Alternator Kit, 32-0371 - Black 17 Amp 12 Volt Alternator Generator Conversion Kit, 32-1497 - 12 Volt Side Valve Generator to Alternator Conversion Kit

Fitment:
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson EL 1941
Harley Davidson EL 1942
Harley Davidson EL 1943
Harley Davidson EL 1944
Harley Davidson EL 1945
Harley Davidson EL 1946
Harley Davidson EL 1947
Harley Davidson EL 1948
Harley Davidson EL 1949
Harley Davidson EL 1950
Harley Davidson EL 1951
Harley Davidson EL 1952
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson FL 1965
Harley Davidson FL 1966
Harley Davidson FL 1967
Harley Davidson FL 1968
Harley Davidson FL 1969
