Volt Tech 32-1293 Magneto Drive and Base Kit

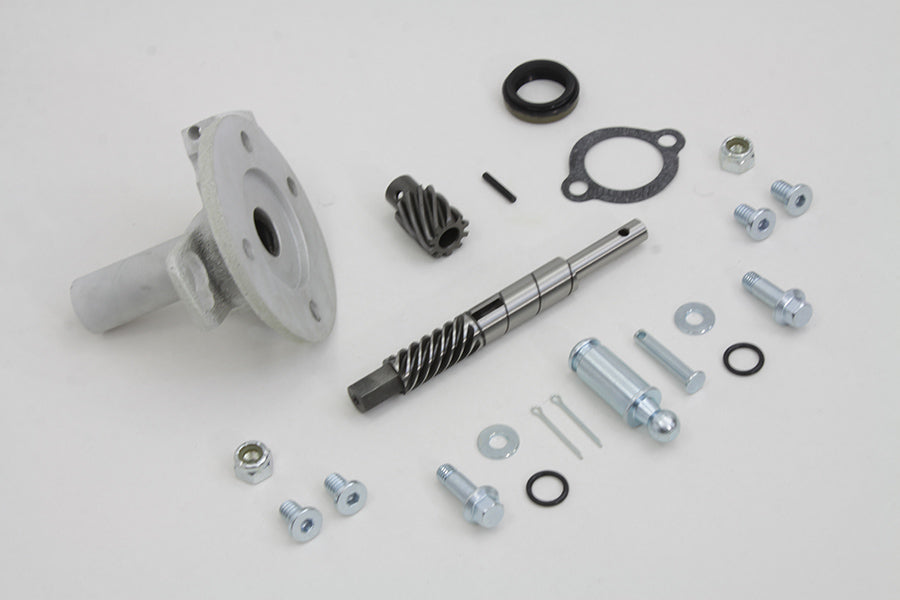

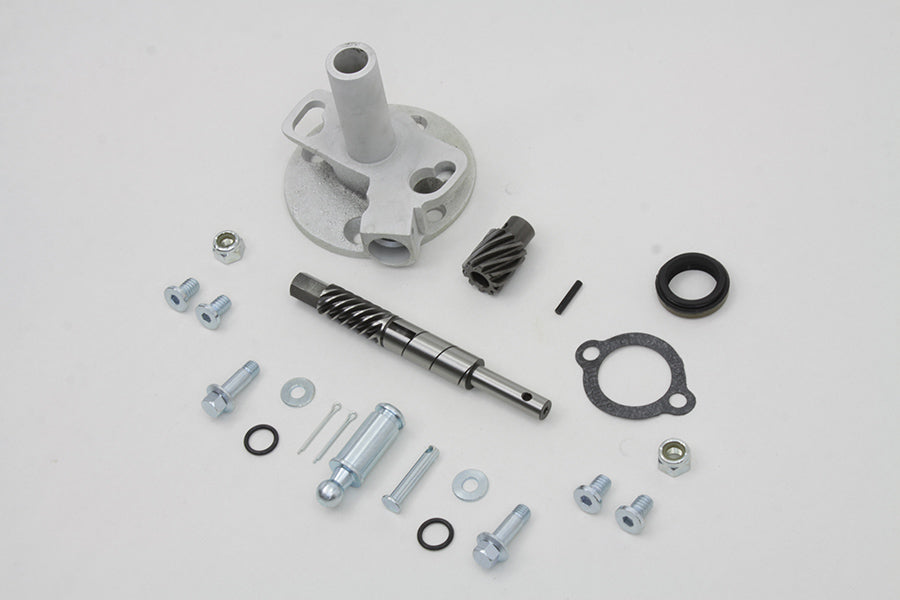

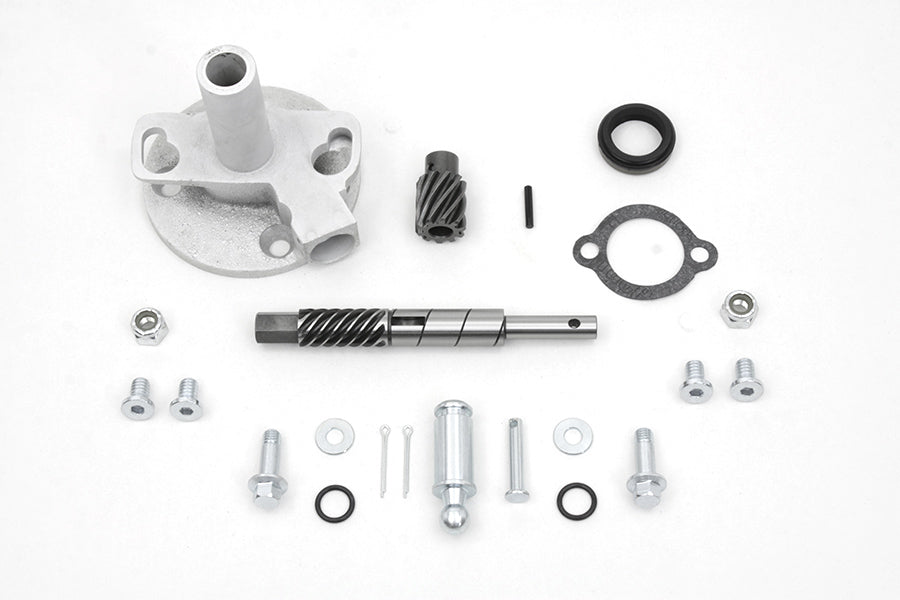

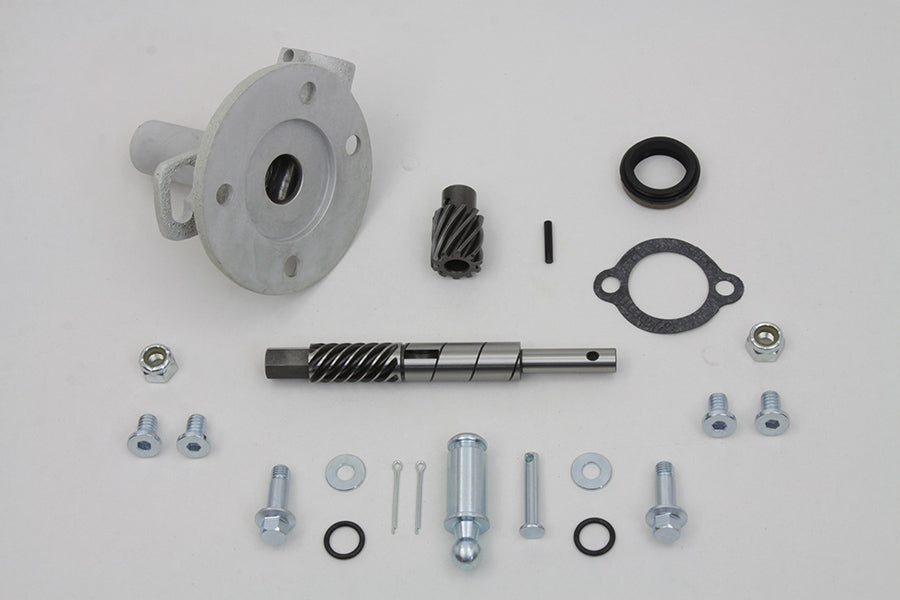

Kit will accept hex drive Magneto. Includes cast base gear pin shaft mount plate tachometer drive plug shouldered mount bolts seal and gasket.

The Volt Tech 32-1293 Magneto Drive and Base Kit is a reproduction of the Sportster advance mechanism supplied from 1965 through 1970 on XLCH models. It includes components made to match the original assembly and is designed for applications requiring the original-style cast base installation.

The cast base accepts the 36-0514 tachometer drive gear and 36-0513 cable. For installation planning, the manufacturer suggests using this kit with the 32-0646 Magneto Base Adapter Plate. The kit is also listed for 1936–1945 Harley-Davidson U models.

The 32-1293 kit is supplied as a complete magneto drive and base solution for restoration and replacement projects. Suggested related products include the 32-1490 Magneto Base Drive Assembly. Accessory items include the 32-0584 Magneto Drive Shaft and Gear Kit, 32-0583 Cast Magneto Base, and 37-1030 Magneto Advance Plate Screw Set.

Features:

• Original-style Sportster advance mechanism: Reproduces the mechanism supplied from 1965 through 1970 on XLCH models.
• Complete component set: Includes components made to match the original assembly.
• Cast base installation: The cast base must be installed as original on XLCH models.
• Tachometer compatibility: The base accepts the 36-0514 tachometer drive gear and 36-0513 cable.
• Suggested adapter plate: Manufacturer suggests use with the 32-0646 Magneto Base Adapter Plate.
• Listed fitment: Fits 1936–1945 Harley-Davidson U models.

Fitment:
Harley Davidson G 1936
Harley Davidson G 1937
Harley Davidson G 1938
Harley Davidson G 1939
Harley Davidson G 1940
Harley Davidson G 1941
Harley Davidson G 1942
Harley Davidson G 1943
Harley Davidson G 1944
Harley Davidson G 1945
Harley Davidson G 1946
Harley Davidson G 1947
Harley Davidson G 1948
Harley Davidson G 1949
Harley Davidson G 1950
Harley Davidson G 1951
Harley Davidson G 1952
Harley Davidson G 1953
Harley Davidson G 1954
Harley Davidson G 1955
Harley Davidson G 1956
Harley Davidson G 1957
Harley Davidson G 1958
Harley Davidson G 1959
Harley Davidson G 1960
Harley Davidson G 1961
Harley Davidson G 1962
Harley Davidson G 1963
Harley Davidson G 1964
Harley Davidson G 1965
Harley Davidson G 1966
Harley Davidson G 1967
Harley Davidson G 1968
Harley Davidson G 1969
Harley Davidson G 1970
Harley Davidson G 1971
Harley Davidson G 1972
Harley Davidson G 1973
Harley Davidson K 1952
Harley Davidson K 1953
Harley Davidson K 1954
Harley Davidson K 1955
Harley Davidson K 1956
Harley Davidson U 1936
Harley Davidson U 1937
Harley Davidson U 1938
Harley Davidson U 1939
Harley Davidson U 1940
Harley Davidson U 1941
Harley Davidson U 1942
Harley Davidson U 1943
Harley Davidson U 1944
Harley Davidson U 1945
Harley Davidson U 1946
Harley Davidson U 1947
Harley Davidson U 1948
Harley Davidson U 1949
Harley Davidson U 1950
Harley Davidson U 1951
Harley Davidson U 1952
Harley Davidson XL 1957
Harley Davidson XL 1958
Harley Davidson XL 1959
Harley Davidson XL 1960
Harley Davidson XL 1961
Harley Davidson XL 1962
Harley Davidson XL 1963
Harley Davidson XL 1964
Harley Davidson XL 1965
Harley Davidson XL 1966
Harley Davidson XL 1967
Harley Davidson XL 1968
Harley Davidson XL 1969
Harley Davidson XL 1970
