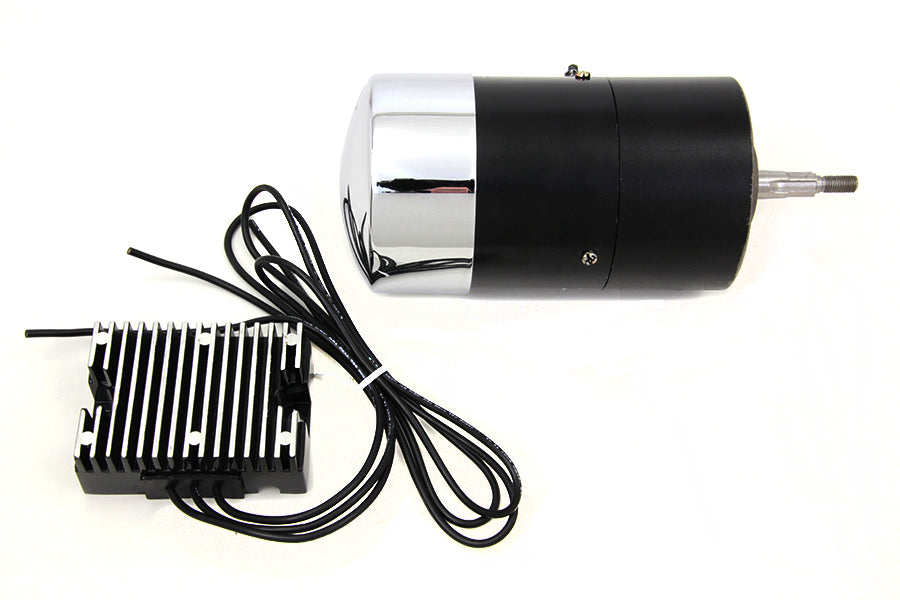

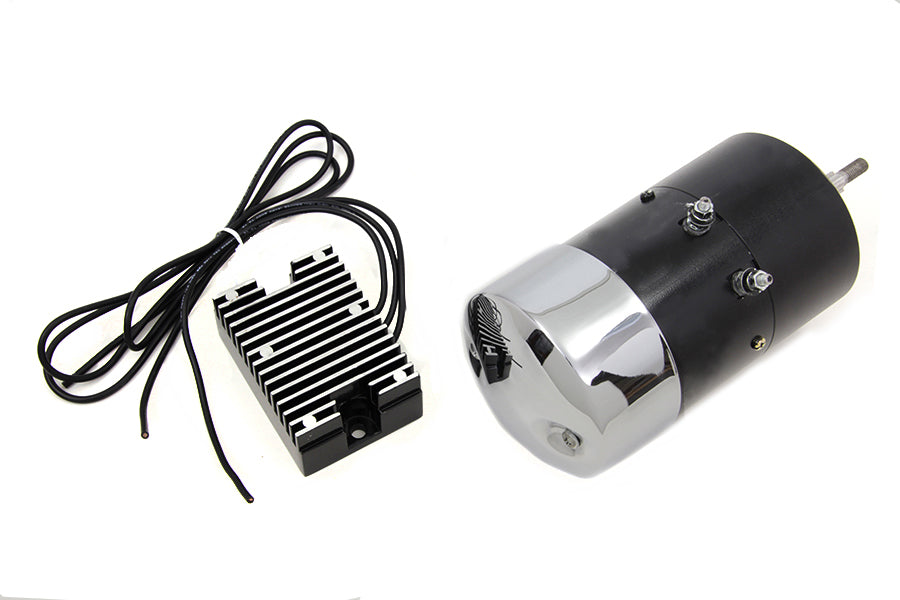

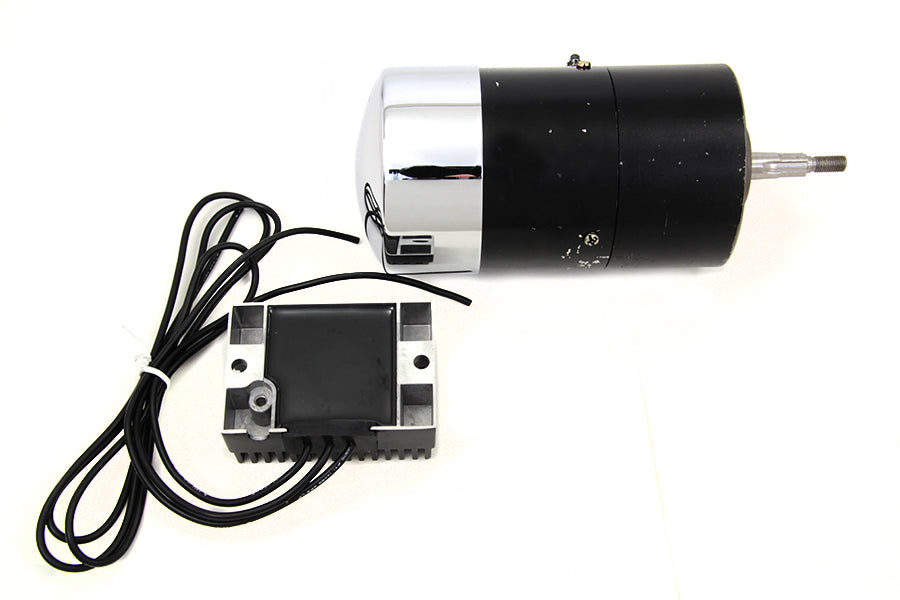

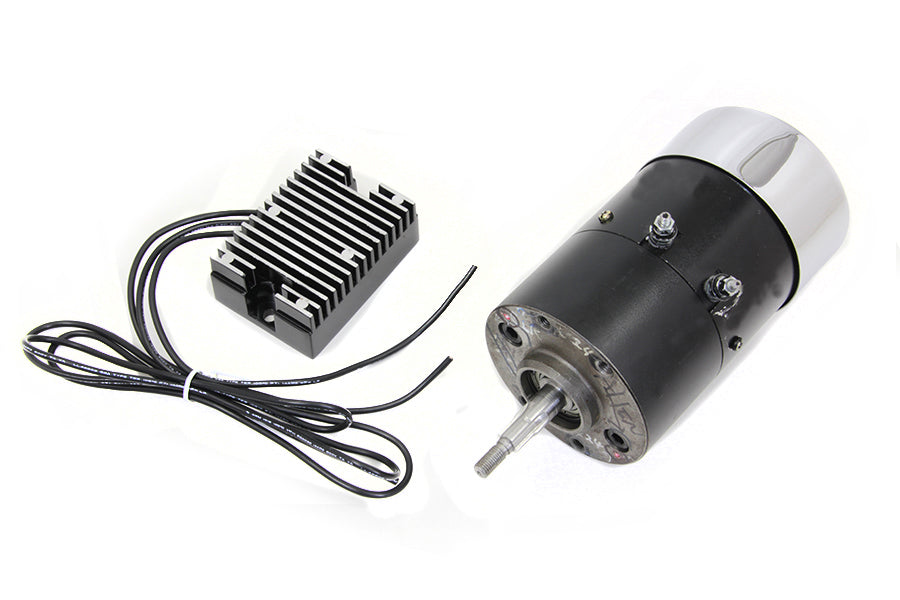

Volt Tech 12 Volt 32E Alternator Kit, SKU 32-1282

Generator to alternator 12 volt 32E conversion kit includes a black body and chrome end cover alternator with a solid state regulator.

The Volt Tech 12 Volt 32E Alternator Kit, SKU 32-1282, is designed for conversion applications using a 12-volt battery system, which must be ordered separately. The regulator must be mounted by a technician as desired. The alternator body uses 1/4-24 threads to fit models equipped with 32E or 52K generators, allowing the use of original screws in applicable installations.

The mounting flange includes holes for 1/4-24 x 5/16-24 mounting screws. The shaft is splined as a 65A/12V generator armature. This alternator replaces 6- and 12-volt, 2- and 3-brush generators on 1958-1969 FL Harley models and replaces 1936-1957 3-brush and 1958-1969 2-brush generators. The correct gear and bolt kit must be ordered for installation.

Technical notes indicate output of 7.8 amps at 2,000 RPM, 8.5 amps at 3,000 RPM, and 8.9 amps at 4,000 RPM. Suggested gear kits include the Volt Tech 45 Generator Gear Kit, SKU 32-1547, and the 13 Tooth Generator Gear Kit, SKU 32-0204. Screws, gear and oil deflector kit, correct mount bolts, gasket, and washers are ordered separately as required. The listed fitment includes 1941-1950 Harley-Davidson FL models.

Features:

• 12-Volt Alternator Kit: Converts applicable generator systems to a 12-volt alternator setup.
• Generator Replacement: Replaces 6- and 12-volt, 2- and 3-brush generators in the stated applications.
• Threaded Alternator Body: Uses 1/4-24 threads for models equipped with 32E or 52K generators.
• Mounting Flange: Includes holes for 1/4-24 x 5/16-24 mounting screws.
• Splined Shaft: Uses a shaft splined as a 65A/12V generator armature.
• Output: Produces 7.8 amps at 2,000 RPM, 8.5 amps at 3,000 RPM, and 8.9 amps at 4,000 RPM.
• Installation Requirements: Requires a separately ordered 12-volt battery system and the correct gear and bolt kit.
• Suggested Gear Kits: Suggested for use with Volt Tech 45 Generator Gear Kit SKU 32-1547 and 13 Tooth Generator Gear Kit SKU 32-0204.

Fitment:
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson EL 1941
Harley Davidson EL 1942
Harley Davidson EL 1943
Harley Davidson EL 1944
Harley Davidson EL 1945
Harley Davidson EL 1946
Harley Davidson EL 1947
Harley Davidson EL 1948
Harley Davidson EL 1949
Harley Davidson EL 1950
Harley Davidson EL 1951
Harley Davidson EL 1952
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson FL 1965
Harley Davidson FL 1966
Harley Davidson FL 1967
Harley Davidson FL 1968
Harley Davidson FL 1969
Harley Davidson W 1936
Harley Davidson W 1937
Harley Davidson W 1938
Harley Davidson W 1939
Harley Davidson W 1940
Harley Davidson W 1941
Harley Davidson W 1942
Harley Davidson W 1943
Harley Davidson W 1944
Harley Davidson W 1945
Harley Davidson W 1946
Harley Davidson W 1947
Harley Davidson W 1948
Harley Davidson W 1949
Harley Davidson W 1950
Harley Davidson W 1951
Harley Davidson W 1952
