V-Twin 74478D V-Fire Overhead Valve Auto Advance Distributor Chrome

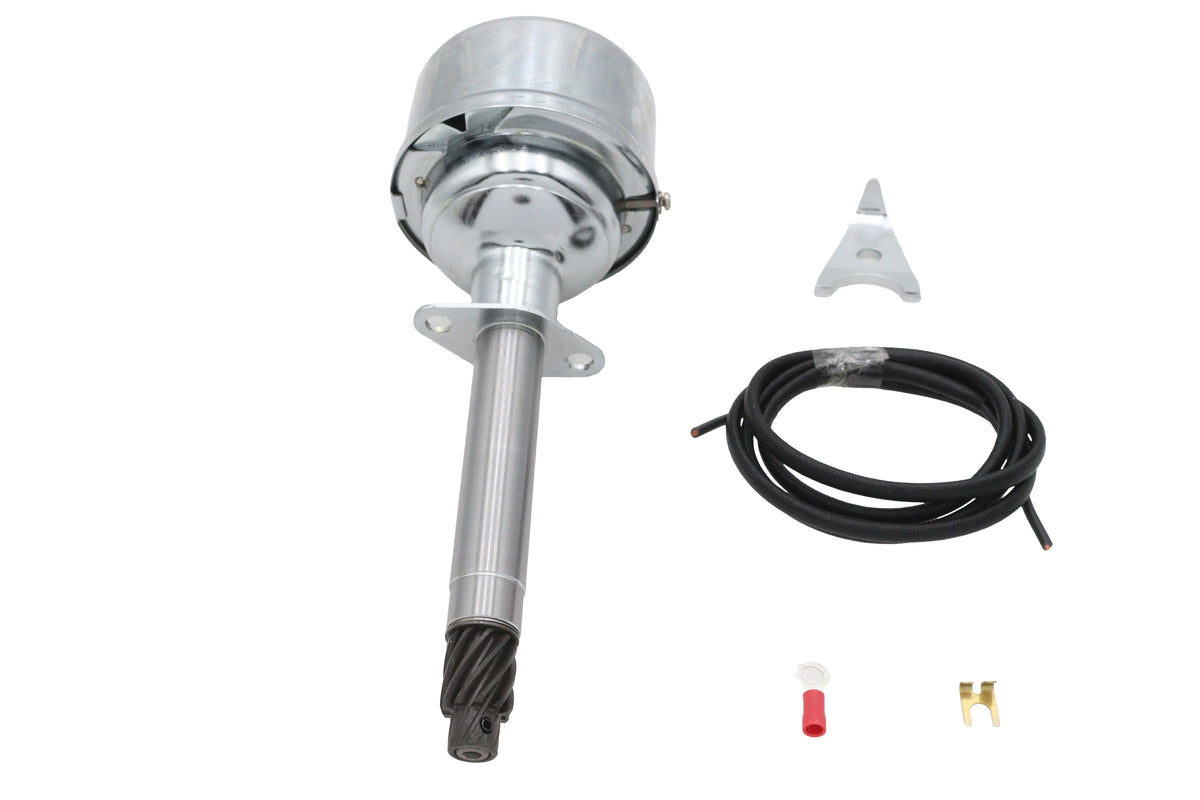

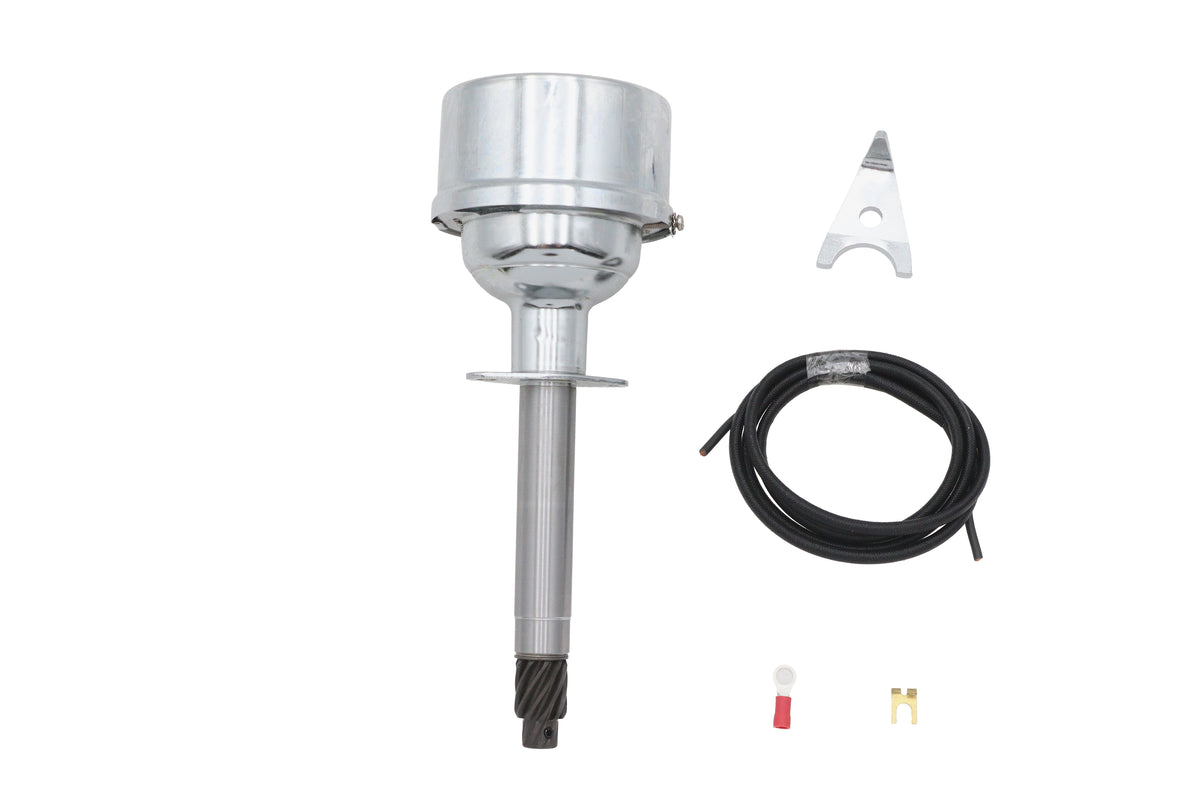

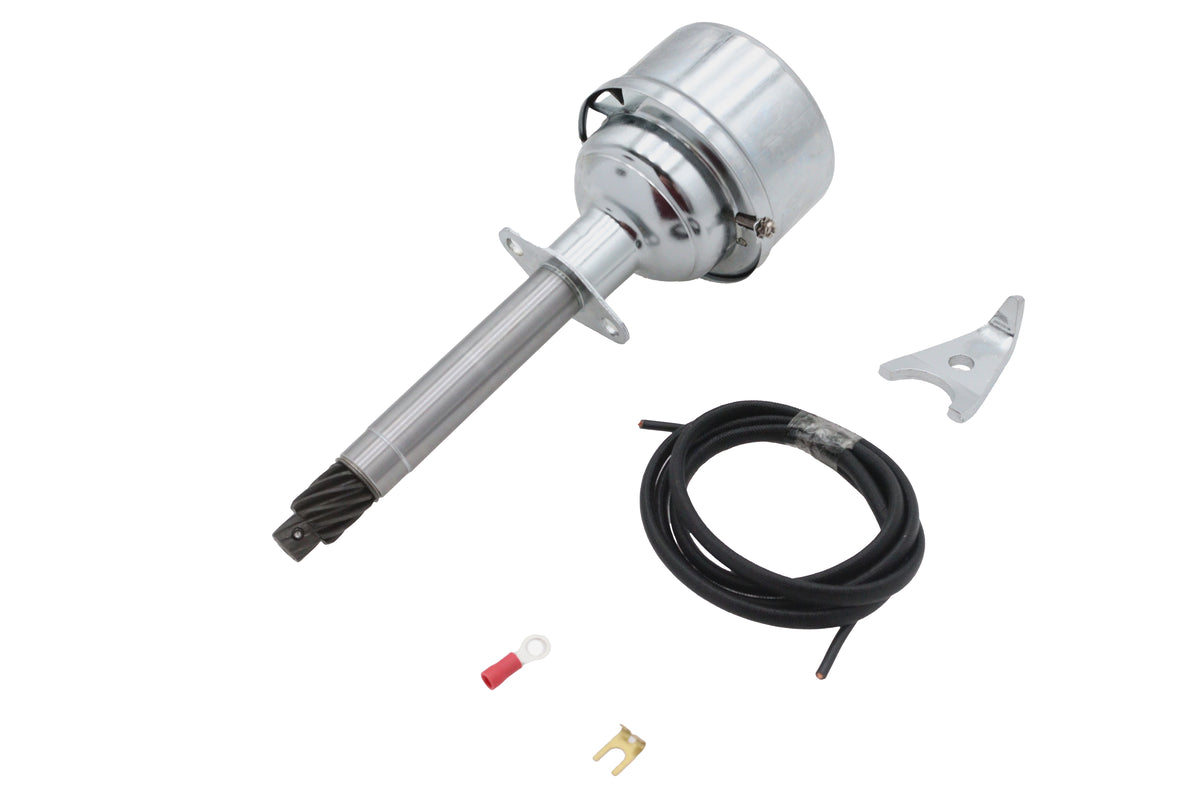

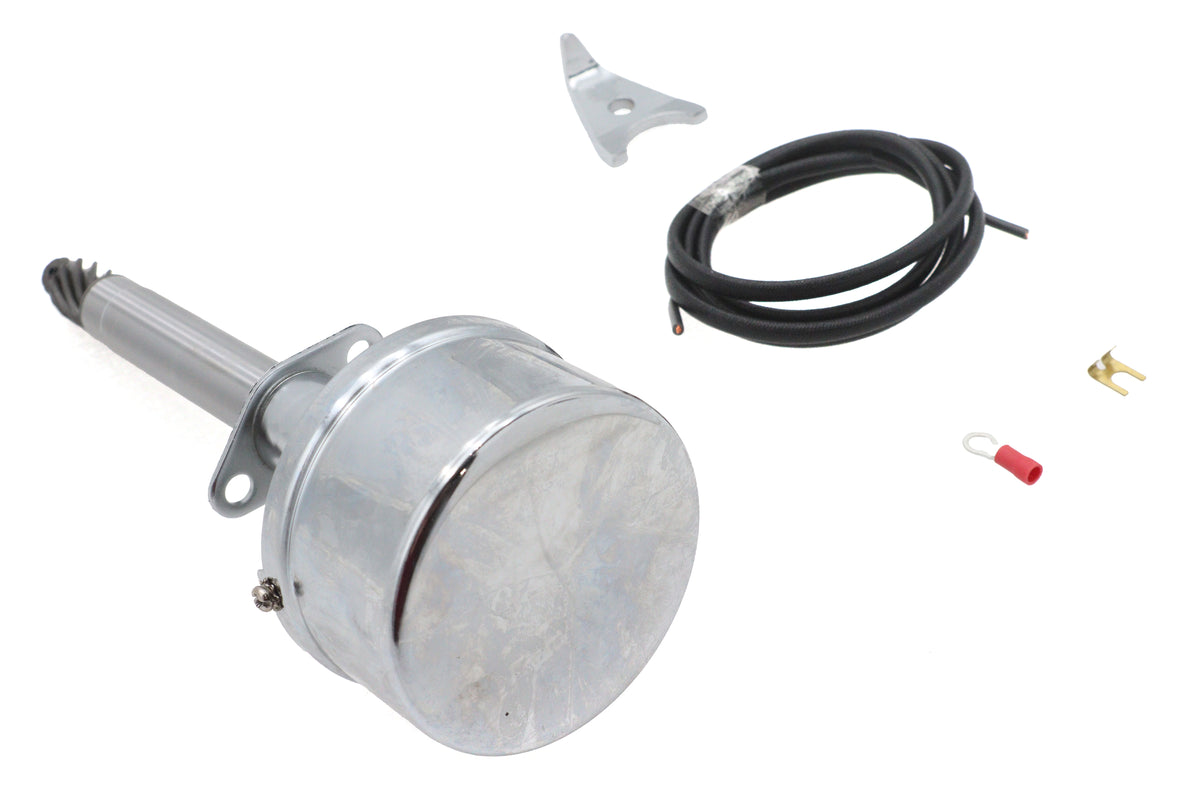

V-Fire auto advance distributor features a chrome body and top. Distributor is completely assembled with gear and all internal parts and features a two bolt flange. This is single point type with updated timing marks.

The V-Twin 74478D V-Fire Overhead Valve Auto Advance Distributor Chrome is designed for overhead-valve Big Twin models. This distributor features automatic advance and can be used to upgrade an existing ignition system or as part of a ground-up build. It eliminates the need for a left-hand spark advance control, allowing use of a snap throttle on the handlebar.

Installation requires removal of the front cylinder head. The points lead wire is not included and should exit through the slot in the distributor base, positioned toward the rear of the motorcycle. The updated points plate allows the wire to exit toward the rear. A hole in the plate can help with setting advance during timing. Points are positioned on the front side for easier adjustment; both cam lobes should open and close the points, with the skinny lobe timing the front cylinder. Refer to the service manual, as there is no mark on the cam, and timing must be set at cylinder top dead center.

Replacement ignition advance rotor and points plate assemblies, distributor lead wire, mount screw sets, advance points plates, and other related components are available separately. Suggested related components include V-Twin #32-7797 Ignition Advance with Points Plate Assembly, #42-0340 Chrome Distributor Cover, #8145-10 Chrome Circuit Breaker Screws, #8146-10 Cadmium Circuit Breaker Screws, #9684-10 Parkerized Distributor Screws, and #32-1623 Distributor Lead Wire. The manufacturer recommends updating the points set with #32-0156 Blue Streak Ignition Point Set.

This distributor fits 1936–1940 Harley-Davidson EL and 1941–1945 Harley-Davidson FL models.

Features:

• Application: For overhead-valve Big Twin models.
• Advance Type: Features automatic advance.
• Finish: Chrome finish.
• Control Requirement: Eliminates the need for a left-hand spark advance control.
• Installation: Front cylinder head must be removed for installation.
• Points Access: Points are positioned on the front side for easier adjustment.
• Points Lead: Points lead wire is not included and should exit toward the rear of the motorcycle.
• Timing: Must be timed at cylinder top dead center; refer to the service manual.
• Fitment: Fits 1936–1940 Harley-Davidson EL and 1941–1945 Harley-Davidson FL models.

Fitment:
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson FL 1965
