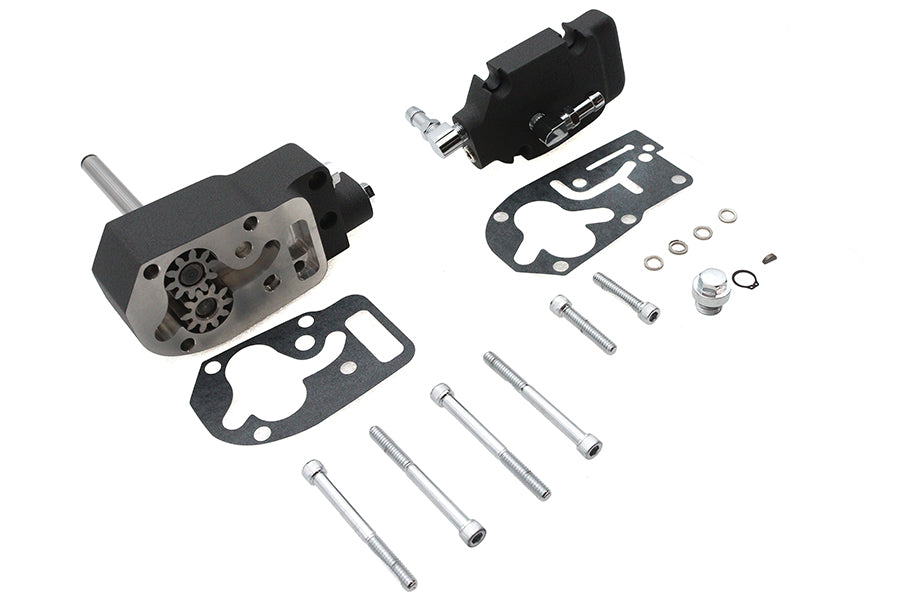

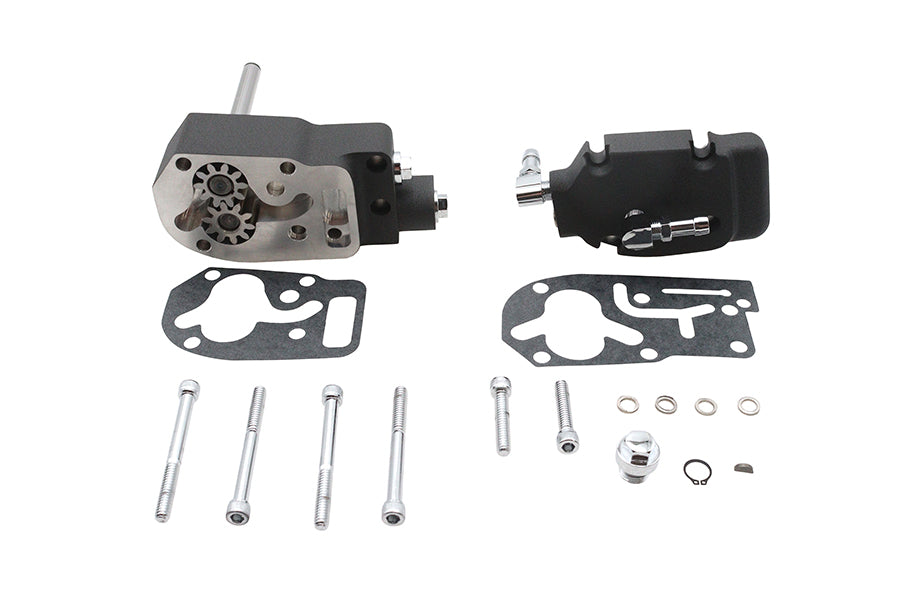

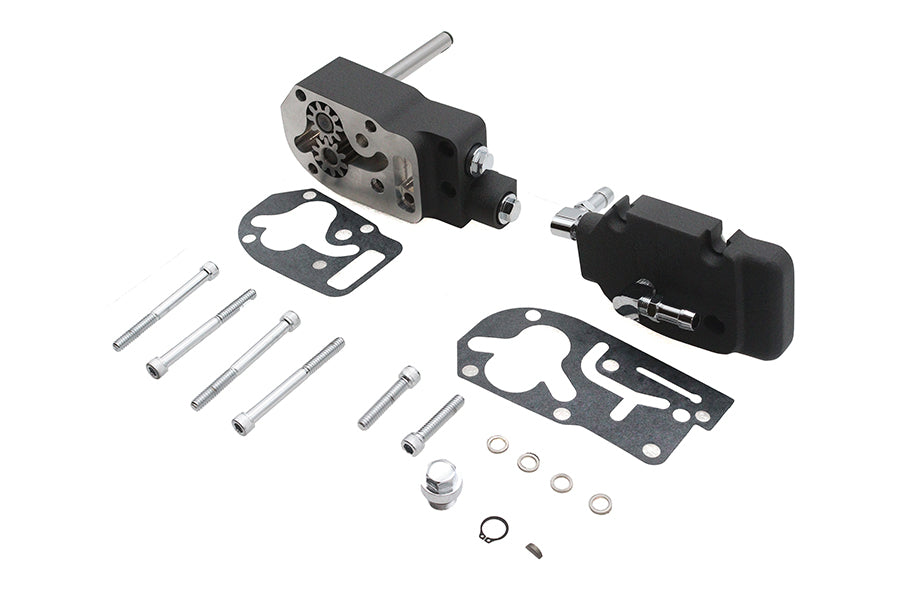

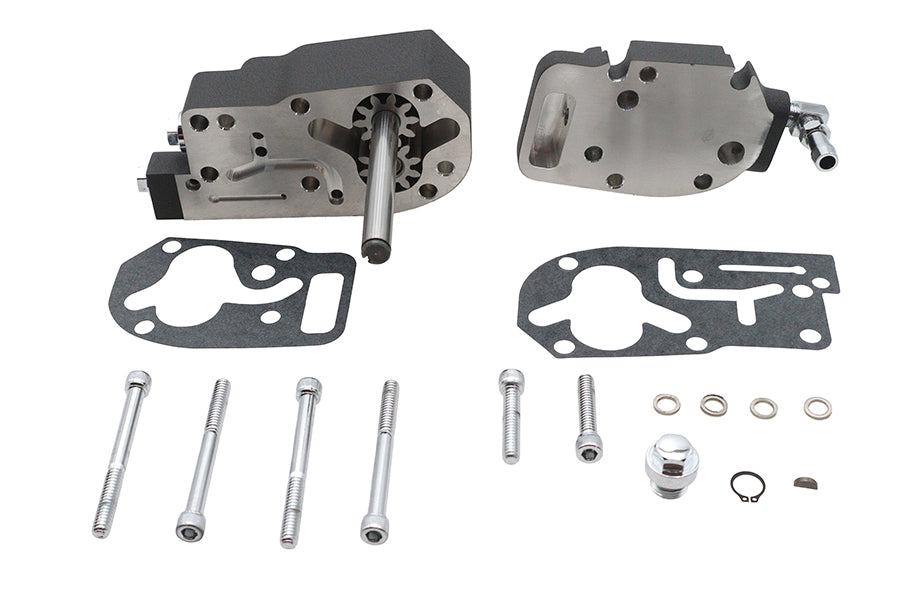

Ultima 98-520 Oil Pump Assembly, Wrinkle Black

Ultima high output volume oil pump has a wrinkle black finish and performs with greater potential for pressures and volume. Includes gaskets oil/drain plug snap ring shaft key and screws with washers.

The Ultima 98-520 Oil Pump Assembly in wrinkle black is designed to feed at the bottom end at idle speeds while maintaining consistent oil flow throughout the RPM range. This helps prevent bottom-end bearings from floating during operation.

The assembly is listed for select Harley-Davidson applications, including 1992 Harley-Davidson FLST, 1993 Harley-Davidson FXR, 1994 Harley-Davidson FXD and FXST, 1995 Harley-Davidson FXST, 1996 Harley-Davidson FLT, 1998 Harley-Davidson FLST, FXD and FLT, and 1999 Harley-Davidson FXD models. Verify the application before ordering.

Manufactured in the USA, the Ultima 98-520 oil pump assembly is supplied as an individual unit. Its wrinkle black finish provides the stated appearance for installation and restoration applications.

Features:

• Oil Pump Design: Feeds the bottom end at idle speeds.
• Flow Consistency: Maintains consistent flow throughout the RPM range.
• Bearing Protection: Helps prevent bottom-end bearings from floating.
• Finish: Wrinkle black.
• Application: Fits select Harley-Davidson FXD, FLST, FXST, FXR and FLT models from 1992 through 1999.
• Country of Origin: USA.
• Accessory Items: 12-8624 - Ultima Oil Pump Check Ball Retaining Pin, 12-8515 - Ultima Oil Pump Assembly Polished, 12-8517 - Ultima Oil Pump Assembly Polished

Fitment:
Harley Davidson FLST 1992
Harley Davidson FLST 1993
Harley Davidson FLST 1994
Harley Davidson FLST 1995
Harley Davidson FLST 1996
Harley Davidson FLST 1997
Harley Davidson FLST 1998
Harley Davidson FLST 1999
Harley Davidson FLT 1992
Harley Davidson FLT 1993
Harley Davidson FLT 1994
Harley Davidson FLT 1995
Harley Davidson FLT 1996
Harley Davidson FLT 1997
Harley Davidson FLT 1998
Harley Davidson FLT 1999
Harley Davidson FXD 1992
Harley Davidson FXD 1993
Harley Davidson FXD 1994
Harley Davidson FXD 1995
Harley Davidson FXD 1996
Harley Davidson FXD 1997
Harley Davidson FXD 1998
Harley Davidson FXD 1999
Harley Davidson FXR 1992
Harley Davidson FXR 1993
Harley Davidson FXR 1994
Harley Davidson FXST 1992
Harley Davidson FXST 1993
Harley Davidson FXST 1994
Harley Davidson FXST 1995
Harley Davidson FXST 1996
Harley Davidson FXST 1997
Harley Davidson FXST 1998
Harley Davidson FXST 1999
