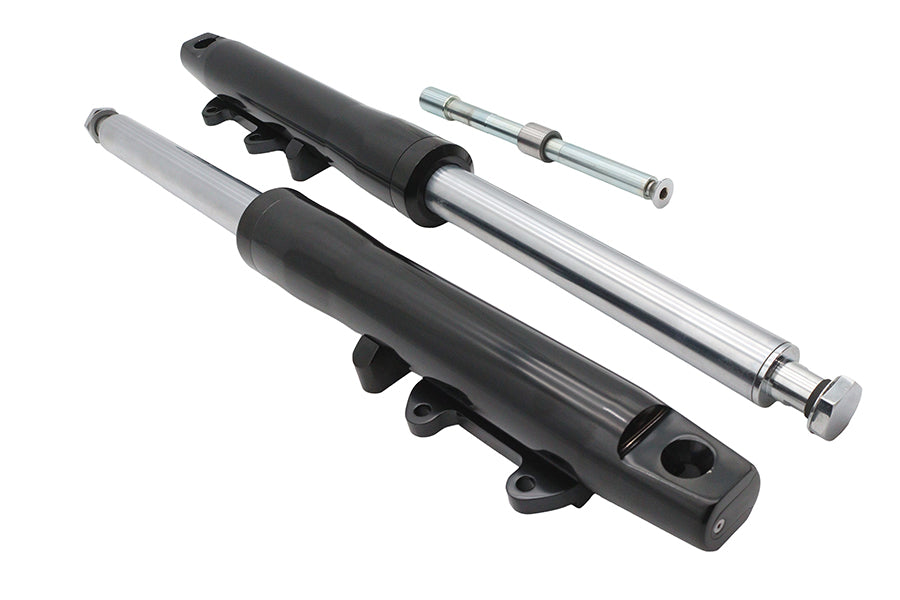

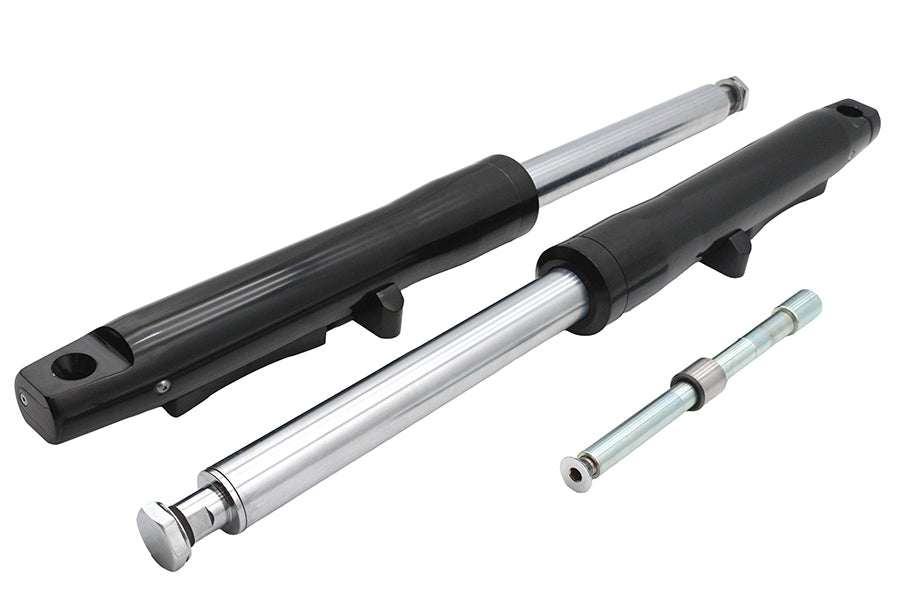

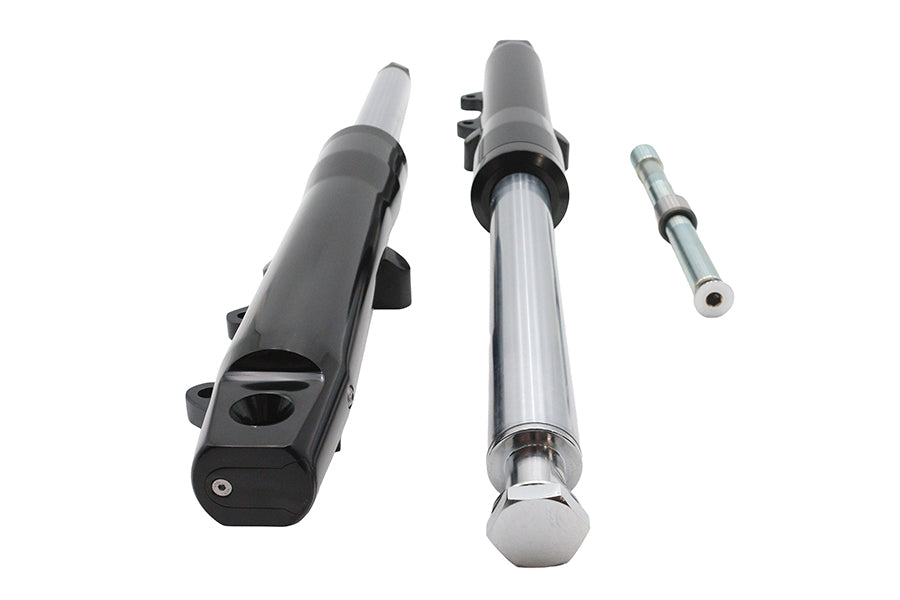

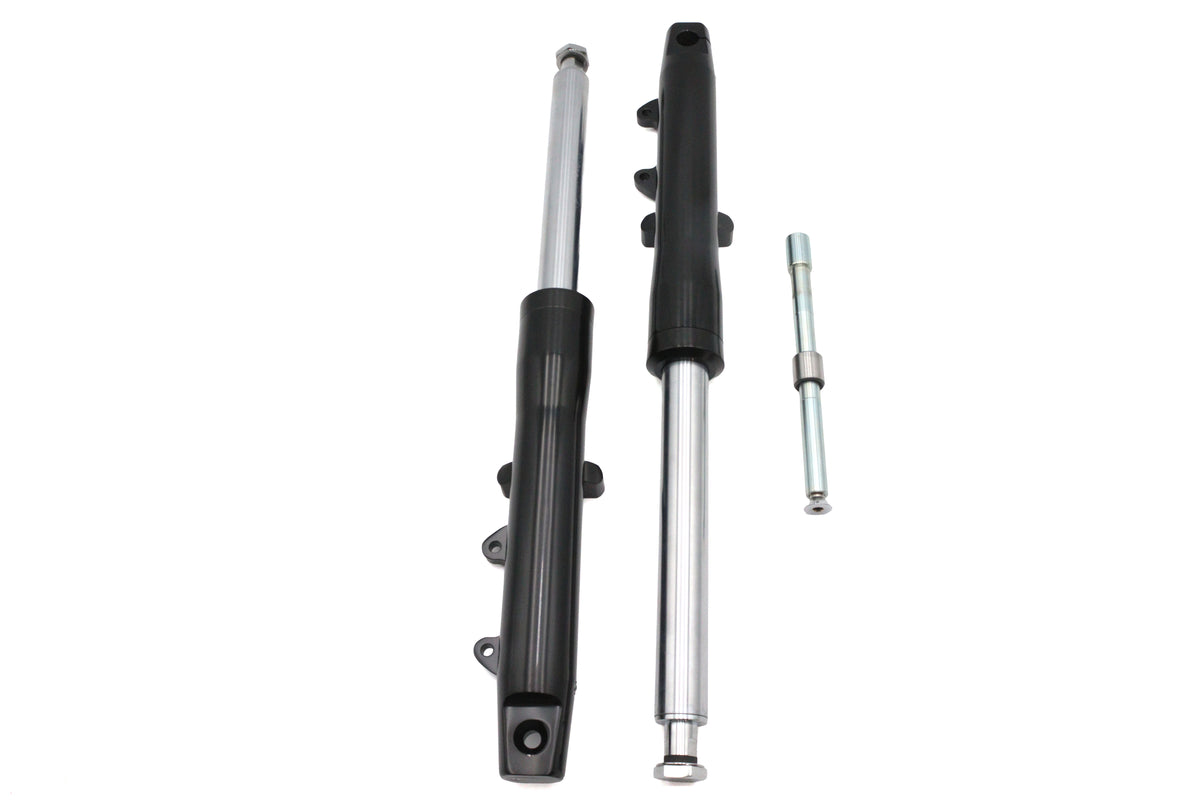

Ultima 117-248 41mm Billet Fork Slider Assembly, 4-Inch

Fork tubes are centerless ground 4140″ hard chrome finish with smooth black billet lower legs completely assembled with internal components.

The Ultima 117-248 41mm Billet Fork Slider Assembly features smooth black billet lower legs in a 1984-up FXST-style tube assembly. Its convertible-style legs accommodate both single- and dual-disc brake configurations, while the flush-mount-style axle design provides a clean installation appearance. Billet block-off plates conceal the damper screw holes.

These fork sliders can be rebuilt with OEM components. Fork slider assemblies are measured from the top of the tube to the center of the axle, and the stock length is 31-1/2 inches. The assembly is supplied as a set.

For service, drain the assembly lubricant before use. Ultima recommends 20-weight oil for average conditions, with 10.2 ounces of fork oil per leg. The Ultima 117-248 is listed for select Harley-Davidson FXST applications, including model years 1984 through 1995 and 1998 as specified in the fitment data.

Features:

• Brand: Ultima
• Part Number: 117-248
• Construction: Smooth black billet lower legs
• Tube Assembly: 1984-up FXST style
• Brake Configuration: Convertible-style legs for single- and dual-disc brakes
• Axle Design: Flush-mount style axle
• Block-Off Plates: Billet plates conceal damper screw holes
• Serviceability: Rebuildable with OEM components
• Measurement Reference: Measured from the top of the tube to the center of the axle
• Stock Length: 31-1/2 inches
• Oil Recommendation: 20-weight oil for average conditions
• Oil Quantity: 10.2 ounces of fork oil per leg
• Unit of Measure: Set

Fitment:
Harley Davidson FXST 1984
Harley Davidson FXST 1985
Harley Davidson FXST 1986
Harley Davidson FXST 1987
Harley Davidson FXST 1988
Harley Davidson FXST 1989
Harley Davidson FXST 1990
Harley Davidson FXST 1991
Harley Davidson FXST 1992
Harley Davidson FXST 1993
Harley Davidson FXST 1994
Harley Davidson FXST 1995
Harley Davidson FXST 1996
Harley Davidson FXST 1997
Harley Davidson FXST 1998
Harley Davidson FXST 1999
