S&S Cycle 31-6200 Oil Pump Assembly

S&S billet oil pump assembly for 1936-1972 Big Twin models.

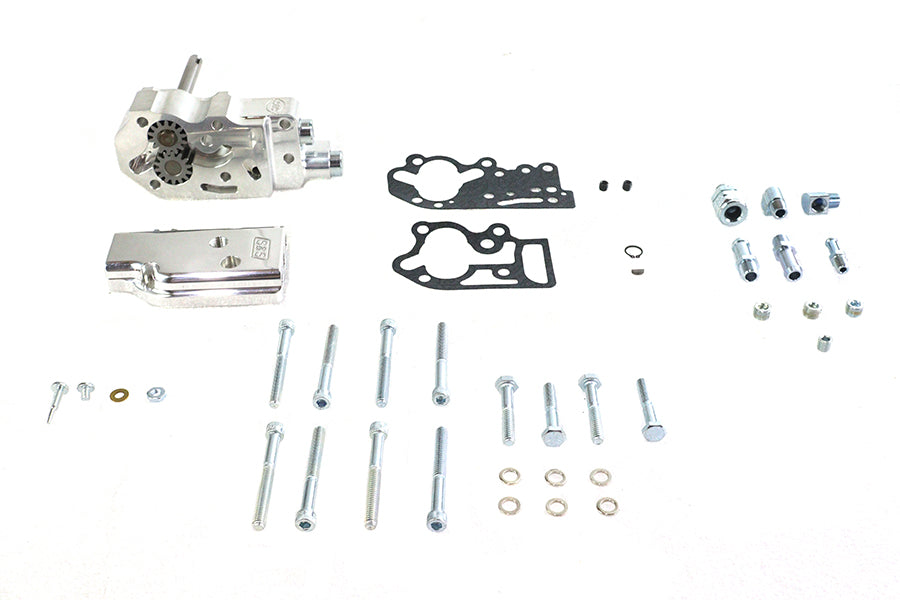

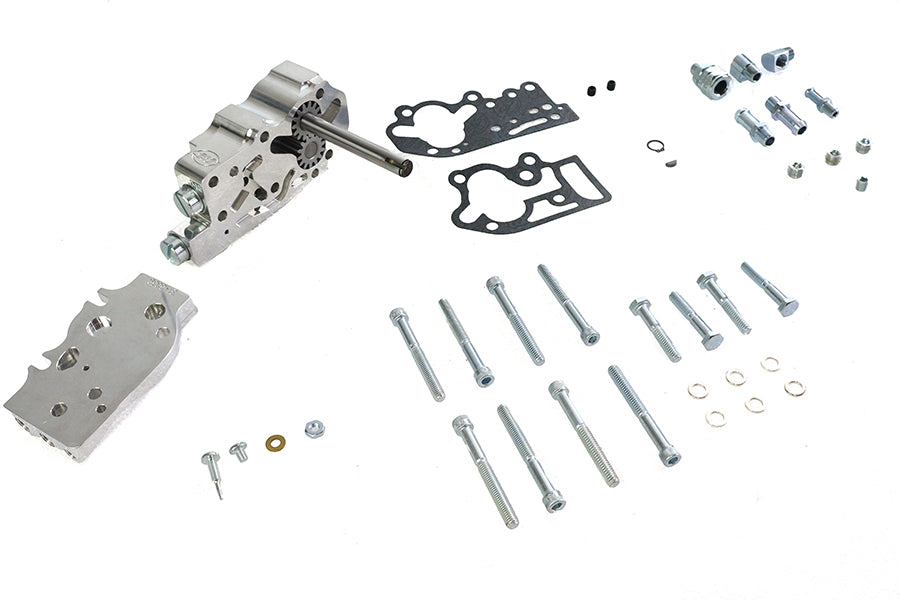

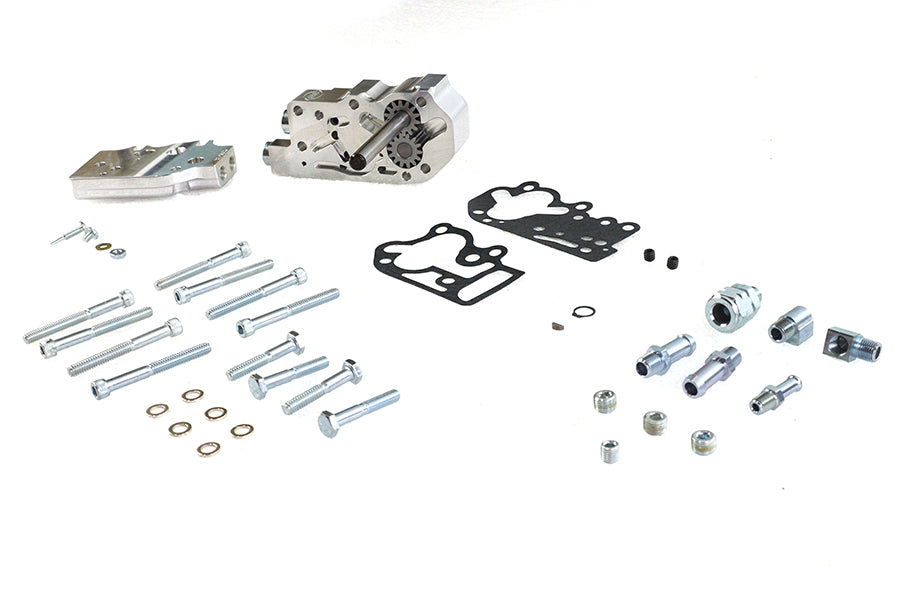

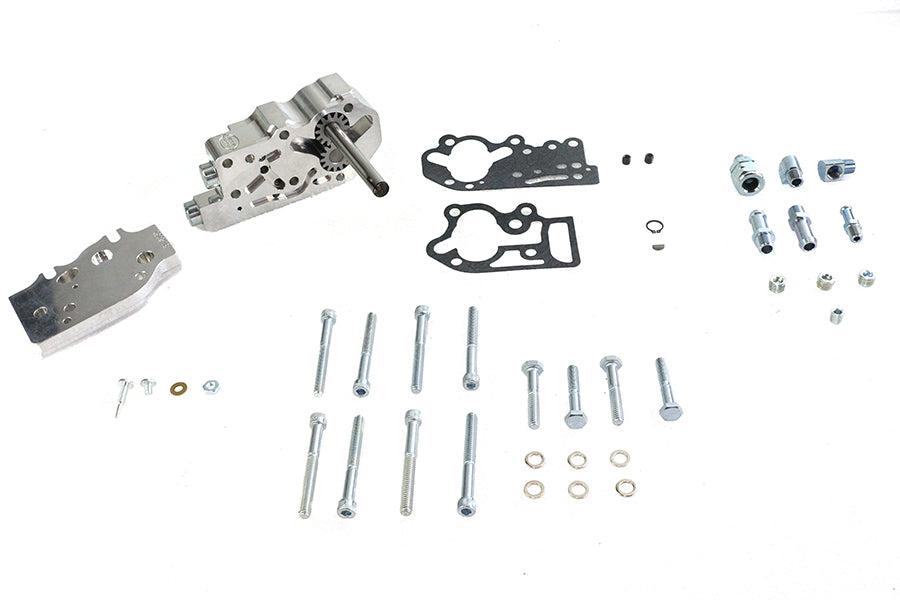

The S&S Cycle 31-6200 Oil Pump Assembly includes the components needed for assembly, including supply gears, return gears, a drive shaft, drive shaft keys, drive shaft snap rings, a check ball, check ball spring, pressure valve, pressure valve spring, cover screws with O-rings, hose fittings, plugs, screws, paper gaskets, and mounting hardware.

This oil pump assembly fits 1936–1940 Harley-Davidson EL models and 1941–1945 Harley-Davidson FL models. The oil line is available separately. S&S Cycle suggests using this assembly with the #40-0171 Rigid Oil Line Set for Billet Pump or the #40-0884 Rigid Oil Line Set for Billet Pump, zinc-plated.

The S&S Cycle 31-6200 Oil Pump Assembly has a unit of measure of each and is manufactured in the USA. Recommended accessory tools include the 16-1843 Factory Style Oil Pump Drill Jig Tool, 16-0889 Oil Pump Snap Ring Installer, 16-0875 Tappet Oil Screen Plug Tool for 1970–1999 Big Twin, and 16-9724 Oil Pressure Sender Unit Wrench Tool.

Features:

• Brand and Part Number: S&S Cycle 31-6200
• Assembly Components: Includes supply gears, return gears, drive shaft, drive shaft keys, drive shaft snap rings, check ball, check ball spring, pressure valve, pressure valve spring, cover screws with O-rings, hose fittings, plugs, screws, paper gaskets, and mounting hardware
• Fitment: Fits 1936–1940 Harley-Davidson EL and 1941–1945 Harley-Davidson FL models
• Oil Line: Available separately
• Suggested Oil Line Sets: Compatible use is suggested with #40-0171 Rigid Oil Line Set for Billet Pump and #40-0884 Rigid Oil Line Set for Billet Pump, zinc-plated
• Country of Origin: USA
• Unit of Measure: Each

Fitment:
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson FL 1965
Harley Davidson FL 1966
Harley Davidson FL 1967
Harley Davidson FL 1968
Harley Davidson FL 1969
Harley Davidson FL 1970
Harley Davidson FL 1971
Harley Davidson FL 1972
Harley Davidson Fx 1971
Harley Davidson Fx 1972
