Motorshop 22-0783 Kick Starter Kit, Polished

Kick starter kit includes all assembly components and features a polished finish.

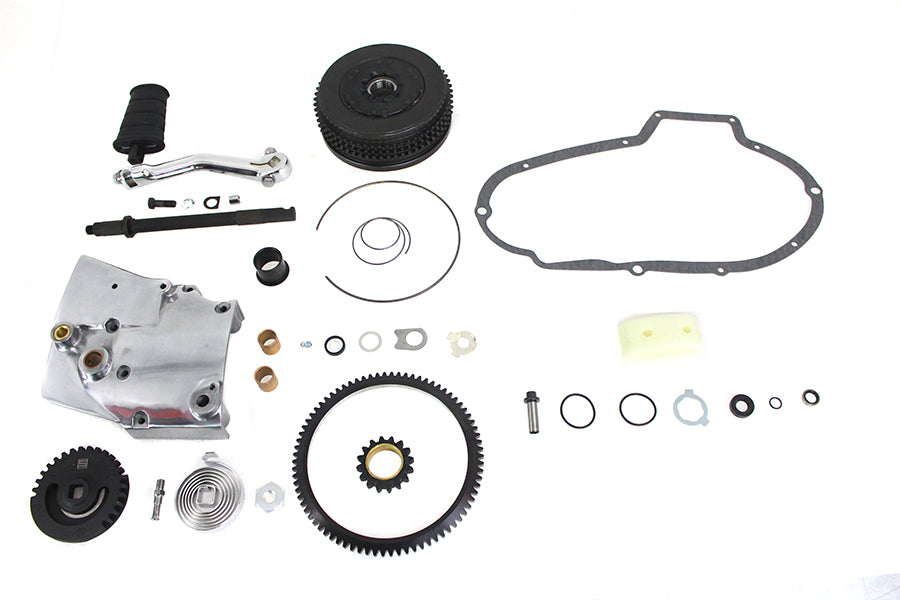

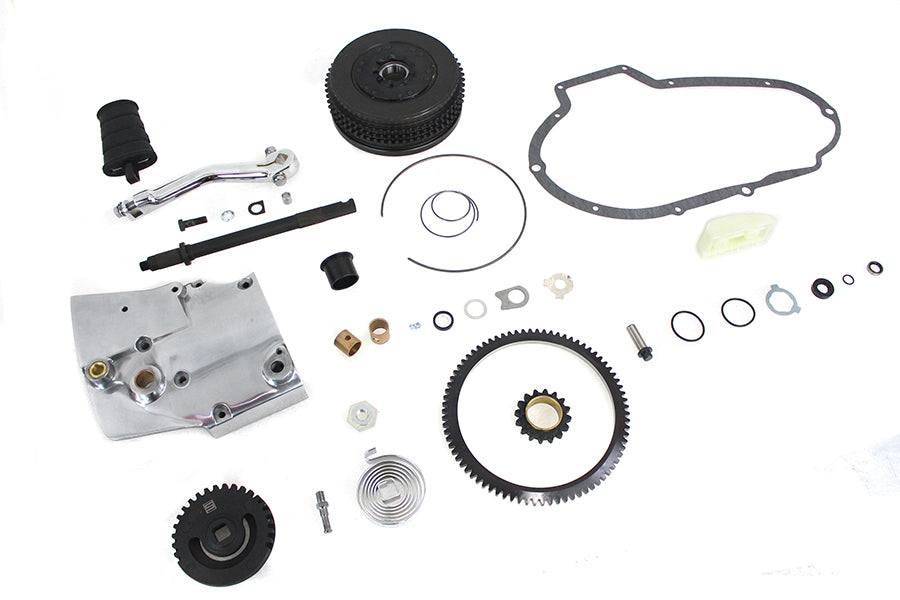

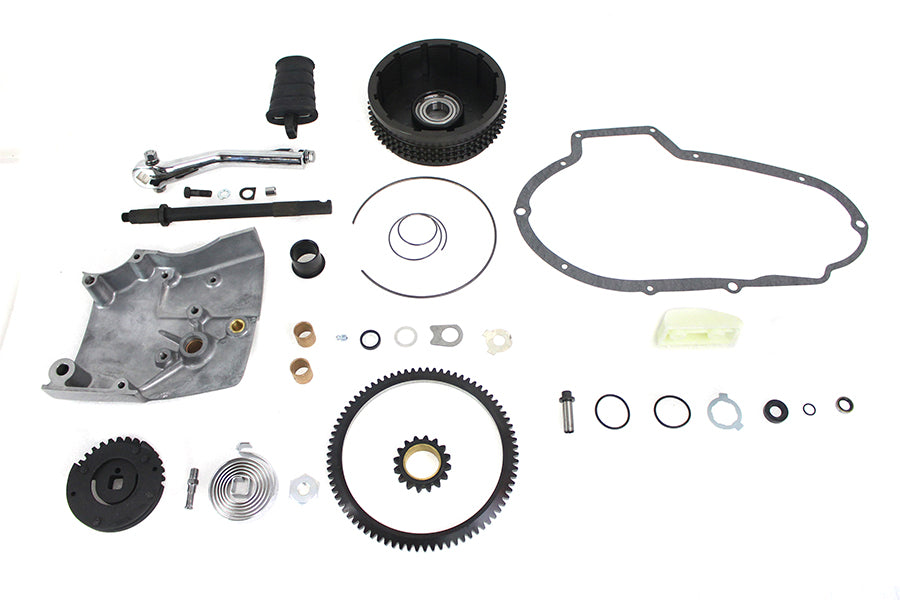

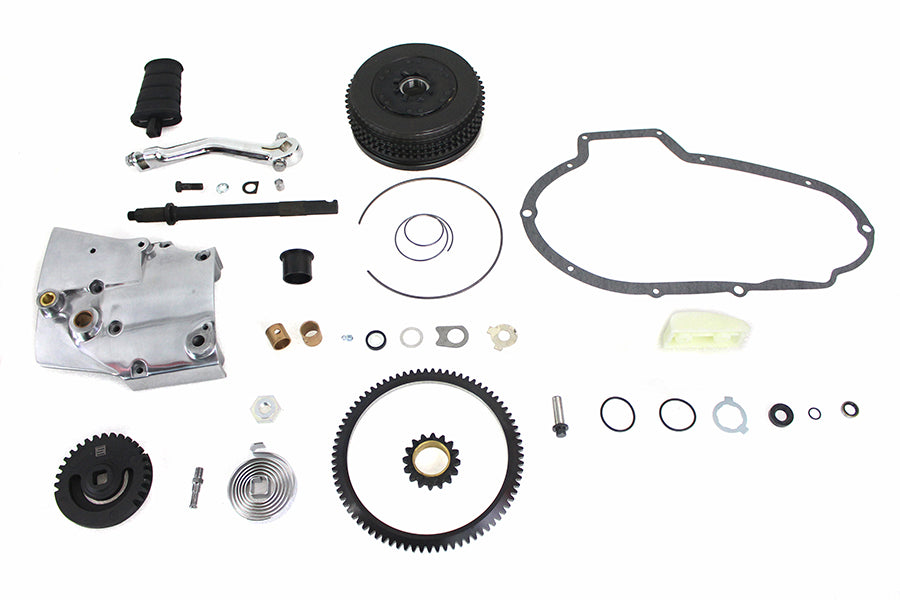

The Motorshop 22-0783 Kick Starter Kit is a polished kit for 1980–1984 Harley-Davidson XL models. It includes a kick starter cover, clutch drum with the ratchet gear riveted into place, kick starter shaft, and drill template.

Installation requires drilling the left side of the engine case for the kick starter shaft bushing and gear stop pin. The drill template includes pilot and finish drill specifications, but drill bits are not supplied. Accurate drilling is required, and a separate drilling fixture must be ordered. Follow the photos and instructions in the early Sportster service manual.

With forward controls, the rear brake master cylinder must be moved forward. The kit is supplied as a complete kit for the stated application. Suggested related items include a polished sprocket cover, chrome kick starter arm, primary cover gaskets, and a 1981–1984 XL clutch drum.

Features:

• Brand and SKU: Motorshop 22-0783
• Finish: Polished
• Kit Contents: Kick starter cover, clutch drum with ratchet gear riveted into place, kick starter shaft, and drill template
• Installation Requirement: Requires drilling for the kick starter shaft bushing and gear stop pin in the left side engine case
• Drilling Fixture: A separate fixture is required for installation
• Drill Bits: Pilot and finish drill bits are not supplied
• Brake Clearance: The rear brake master cylinder must be moved forward when using forward controls
• Fitment: 1980–1984 Harley-Davidson XL models
• Accessory Items: 17-0301 - Kick Starter Flat Rubber Pedal, 17-1102 - Clutch Gear Spacer, 17-1113 - Kick Starter Thrust Plate, 17-0911 - Kick Starter Lock Tab, 17-1114 - Kick Starter Crankshaft

Fitment:
Harley Davidson XL 1980
Harley Davidson XL 1981
Harley Davidson XL 1982
Harley Davidson XL 1983
Harley Davidson XL 1984
