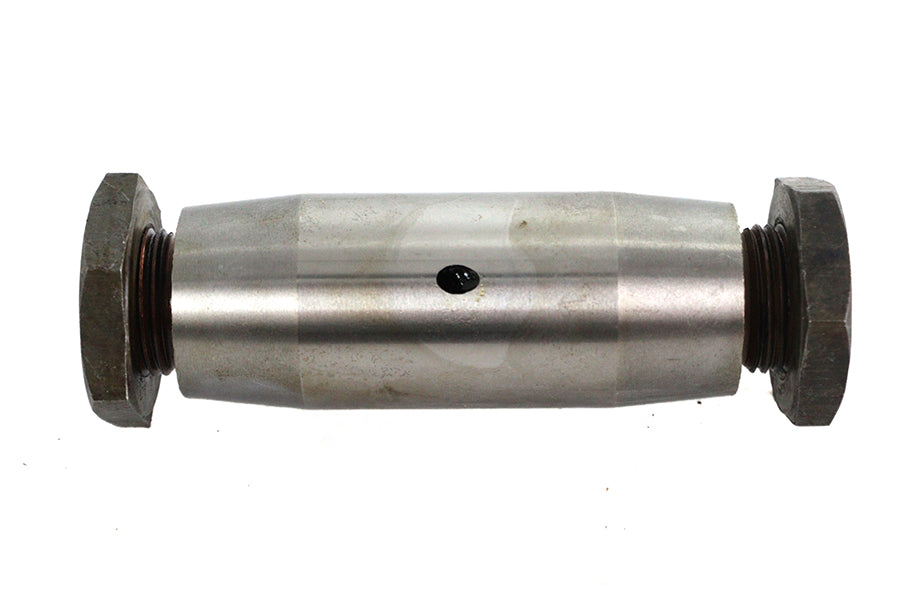

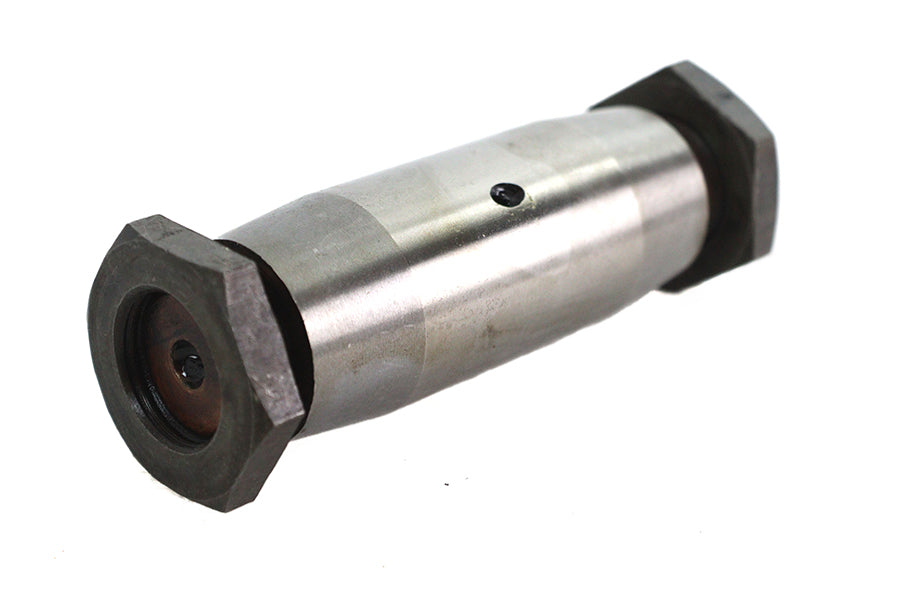

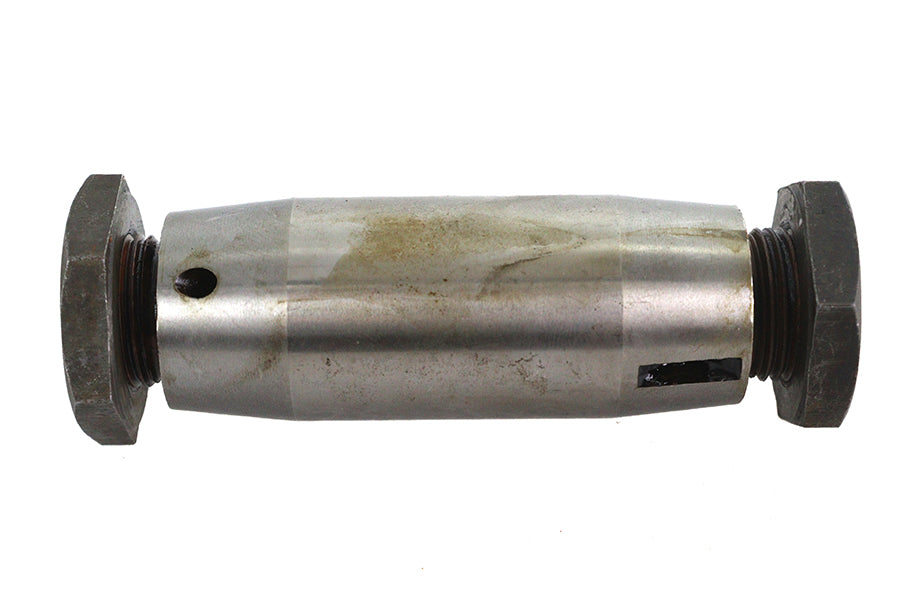

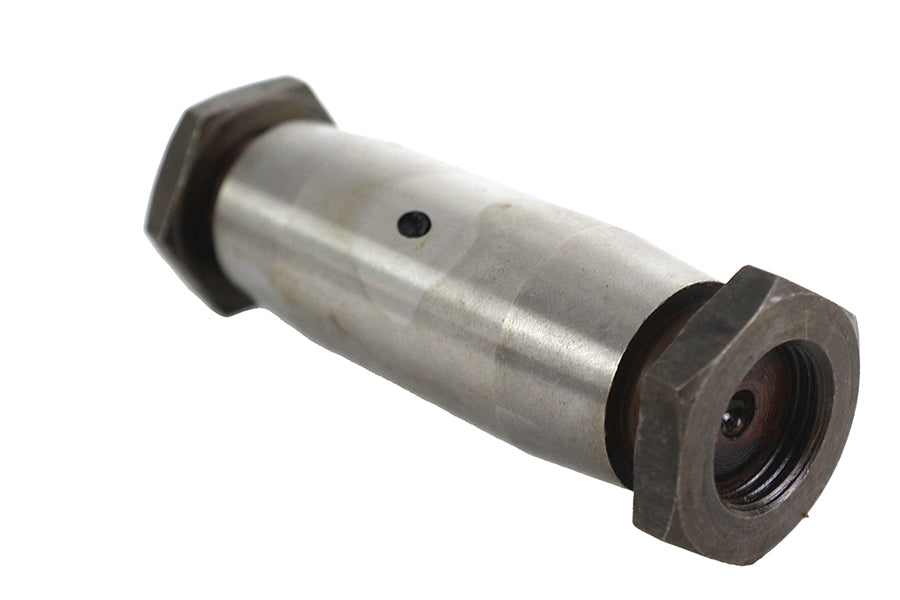

Eastern 10-0685 1-Hole Crank Pin with Nuts

New Old Stock inch 1-hole crank pin with nuts is original Army Surplus used on 45 inch models.

The Eastern 10-0685 1-Hole Crank Pin with Nuts is designed for applications using OEM flywheels with differing oil-feed hole locations. The crank pin includes two oil-feed holes to accommodate both early and later flywheel configurations. Proper alignment of the oil feed in the flywheels with the crank pin is required during installation.

This crank pin is coated with wax and cosmoline oil, which must be carefully removed with a razor blade before installation. The distance measured from the edge, excluding the threads, is 2.516 inches. Verify the oil-feed location and application before installation. The Eastern 10-0685 fits the listed Harley-Davidson G and W applications.

Accessory items include the Motor Sprocket Shaft Key, Crank Pin Nut and Lock Kit, 1-Hole Sifton Crank Pin, and Pinion/Sprocket 45-inch Shaft Nut.

Features:

• Design: 1-hole crank pin with nuts
• Oil Feed: Includes two oil-feed holes for early and later flywheel configurations
• Installation: Align the flywheel oil feed with the crank pin
• Preparation: Remove the wax and cosmoline oil coating carefully with a razor blade
• Measurement: 2.516 inches from the edge, excluding the threads
• Fitment: Fits the listed 1940, 1942, 1951, 1958, 1964, 1968, 1969, and 1973 Harley-Davidson G applications and 1944, 1945 Harley-Davidson W applications
• Brand: Eastern
• Part Number: 10-0685

Fitment:
Harley Davidson G 1937
Harley Davidson G 1938
Harley Davidson G 1939
Harley Davidson G 1940
Harley Davidson G 1941
Harley Davidson G 1942
Harley Davidson G 1943
Harley Davidson G 1944
Harley Davidson G 1945
Harley Davidson G 1946
Harley Davidson G 1947
Harley Davidson G 1948
Harley Davidson G 1949
Harley Davidson G 1950
Harley Davidson G 1951
Harley Davidson G 1952
Harley Davidson G 1953
Harley Davidson G 1954
Harley Davidson G 1955
Harley Davidson G 1956
Harley Davidson G 1957
Harley Davidson G 1958
Harley Davidson G 1959
Harley Davidson G 1960
Harley Davidson G 1961
Harley Davidson G 1962
Harley Davidson G 1963
Harley Davidson G 1964
Harley Davidson G 1965
Harley Davidson G 1966
Harley Davidson G 1967
Harley Davidson G 1968
Harley Davidson G 1969
Harley Davidson G 1970
Harley Davidson G 1971
Harley Davidson G 1972
Harley Davidson G 1973
Harley Davidson W 1937
Harley Davidson W 1938
Harley Davidson W 1939
Harley Davidson W 1940
Harley Davidson W 1941
Harley Davidson W 1942
Harley Davidson W 1943
Harley Davidson W 1944
Harley Davidson W 1945
Harley Davidson W 1946
Harley Davidson W 1947
Harley Davidson W 1948
Harley Davidson W 1949
Harley Davidson W 1950
Harley Davidson W 1951
Harley Davidson W 1952
